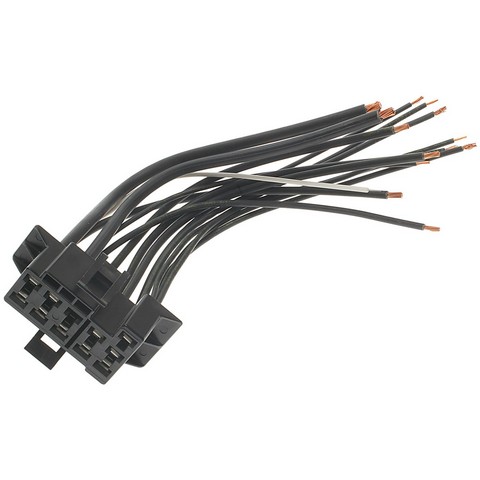

Standard Ignition S-756 switch for the 1980-1999 Ford F-800 and other vehicles is a pigtail connector that links the ignition starter switch to the vehicle wiring. It comes factory-assembled with its own wiring harness.
- Weatherproof sealed, weather resistant plastic connector housing
- Factory-assembled pigtail with a 7.5 in (190.5 mm) wiring harness

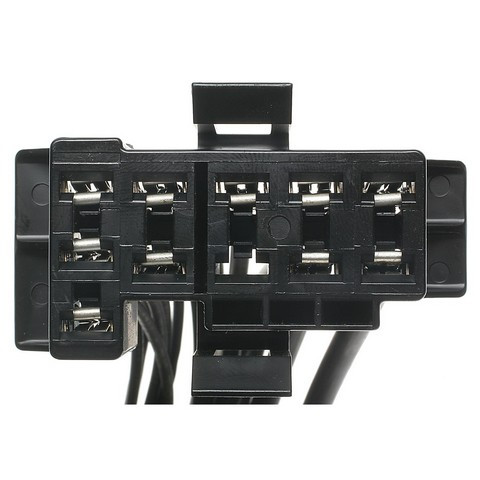

- Ten female blade terminals with metal contacts
- Push-on attachment to the ignition starter switch
- Checked and tested at every stage of production
Quick facts
- Part: Standard Ignition S-756 switch
- Fits: 1980-1999 Ford F-800 and other vehicles
- Material: Plastic
- Condition: New
A cracked or melted housing, burnt or corroded terminals, or on-and-off starting can mean a worn connector. With the engine off, look at the housing and terminals first. A weak battery, a faulty starter or the switch itself can also produce a no-crank, so find the cause before replacing this connector; a shop can test the circuit.
Fits
It is listed for a wide range of Ford, Lincoln and Mercury models, including the 1980-1998 Ford F-700 and the 1980-1994 Ford B-600; the quantity per vehicle is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Wiring harness length: 7.5 in (190.5 mm)
- Terminals: 10
- Wire gauge: 12, 18, 20 ga
- Connector shape: Rectangle
Build and materials
- Contents: Pigtail assembly
- Material: Plastic
- Contact terminal material: Metal
- Terminal type: Blade, female
- Attachment method: Push on
- Weatherproof sealed: Yes
- Condition: New
- Country of origin: United States
In the box
One pigtail connector assembly with its wiring harness. Splice connectors and a dust shield are not included.
Installation notes
- Factory-assembled pigtail with a push-on attachment.
- No specialized tools are needed.
Interchange: PT5700 · 644 · EC209 · 3U2Z14S411KA · F6HZ14A464FUA · WPT320
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
PT5700, 644, EC209, 3U2Z14S411KA, F6HZ14A464FUA, WPT320
Frequently Asked Questions
Does the Standard Ignition S-756 fit a 1980-1999 Ford F-800?
Yes, Standard Ignition S-756 is listed for the 1980-1999 Ford F-800. If your vehicle is a different model, look it up in the "Vehicles it fits" section.
Is this Standard Ignition switch pigtail weatherproof?
Yes. Standard Ignition S-756 is weatherproof sealed and weather resistant, with a plastic housing and metal contact terminals.
Are splice connectors included with this pigtail connector?
No. This pigtail connector comes with its 7.5 in (190.5 mm) wiring harness, but splice connectors and a dust shield are not included.
How many terminals and what wire gauge does this connector have?
This connector has 10 female blade terminals, and the wire gauges are 12, 18 and 20. The housing is rectangular and attaches push on.
Does S-756 replace number 3U2Z14S411KA?
Yes. Standard Ignition S-756 is listed as a replacement for number 3U2Z14S411KA, along with the other numbers on the Interchange line.
