Starter Solenoid for 1996-1997 Mazda MPV & More - Standard Ignition SS-488

$129.99

Vehicles this part fits

    Part number: SS-488
    UPC: 091769524173
    Condition: New
    Weight: 1.50 LBS
    Item Package Quantity: 1
    $129.99
    Adding to cart… The item has been added

    Have questions?

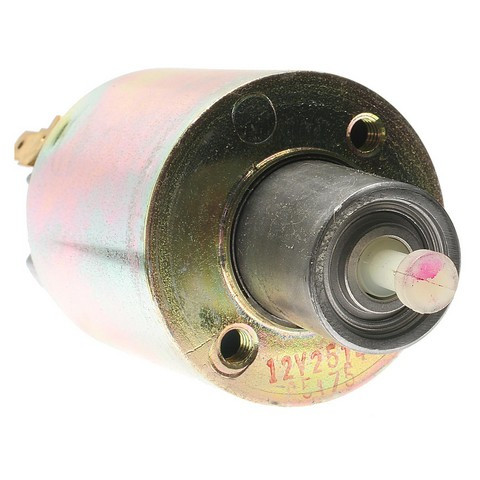

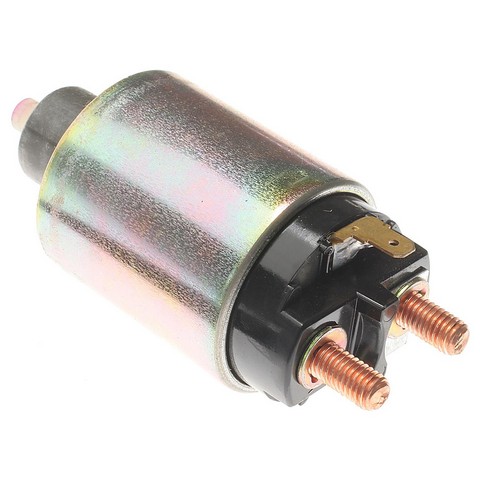

    Standard Ignition Starter Solenoid P/N:SS-488
    Standard Ignition Starter Solenoid P/N:SS-488
    $129.99
    $129.99

    Standard Ignition SS-488 starter solenoid for the 1996-1997 Mazda MPV V6 3.0L and other vehicles sends full battery power to the starter. It closes the high-current circuit between the battery and the starter motor when you turn the key.

    • Polyester-insulated magnet wire, cadmium-plated copper discs and solid contact bolts reduce voltage drop and guard against electrical overload
    • Heavy-duty copper contacts reduce the effect of arcing and extend solenoid life
    • Pure copper windings create a stronger magnetic field
    • Pure copper battery terminal studs reduce resistance to permit higher current flow, even in the hottest environments

    Quick facts

    • Part: Standard Ignition SS-488 starter solenoid
    • Fits: 1996-1997 Mazda MPV V6 3.0L and other vehicles
    • Condition: New

    A starter that only clicks, cranks slowly or does not respond at the key can have several causes. Before you replace this solenoid, rule out a weak battery, loose or corroded cable ends and the starter motor itself; a shop can test the starter circuit.

    Fits

    This starter solenoid fits the 1996-1997 Mazda MPV V6 3.0L and the 1994 Mazda MX-3 4-cylinder 1.6L, and each takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Voltage: 12 V
    • Length: 2.17 in (55.118 mm)
    • Mounting holes: 2
    • Lug hole diameter: 0.18 in (4.572 mm)
    • Terminals: 3

    Build and materials

    • Terminal type: stud and blade, male
    • Finish: dichromate, plastic
    • Condition: New
    • Country of origin: Japan

    In the box

    One starter solenoid. Mounting hardware, a mounting bracket and a spring are not included, so plan on new fasteners rather than reusing old ones.

    Interchange: S35134 · SS507 · ST581 · KL3618X10 · M371X95475

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    S35134, SS507, ST581, KL3618X10, M371X95475, SS-488

    Frequently Asked Questions

    Does the Standard Ignition SS-488 starter solenoid fit the 1994 Mazda MX-3 4-cylinder 1.6L?

    Yes. Standard Ignition SS-488 is listed for the 1994 Mazda MX-3 4-cylinder 1.6L, and that car takes one solenoid.

    Does the Standard Ignition SS-488 come with mounting hardware or a bracket?

    No. This Standard Ignition SS-488 listing is one starter solenoid; mounting hardware, a mounting bracket and a spring are not included.

    What voltage and terminals does this starter solenoid have?

    This starter solenoid is a 12 V unit. It has three male terminals of the stud and blade type, plus two mounting holes.

    What can a click with no cranking mean on a starter solenoid?

    A click with no crank, slow cranking or no response at the key can each have more than one cause. A shop can test the starting circuit to find which part is at fault.

    Are the contacts and terminal studs on this starter solenoid copper?

    Yes. The contacts are heavy-duty copper, and the battery terminal studs and windings are pure copper.
