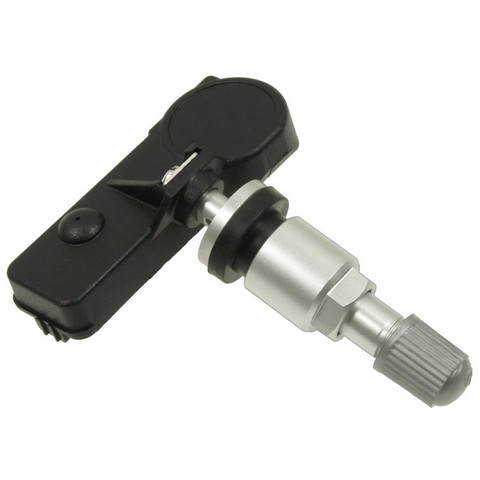

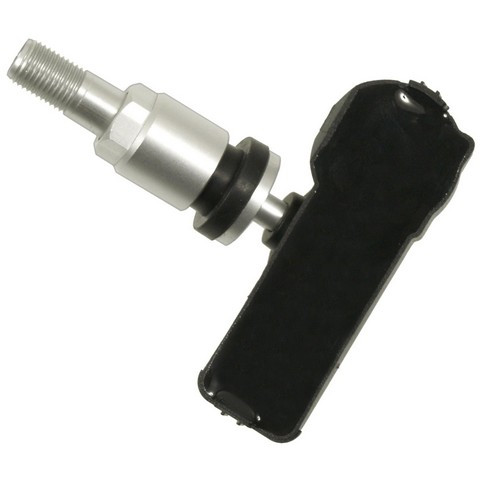

Standard Ignition Tire Pressure Monitoring System (TPMS) Sensor P/N:TPM149A

Tire Pressure Monitor Sensor

• Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications
• External-crystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers

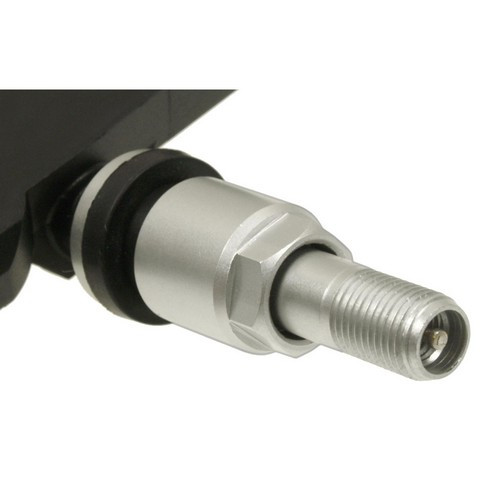

• Fully assembled with nickel-plated valve core and aircraft-grade 6061 aluminum clamp-in valve stem to prevent premature breaking and resist galvanic corrosion
• Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels
• Military-grade lithium battery ensures maximum battery life and sensor performance
• Pre-programmed at the factory with exact OE protocol, so it's ready to be installed and OE-relearned out of the box
• Unique ID Cloning functionality allows you to clone/copy unique ID from one sensor to another
• Validated at independent lab during 168-hour on-vehicle live test
• Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction
