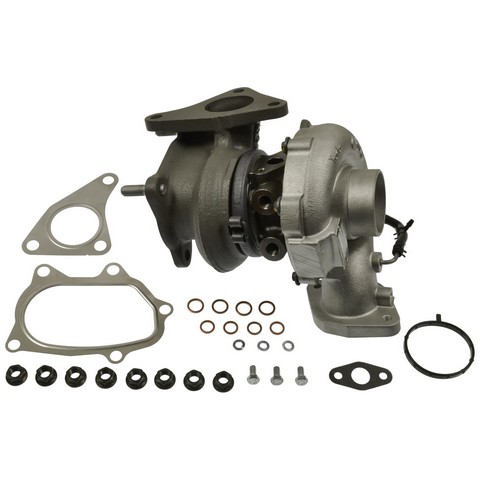

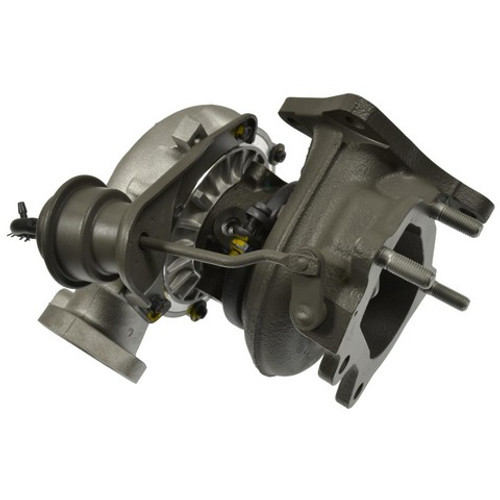

Standard Ignition TBC565 turbocharger for the 2005-2006 Subaru Outback H4 2.5L and other vehicles is a remanufactured unit that feeds compressed air to the engine. Exhaust flow spins its turbine, and the compressor wheel on the same shaft pushes more air into the intake.
- Each core is disassembled, cleaned and inspected against core quality guidelines before reassembly
- New rotating, journal and thrust bearings, with 100% of the seals replaced
- Mating surfaces and passages are reconditioned
- Wheels, shafts and cores are checked against tolerance specifications and reconditioned or replaced as needed
- Vacuum-operated wastegate valve included
Quick facts
- Part: Standard Ignition TBC565 turbocharger
- Fits: 2005-2006 Subaru Outback H4 2.5L and other vehicles
- Condition: Remanufactured
A worn turbocharger can show up as a loss of power, a whining noise or oil smoke from the exhaust. A boost leak from a split intake hose, a loose vacuum line or a clogged air filter can be behind these signs too, so find the cause before buying a replacement.
Fits
It is a direct-fit replacement for the 2005-2006 Subaru Outback H4 2.5L and the 2005-2006 Subaru Legacy H4 2.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Hose connectors: 2
Build and materials
- Condition: Remanufactured
- Fuel: Gas
- Center housing cooling: Water
- Appearance and finish may differ; fit and function remain the same
- Country of origin: United States
In the box
One turbocharger with its mounting hardware. The H4 2.5L in these cars runs one turbocharger, and this listing is one.
Installation notes
- A turbocharger installation kit comes with the unit for ease of installation.
Interchange: 2-551003 · 850-1065
287100 · 14411AA510 · 14411AA5109L · 14411AA511 · 14411AA51A · 14411AA51B
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
287100, 2-551003, 850-1065, TBC565, 14411AA510, 14411AA5109L, 14411AA511, 14411AA51A, 14411AA51B
Frequently Asked Questions
Does this turbocharger fit the 2005-2006 Subaru Legacy H4 2.5L?
Yes. Standard Ignition TBC565 is a direct-fit replacement turbocharger for the 2005-2006 Subaru Legacy H4 2.5L, which takes one.
Is this the right turbocharger for the 2005-2006 Subaru Outback H4 2.5L?
Yes. Standard Ignition TBC565 is listed for the 2005-2006 Subaru Outback H4 2.5L, and that engine takes one turbocharger.
Does this turbocharger come with a wastegate and an installation kit?
Yes. It includes a vacuum-operated wastegate valve, a turbocharger installation kit and mounting hardware.
Is the center housing on this remanufactured turbo water-cooled?
Yes. The center housing uses water cooling, and the unit has 2 hose connectors.
What is replaced inside a remanufactured Standard Ignition TBC565 turbocharger?
Standard Ignition TBC565 gets new rotating, journal and thrust bearings and all-new seals, and its mating surfaces and passages are reconditioned.
