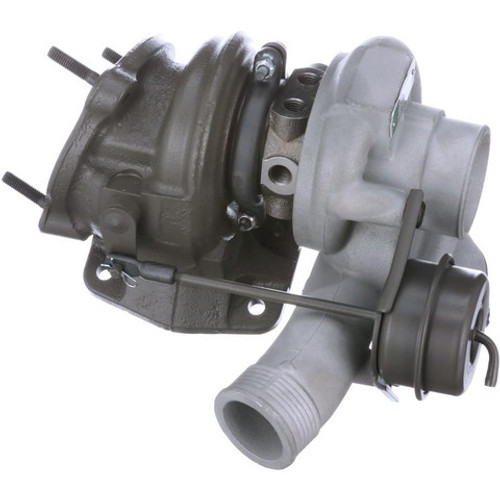

Standard Ignition TBC571 turbocharger for the 2003-2009 Volvo S60 5-cylinder 2.5L and other vehicles uses exhaust flow to compress the air going into the engine. This remanufactured unit is supplied with the installation kit for the job.
- Each unit is fully disassembled to its core assembly, then cleaned and inspected against core quality guidelines before reassembly
- New rotating, journal and thrust bearings, with all seals replaced
- Mating surfaces and passages are reconditioned
- Wheels, shafts and cores are checked against tolerance specification, then reconditioned or replaced as needed
- Includes a vacuum-operated wastegate valve
Quick facts
- Part: Standard Ignition TBC571 turbocharger
- Fits: 2003-2009 Volvo S60 5-cylinder 2.5L and other vehicles
- Condition: Remanufactured
Loss of power, a whining noise or oil smoke from the exhaust can be signs of a worn turbocharger. Before you replace it, rule out leaking boost hoses, a stuck wastegate and other engine faults, since several problems produce these symptoms. If a failed turbocharger is the cause, this unit replaces it.
Fits
Vehicles it fits include the 2003-2006 Volvo XC90 5-cylinder 2.5L, the 2007 XC90 6-cylinder 3.2L or V8 4.4L and the 2003-2007 Volvo V70 5-cylinder 2.5L, and each takes one turbocharger.
Specifications
Fit and size
- Quantity per vehicle: 1
- Compressor inlet outside diameter: 61.468 mm
- Compressor outlet outside diameter: 52.07 mm
- Hose connectors: 2
Build and materials
- Condition: Remanufactured
- Center housing cooling: water
- Geometry type: fixed
- Wastegate type: external
- Country of origin: United States
In the box
One turbocharger with a turbocharger installation kit, gaskets, seals, mounting hardware and a vacuum-operated wastegate valve. Not included: wastegate actuator, speed sensor, temperature sensor, other sensors, exhaust manifold, oil supply line and exhaust brake.
Interchange: 2-551009 · 850-1071
287106 · 36002369 · 36012378 · 8602627 · 8603226
This part cross-references / interchanges with the following part numbers:
287106, 2-551009, 850-1071, TBC571, 36002369, 36012378, 8602627, 8603226
Frequently Asked Questions
Is this the turbocharger for a 2003-2006 Volvo XC90 5-cylinder 2.5L?
Yes. Standard Ignition TBC571 fits the 2003-2006 Volvo XC90 5-cylinder 2.5L and the 2007 XC90 6-cylinder 3.2L or V8 4.4L, one per vehicle.
Is this a turbocharger for the 2003-2007 Volvo V70 5-cylinder 2.5L?
Yes, the 2003-2007 Volvo V70 5-cylinder 2.5L takes Standard Ignition TBC571, one per vehicle. If your Volvo is another model, look for it in the "Vehicles it fits" section.
Does the TBC571 come with gaskets and an installation kit?
Yes, the TBC571 turbocharger includes gaskets, seals, mounting hardware, the installation kit and a vacuum-operated wastegate valve, but not the wastegate actuator, sensors, exhaust manifold or oil supply line.
Is the center housing on this Standard Ignition turbocharger water-cooled?
Yes. TBC571 has a water-cooled center housing, a fixed geometry type and an external wastegate type.
Which internal parts are new on the Standard Ignition TBC571?
This remanufactured turbocharger has new rotating, journal and thrust bearings, and its seals are fully replaced. Mating surfaces and passages are reconditioned.
