Standard Ignition VVT209 variable timing solenoid for the 2009-2012 Hyundai Genesis V8 4.6L and other vehicles directs engine oil to the cam phaser to adjust valve timing. Also called an engine variable timing solenoid, it is engineered specifically for Hyundai and Kia engines.
- Electromagnetic activation on a 12 V circuit
- Designed to help restore horsepower and torque curves while reducing emissions
- O-rings, where applicable, to help prevent premature oil leaks
- 100% end-of-line testing after an extensive design process
- Rectangular connector with two male blade terminals
Quick facts
- Part: Standard Ignition VVT209 variable timing solenoid
- Also called: engine variable timing solenoid
- Fits: 2009-2012 Hyundai Genesis V8 4.6L and other vehicles
- Material: Metal, Plastic (housing)
- Condition: New
A rough idle, weaker power or a check engine light can mean the solenoid is failing, but these signs alone do not prove it is the problem; low or dirty engine oil is another common cause.
Fits
This direct-fit replacement fits the 2009-2012 Hyundai Genesis V8 4.6L, the 2011 Hyundai Equus V8 4.6L and the 2009 Kia Borrego V8 4.6L. This listing is one solenoid; the Genesis and Equus take four, and the Borrego takes one.
Specifications
Fit and size
- Length: 28 mm
- Width: 28 mm (1.2 in)
- Height: 102.5 mm
- Shaft diameter: 18 mm (0.7 in)
- Connector: 1 rectangular female plug
- Terminals: 2 male blade terminals, 2 pins
Build and materials
- Activation type: Electromagnetic
- Voltage: 12 V
- Housing material: Metal, plastic
- Condition: New
- Country of origin: Japan
In the box
One variable timing solenoid. Gaskets and mounting hardware are not included; plan on new bolts rather than reusing the old ones.
Interchange: 35-1107
VV1109 · TS1106 · VVS1765 · 243553F301 · 3553F301
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV1109, TS1106, VVS1765, 243553F301, 3553F301, 35-1107, VVT209
Frequently Asked Questions
Does the Standard Ignition VVT209 fit the 2009 Kia Borrego V8 4.6L?
Yes. Standard Ignition VVT209 fits the 2009 Kia Borrego V8 4.6L, which takes one, and the 2009-2012 Hyundai Genesis V8 4.6L, which takes four.
Does this variable timing solenoid come with gaskets or bolts?
No. This variable timing solenoid comes on its own; gaskets and mounting hardware are not included, so plan on new bolts.

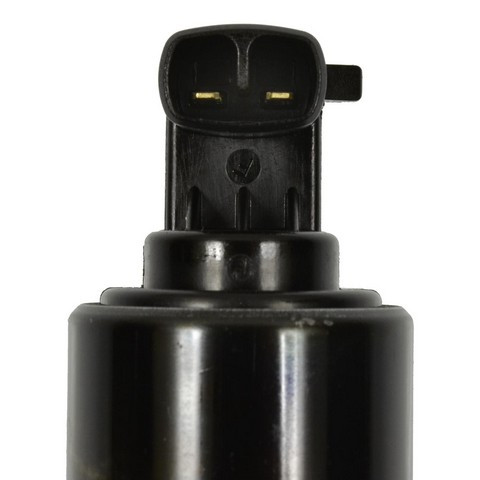

What kind of connector does the VVT209 solenoid have?
Standard Ignition VVT209 has one rectangular female connector with two male blade terminals. It is electromagnetically activated and runs on 12 V.
How can I tell if a VVT solenoid is going bad?
A rough idle, weaker power or a check engine light can go with a failing VVT solenoid. With the engine off and cool, look for oil leaks or damage at the connector; a shop can test the solenoid.
Is each Standard Ignition VVT209 solenoid tested?
Yes. Standard Ignition VVT209 goes through an extensive design process and 100% end-of-line testing to meet or exceed OE performance.
