Front Left Lower Control Arm with Ball Joint for 2015-2024 Ford Edge & More - Mevotech Supreme CMS401247

$226.99

Vehicles this part fits

    Part number: CMS401247
    UPC: 677319200768
    Condition: New
    Weight: 17.71 LBS
    Item Package Quantity: 1
    $226.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS401247
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS401247
    $226.99
    $226.99

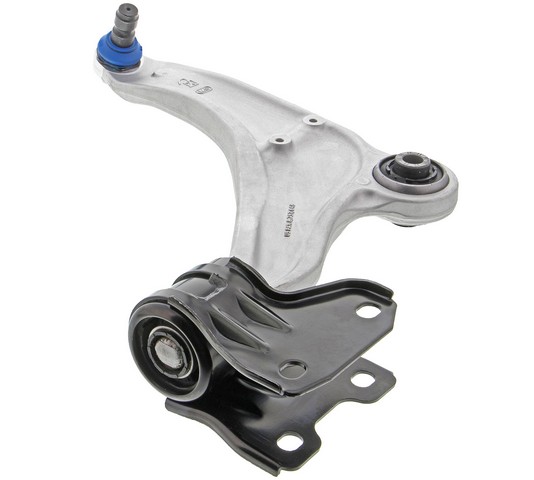

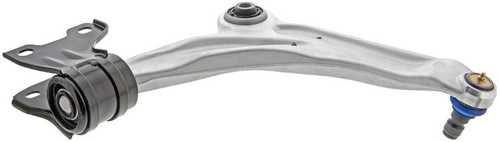

    Mevotech Supreme CMS401247 front left lower control arm with ball joint for the 2015-2024 Ford Edge and other vehicles connects the front left wheel to the chassis. This Mevotech Supreme control arm, sold as a control arm and ball joint assembly, includes bushings and a dust boot.

    • Patented BiMetallic technology: a greaseable sintered bearing built for high heat and high load on unitized aluminum control arms
    • Aluminum control arm with a thicker cross section for added durability
    • Additional surface treatment on the ball joint prevents rust build-up
    • Rubber bushings with a solid cross section for increased stiffness and durability
    • Pre-applied nylok thread adhesive keeps fasteners secure and vibration resistant
    • 180 degree SAE grease fitting makes servicing simpler

    Quick facts

    • Part: Mevotech Supreme CMS401247 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: the 2015-2024 Ford Edge and other vehicles
    • Position: front left lower
    • Material: aluminum
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can mean this arm or its ball joint is worn, though a worn sway bar link or a tired strut can be behind the same signs, so sort out which one it is before ordering.

    Fits

    As a 2015-2024 Ford Edge control arm, it is a direct-fit replacement, and it also fits the 2019-2024 Lincoln Nautilus and the 2016-2018 Lincoln MKX. This listing is one arm for the front left; the front right is a separate part, and the other side of that axle is normally done at the same time. A 2015-2024 Ford Edge takes one on the front left.

    Specifications

    Fit and size

    • Position: front left lower
    • Quantity per vehicle (this side): 1
    • Maximum width: 12.7 in
    • Maximum length: 10.75 in
    • Ball joint mounting type: press in
    • Ball joint stud type: grooved

    Build and materials

    • Control arm material: aluminum
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Greaseable: yes, with grease fitting included
    • Adjustable: no
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with ball joint, rubber bushings, dust boot and 180 degree grease fitting, plus an application-specific pinch bolt and locking nut.

    Installation notes

    • Comes pre-greased.
    • Labor Saver designs, tools and hardware are meant to make installation faster and easier.

    Interchange: 810-566284B · 622.65022 · 527-059
    19425942 · CA14833 · F2GZ3079A · F2GZ3079B · F2GZ3079C · F2GZ3079D · F2GZ3079H · MCF2335 · MCF2370 · MCF2464 · RK623491 · F2GZ3079G · F2GZ3079J · 2608672 · 30034806 · 9CB40627

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19425942, 810-566284B, 622.65022, 527-059, CA14833, F2GZ3079A, F2GZ3079B, F2GZ3079C, F2GZ3079D, F2GZ3079H, MCF2335, MCF2370, MCF2464, RK623491, F2GZ3079G, F2GZ3079J, CMS401247, 2608672, 30034806, 9CB40627

    Frequently Asked Questions

    Will the CMS401247 work as a lower control arm for the 2015-2024 Ford Edge?

    Yes. This Mevotech Supreme CMS401247 is the front left lower arm for the 2015-2024 Ford Edge, and it also fits the 2019-2024 Lincoln Nautilus and the 2016-2018 Lincoln MKX.

    What comes with this Mevotech Supreme lower control arm?

    The CMS401247 includes the ball joint, rubber bushings, dust boot and 180 degree grease fitting, plus an application-specific pinch bolt and locking nut.

    Is this Mevotech Supreme suspension control arm greaseable?

    Yes. The CMS401247 is greaseable through its 180 degree SAE grease fitting, and it comes pre-greased with a sintered metal bearing.

    What can a torn dust boot on a front lower control arm mean?

    A torn or split boot is a visible sign you can spot with the car parked. Without it, grease can escape and dirt can get in, so a shop should inspect the joint and arm promptly.

    Does the Mevotech Supreme CMS401247 replace number F2GZ3079A?

    Yes. F2GZ3079A is one of the numbers this Mevotech Supreme CMS401247 replaces, along with F2GZ3079B and 622.65022.
