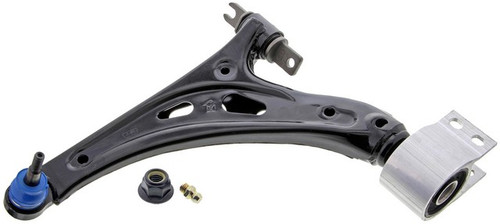

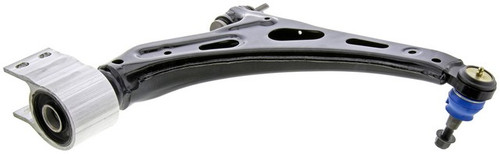

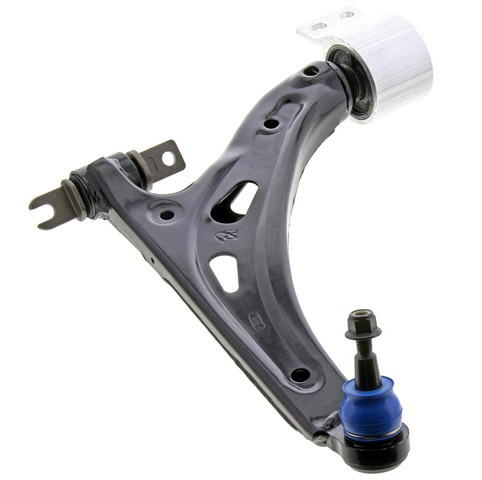

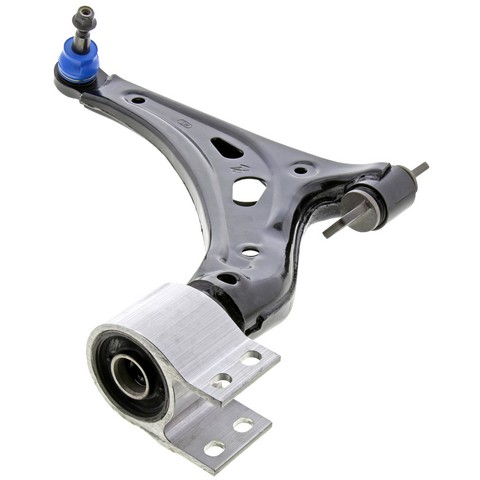

Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS861195
Mevotech Supreme CMS501280 front left lower control arm with ball joint for the 2017-2023 GMC Acadia and other vehicles connects the wheel to the chassis. The arm, bushings and ball joint come together in one assembly.
A clunk over bumps, wandering steering or uneven front tire wear can mean this arm or its ball joint is worn, though a worn sway bar link or strut mount can be behind those signs too.
This is a direct-fit replacement control arm for the 2017-2023 GMC Acadia and the 2017-2025 Cadillac XT5, built to meet OE specifications or better. This listing is one arm for the front left, and the 2017-2023 GMC Acadia takes one there; the front right is a separate part, and both sides are normally replaced together.
Fit and size
Build and materials

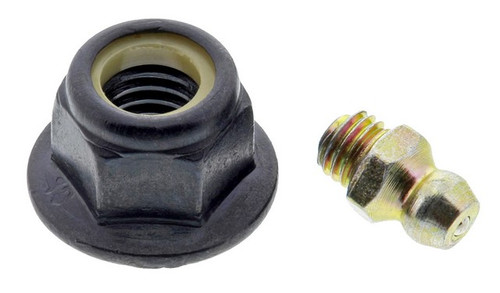

One control arm with ball joint, bushings, dust boot, SAE grease fitting, locking nut and mounting hardware.
Interchange: 19470669 · 84989529 · 84722073 · 23368656 · 84011415 · 84082889 · 84263005 · RK623740 · 2608778 · 9CB503217
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Will this front left control arm fit the 2017-2025 Cadillac XT5?
Yes. Mevotech Supreme CMS501280 is a front left lower control arm with ball joint that fits the 2017-2025 Cadillac XT5.
Does this control arm and ball joint assembly include the bushings and hardware?
Yes. It comes with the ball joint, rubber bushings, a neoprene dust boot, an SAE grease fitting, a locking nut and mounting hardware.
What is the Mevotech Supreme suspension control arm made of?
Mevotech Supreme CMS501280 has a steel control arm with rubber bushings, a sintered metal bearing and a neoprene dust boot.
Is the Mevotech Supreme control arm pre-greased?
Yes. This control arm comes pre-greased, and its ball joint can be greased later through the included SAE grease fitting.
Does this Mevotech Supreme lower control arm have a press-in ball joint?
Yes. The ball joint on this CMS501280 lower control arm is a press-in type with a threaded stud.
