Front Left Lower Control Arm with Ball Joint for 2011-2015 Hyundai Sonata & More - Mevotech Supreme CMS901180

$357.99

Vehicles this part fits

    Part number: CMS901180
    UPC: 669719375467
    Condition: New
    Weight: 11.56 LBS
    Item Package Quantity: 1
    $357.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS901180
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS901180
    $357.99
    $357.99

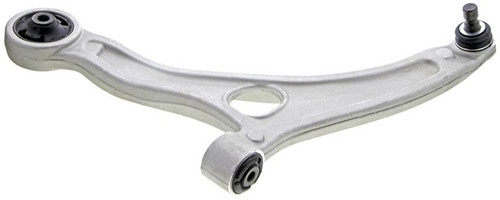

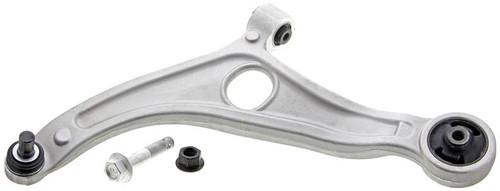

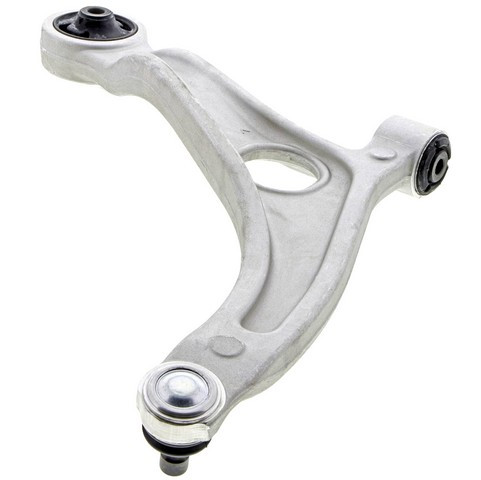

    Mevotech Supreme CMS901180 front left lower control arm with ball joint for the 2011-2015 Hyundai Sonata and other vehicles links the steering knuckle to the vehicle's chassis. This Mevotech Supreme control arm includes the ball joint and rubber bushings in one assembly.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades for durability and performance
    • Surface treatment on the ball joint helps prevent rust build-up
    • Application-specific pinch bolt and locking nut supplied for the ball joint
    • Aluminum arm with rubber bushings included
    • Extensive in-house and third-party durability testing

    Quick facts

    • Part: Mevotech Supreme CMS901180 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2011-2015 Hyundai Sonata and other vehicles
    • Position: Front left lower
    • Material: Aluminum
    • Condition: New

    A worn control arm can show up as a clunk over bumps, loose steering or uneven tire wear. With the engine off, look at the bushing rubber and the ball joint for cracks, tears or leaking grease, and work out what is causing the symptom before you replace the arm.

    Fits

    It is a direct-fit replacement control arm for the 2011-2015 Hyundai Sonata, the 2011-2016 Kia Optima and the 2015-2017 Hyundai Azera. This listing is one arm: the 2011-2015 Hyundai Sonata takes one on the front left, the front right is ordered separately, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front left lower
    • Quantity per vehicle: 1 for this side
    • Ball joint mounting type: press in
    • Ball joint stud type: grooved
    • Maximum width: 16.95 in
    • Maximum length: 16.45 in
    • Adjustable: no

    Build and materials

    • Control arm material: aluminum
    • Bushing material: rubber, bushings included
    • Fasteners: pinch bolt and locking nut included
    • Condition: new
    • Country of origin: Turkey

    In the box

    One control arm with ball joint and rubber bushings, plus the pinch bolt and locking nut.

    Installation notes

    • The ball joint comes pre-greased.
    • Labor Saver designs, tools and hardware are intended to make installation faster and easier.

    Interchange: 102-7555 · 524-695
    19340918 · TC6383 · CB63203 · CB63203PR · CA10623 · 545004R000 · RK622367 · 30030361 · X23CJ7188

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19340918, 102-7555, TC6383, 524-695, CB63203, CB63203PR, CA10623, 545004R000, RK622367, CMS901180, 30030361, X23CJ7188

    Frequently Asked Questions

    Is this the lower control arm for a 2013 Hyundai Sonata in the 2011-2015 range?

    Yes. Mevotech Supreme CMS901180 is the front left lower control arm for the 2011-2015 Hyundai Sonata, so it covers a 2013 model; the front right side is a separate part.

    Does this control arm and ball joint assembly come with bushings and a bolt?

    Yes. This control arm comes with its rubber bushings, plus the application-specific pinch bolt and locking nut for the ball joint.

    What is the Mevotech Supreme suspension control arm made of?

    Mevotech Supreme CMS901180 has an aluminum control arm with rubber bushings. The ball joint has a surface treatment that helps prevent rust build-up.

    Is the ball joint on this front left control arm pre-greased?

    Yes. The ball joint comes pre-greased, with a grooved stud, and it mounts by pressing in.

    Is 545004R000 a number that this control arm replaces?

    Yes. 545004R000 is on the Interchange line for Mevotech Supreme CMS901180, along with 102-7555, 524-695 and several other numbers.
