Front Left Lower Control Arm with Ball Joint for 2009-2014 Hyundai Genesis & More - Mevotech Supreme CMS90185

$163.99

Vehicles this part fits

    Part number: CMS90185
    UPC: 669719129312
    Condition: New
    Weight: 6.89 LBS
    Item Package Quantity: 1
    $163.99
    Adding to cart… The item has been added

    Have questions?

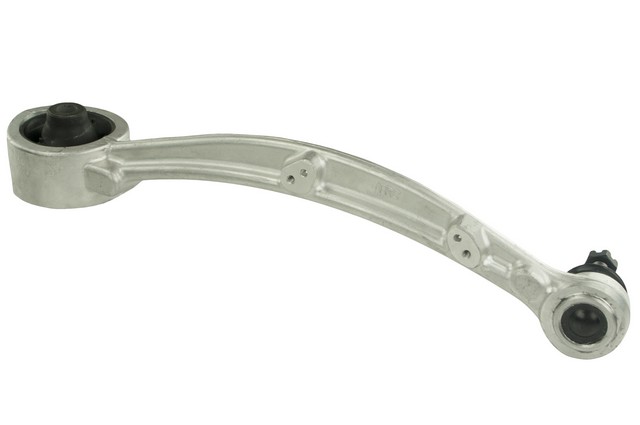

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS90185
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS90185
    $163.99
    $163.99

    Mevotech Supreme CMS90185 front left lower control arm with ball joint for the 2009-2014 Hyundai Genesis and other vehicles joins the wheel knuckle to the body and carries the ball joint. Because it is a control arm and ball joint assembly, the ball joint comes already fitted to the arm.

    • Mevotech Supreme line: engineered in-house with application-specific upgrades for durability and performance
    • Surface treatment on the ball joint that prevents rust build-up
    • Aluminum control arm with rubber bushings included
    • Pre-greased ball joint with a threaded stud
    • In-house and third-party durability testing for strength

    Quick facts

    • Part: Mevotech Supreme CMS90185 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2009-2014 Hyundai Genesis and other vehicles
    • Position: Front left lower forward
    • Material: Aluminum
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can come from a worn ball joint or bushing on this arm. Worn tie rod ends, struts and sway bar links can be behind these signs too, so find which part is at fault before buying.

    Fits

    It fits the 2009-2014 Hyundai Genesis and the 2011-2013 Hyundai Equus. This listing is one arm for the front left, and that side takes one; the front right is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front left lower forward
    • Quantity per application: 1
    • Maximum length: 18.95 in
    • Maximum width: 4.55 in
    • Ball joint stud type: threaded

    Build and materials

    • Control arm material: aluminum
    • Bushing material: rubber, bushings included
    • Ball joint: pre-greased
    • Mounting hardware: included
    • Adjustable: no
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One control arm with ball joint, rubber bushings and mounting hardware.

    Installation notes

    • Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
    • Labor Saver designs, tools and hardware are made to speed up installation.

    Interchange: 101-7147 · 102-7147 · 622.51039 · 521-743
    19288825 · MGS90185 · TC6579 · CB60273 · CB60273PR · CA4739 · 545053M000 · 545053M100 · 4CB90101 · RK621598 · C6GS90185 · GS90185 · 2606403 · 158109 · 30030278 · 5071859 · X18CJ1478

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19288825, 101-7147, 102-7147, MGS90185, 622.51039, TC6579, 521-743, CB60273, CB60273PR, CA4739, 545053M000, 545053M100, 4CB90101, RK621598, C6GS90185, GS90185, CMS90185, 2606403, 158109, 30030278, 5071859, X18CJ1478

    Frequently Asked Questions

    Is this a control arm for the 2009-2014 Hyundai Genesis that also suits the 2011-2013 Hyundai Equus?

    Yes. Mevotech Supreme CMS90185 fits both the 2009-2014 Hyundai Genesis and the 2011-2013 Hyundai Equus as the front left lower forward arm.

    What is the Mevotech Supreme control arm made of?

    The control arm is aluminum and its bushings are rubber. The ball joint has a threaded stud.

    Does the Mevotech Supreme lower control arm come with its ball joint and hardware?

    Yes. CMS90185 comes with the ball joint, rubber bushings and mounting hardware, plus a castle nut and cotter pin for securing the ball joint.

    Is the ball joint on this Mevotech Supreme suspension control arm pre-greased?

    Yes. The ball joint on CMS90185 is pre-greased and has a surface treatment that prevents rust build-up.

    How can I tell if a lower control arm with a ball joint is wearing out?

    With the car parked and cool, look for cracked or torn rubber bushings and heavy rust. A clunk over bumps or uneven tire wear can also mean wear; a shop can check ball joint play.
