Front Right Lower Control Arm with Ball Joint for 2019-2025 Toyota RAV4 & More - Mevotech Supreme CMS861313

$107.99

Vehicles this part fits

    Part number: CMS861313
    UPC: 677319506730
    Condition: New
    Weight: 17.71 LBS
    Item Package Quantity: 1
    $107.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS861313
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS861313
    $107.99
    $107.99

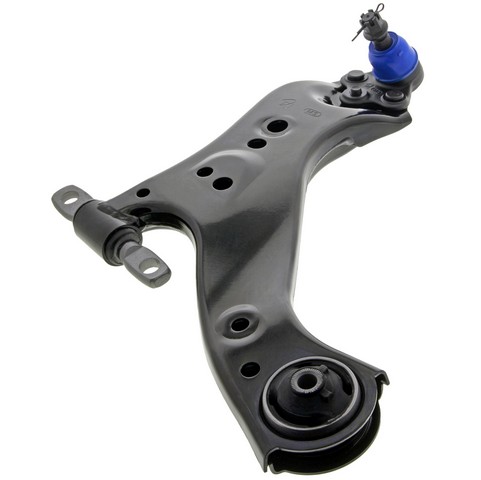

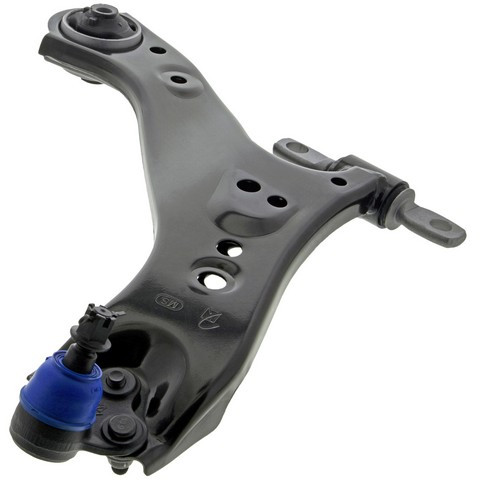

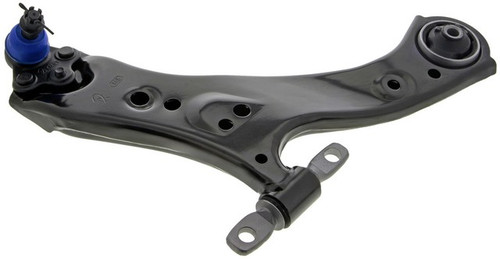

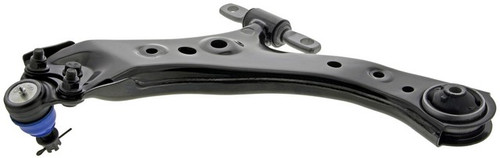

    Mevotech Supreme CMS861313 front right lower control arm with ball joint for the 2019-2025 Toyota RAV4 and other vehicles holds the front right wheel hub in place and lets the wheel pivot with the suspension. This Mevotech Supreme suspension control arm is a control arm and ball joint assembly with rubber bushings and the ball joint already attached.

    • Mevotech Supreme control arm engineered in-house with application-specific upgrades for durability and performance
    • Double-bonded rubber bushings for increased stiffness and durability
    • Sintered metal bearings for longer-lasting performance
    • Neoprene boot built into the ball joint assembly to seal out corrosion
    • Application-specific ball stud system with a larger sphere

    Quick facts

    • Part: Mevotech Supreme CMS861313 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: the 2019-2025 Toyota RAV4 and other vehicles
    • Position: Front right lower
    • Material: Steel
    • Condition: New

    A clunk over bumps, uneven front tire wear or loose, wandering steering can mean the ball joint or bushings on this arm are worn, though a worn tie rod end or wheel bearing can be behind the same signs.

    Fits

    This front right lower control arm with ball joint fits the 2019-2025 Toyota RAV4, the 2023-2025 Toyota Crown and the 2025 Toyota Crown Signia, and each takes one at that position. The left side of the front axle needs its own arm, normally replaced at the same time. For another Toyota or Lexus model, open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: front right lower
    • Quantity per vehicle: 1
    • Maximum length: 14.11 in
    • Maximum width: 14.21 in
    • Ball joint mounting type: bolt in
    • Ball joint stud type: threaded

    Build and materials

    • Control arm material: steel, stamped construction
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Pre-greased and greaseable
    • Condition: new
    • Country of origin: China

    In the box

    One front right lower control arm with ball joint, rubber bushings, a dust boot, a castle nut, a cotter pin and a grease fitting.

    Installation notes

    • Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
    • The ball joint comes pre-greased, and the 180 degree SAE grease fitting is included for servicing.

    Interchange: 19531516 · CA75324 · 2609615 · 4333009A80 · 4333009A90 · 4333049225 · 480680R050 · 4806842070

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19531516, CA75324, CMS861313, 2609615, 4333009A80, 4333009A90, 4333049225, 480680R050, 4806842070

    Frequently Asked Questions

    Is this the 2019-2025 Toyota RAV4 control arm for the front right lower position?

    Yes. Mevotech Supreme CMS861313 is a front right lower control arm with ball joint and fits the 2019-2025 Toyota RAV4, taking one at that position.

    Which side of a 2019-2025 Toyota RAV4 does this RAV4 lower control arm go on?

    This lower control arm goes on the front right. The listing is one arm only, so the left side of the front axle is a separate part.

    What comes with the Mevotech Supreme CMS861313 control arm?

    Mevotech Supreme CMS861313 comes with its rubber bushings, the ball joint, a dust boot, a castle nut, a cotter pin and a grease fitting.

    What are the bushings and bearings made of on this control arm with ball joint?

    The bushings are rubber and the bearing is sintered metal. The ball joint boot is neoprene and is built into the assembly.

    Is the ball joint on this control arm with ball joint pre-greased?

    Yes. The ball joint comes pre-greased, and the included 180 degree SAE grease fitting allows greasing later.
