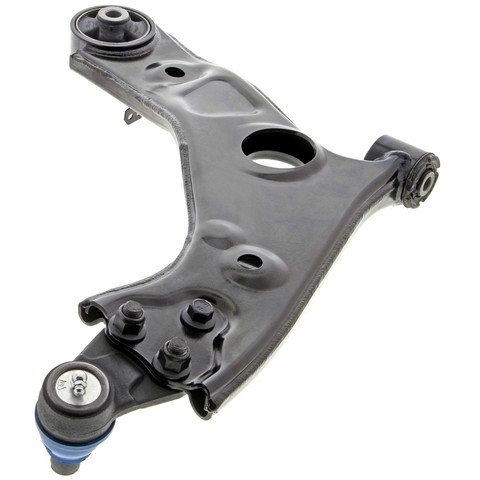

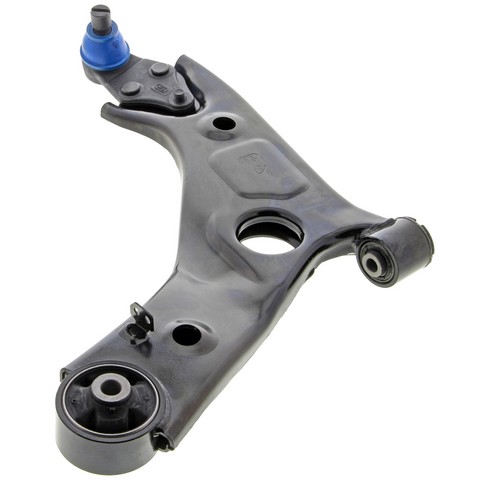

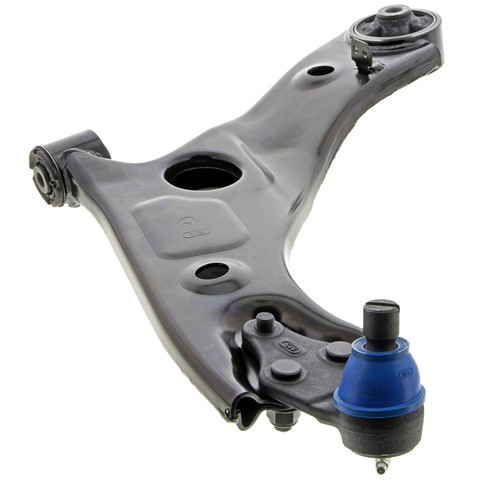

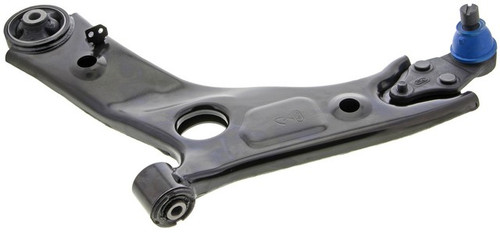

Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS861195
Mevotech Supreme CMS901278 front left lower control arm with ball joint for the 2019-2020 Hyundai Santa Fe joins the wheel to the vehicle and pivots as the suspension moves. Also known as a control arm and ball joint assembly, the Mevotech Supreme control arm includes the ball joint, bushings and dust boot.
A clunk over bumps, uneven front tire wear or loose steering can come from a worn arm, bushing or ball joint. Before replacing, look with the engine off for a torn dust boot, grease seeping out or split rubber bushings, since other suspension parts can make similar noises.
This is a direct-fit replacement control arm for the 2019-2020 Hyundai Santa Fe, and the front left takes one. Front lower arms are normally changed as a pair, and this listing is one: the front left. The front right is ordered separately.
Fit and size
Build and materials

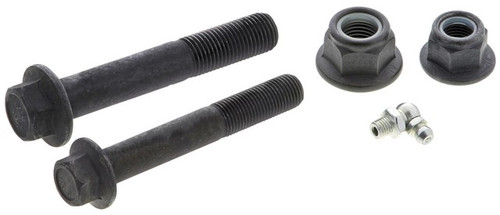

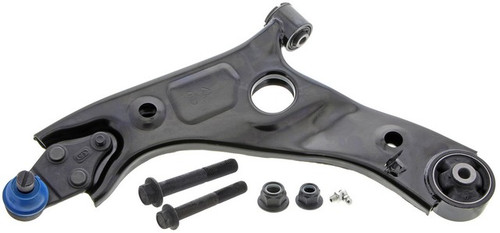

One control arm with ball joint, bushings, dust boot, 90 degree SAE grease fitting, application-specific pinch bolt and locking nut.
Interchange: 19474565 · CB63353 · 54500S1050 · 5CB90480 · RK623804 · GS901278 · 2608966
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this the lower control arm for the 2019-2020 Hyundai Santa Fe on the front left?
Yes. Mevotech Supreme CMS901278 is the front left lower control arm for the 2019-2020 Hyundai Santa Fe. The front right takes a separate part.
What is in the box with this Mevotech Supreme suspension control arm?
Mevotech Supreme CMS901278 comes with its ball joint, bushings, dust boot, a 90 degree SAE grease fitting, an application-specific pinch bolt and a locking nut.
Is this control arm pre-greased?
Yes. This control arm assembly is pre-greased and greaseable, and the 90 degree SAE grease fitting is included for later servicing.
How do I know if a front lower control arm with a ball joint is wearing out?
A clunk over bumps, uneven front tire wear or loose steering can point to a worn arm, bushing or ball joint. A shop can test the ball joint for play.
What is the dust boot on this control arm made of?
The dust boot is neoprene. Mevotech Supreme CMS901278 also has a sintered metal bearing and rubber bushings.
