Front Left Upper Control Arm with Ball Joint for 2015-2022 Chevrolet Colorado & More - Mevotech TTX CTXMS501241

$159.99

Vehicles this part fits

    Part number: CTXMS501241
    UPC: 677319199314
    Condition: New
    Weight: 8.16 LBS
    Item Package Quantity: 1
    $159.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech TTX Suspension Control Arm and Ball Joint Assembly P/N:CTXMS501241
    Mevotech TTX Suspension Control Arm and Ball Joint Assembly P/N:CTXMS501241
    $159.99
    $159.99

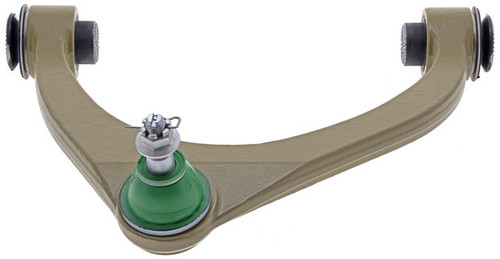

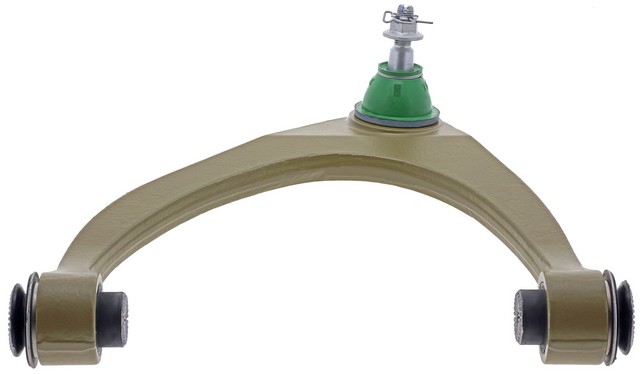

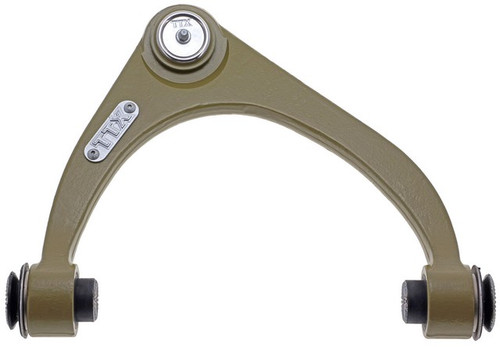

    Mevotech TTX CTXMS501241 front left upper control arm with ball joint for the 2015-2022 Chevrolet Colorado and other vehicles locates the wheel as the suspension moves.

    • Mevotech TTX line, built for commercial and passenger vehicles, SUVs, fleets and working trucks
    • Patented sintered bearings
    • Forged steel construction with a reinforced ball joint head and a thicker cross section
    • Patented sealing ring that locks the boot onto the ball joint housing
    • Application-specific ball stud system with a larger sphere
    • Repel-TEK surface treatment to prevent rust build-up

    Quick facts

    • Part: Mevotech TTX CTXMS501241 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2015-2022 Chevrolet Colorado and other vehicles
    • Position: Front left upper
    • Material: Steel
    • Condition: New

    A worn ball joint or bushing can show up as clunking over bumps, loose steering or uneven front tire wear. If one of them is the cause, this control arm and ball joint assembly replaces both in one piece. These signs alone do not prove the arm is at fault; a worn tie rod end can cause similar ones.

    Fits

    It fits the 2015-2022 Chevrolet Colorado and the 2015-2022 GMC Canyon, and each takes one on the front left upper. Control arms are normally replaced in pairs. This listing is one arm, so the front right upper is a separate part.

    Specifications

    Fit and size

    • Position: front left upper
    • Quantity per vehicle: 1
    • Maximum width: 13.80 in
    • Maximum length: 10.85 in
    • Ball joint stud type: threaded

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Pre-greased and greaseable
    • Condition: new
    • Country of origin: China

    In the box

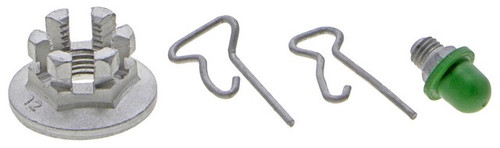

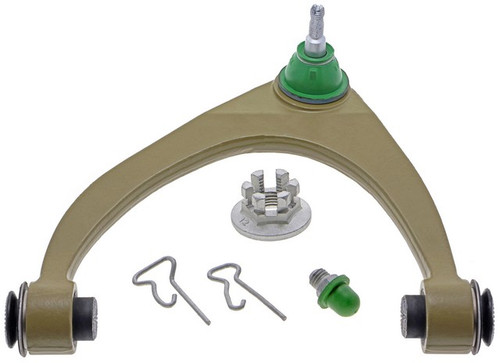

    One front left upper control arm with ball joint, rubber bushings, mounting hardware and a 180 degree SAE grease fitting.

    Installation notes

    • The ball joint secures to the vehicle with a part-specific slotted castle nut and a snap cotter pin.
    • Pre-applied nylok thread adhesive keeps fasteners secure and vibration resistant.
    • Labor Saver designs, tools and hardware make installation faster and easier.

    Interchange: 2703-566275 · 527-033
    19422129 · 94772428 · CA8975 · GCA8975 · RK623350 · 8CB503031

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19422129, 2703-566275, 94772428, 527-033, CA8975, GCA8975, RK623350, CTXMS501241, 8CB503031

    Frequently Asked Questions

    Is this one of the control arms for the 2015-2022 Chevrolet Colorado?

    Yes. Mevotech TTX CTXMS501241 is the front left upper arm for the 2015-2022 Chevrolet Colorado, and it also fits the 2015-2022 GMC Canyon.

    Is the Mevotech TTX control arm greaseable?

    Yes. Mevotech TTX CTXMS501241 comes pre-greased and is greaseable, and a 180 degree SAE grease fitting is included for servicing.

    Do the bushings and ball joint come with this front left upper arm?

    Yes. The rubber bushings and ball joint are part of this assembly, and mounting hardware comes with it, including a slotted castle nut and a snap cotter pin.

    What kind of ball joint stud does this arm have?

    This control arm has a threaded stud on an application-specific ball stud system with a larger sphere. The ball joint bearings are sintered metal.

    How can I tell if an upper control arm bushing or ball joint is worn?

    Cracked or split bushing rubber, a torn ball joint boot or a clunk over bumps can mean wear. A shop can check the ball joint for play.
