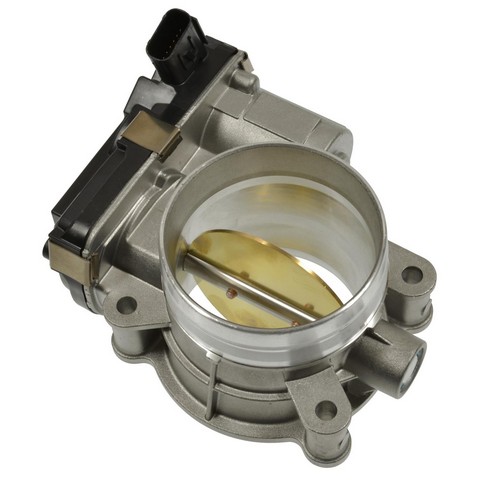

Standard Ignition S20084 fuel injection throttle body for the 2011-2016 Chevrolet Silverado 3500 HD V8 6.6L and other vehicles controls how much air enters the engine. It is a new part, designed and tested for domestic vehicles.
- Gear train components designed for durability under harsh operating conditions
- Temperature-resistant silicone seal included
- Validated with 200+ hours of vibration testing and 1000+ hours of extreme heat and cold operational testing
- Sealed ball bearings limit airflow leakage and reduce mass air-flow reading errors
Quick facts
- Part: Standard Ignition S20084 fuel injection throttle body
- Fits: 2011-2016 Chevrolet Silverado 3500 HD V8 6.6L and other vehicles
- Condition: New
A worn or failing throttle body can show up as a rough or unstable idle, hesitation when you press the pedal, or a warning light. Those signs alone do not prove the throttle body is at fault, since a leak in the intake can also roughen the idle.
Fits
This fuel injection throttle body also fits the 2011-2016 GMC Sierra 2500 HD V8 6.6L and the 2011-2016 GMC Sierra 3500 HD V8 6.6L, with one throttle body per truck.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connector: 1, female
- Terminals: 6, blade, female
Build and materials
- Condition: New
- Throttle position sensor: included
- Gasket and seals: included
- Idle air control motor: not included
- Throttle body spacer: not included
- Country of origin: Mexico
In the box
One throttle body with its gasket and the throttle position sensor. Mounting hardware and fuel injectors are not included, and old mounting bolts may not be reusable, so plan on new ones.
Installation notes
- A relearn is required after installation.
- Output voltages are calibrated to match OE for a smooth relearning process.
Interchange: TB1075D · 12634263 · 12678311 · 12713824 · 19420702 · ETB148
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
S20084, TB1075D, 12634263, 12678311, 12713824, 19420702, ETB148
Frequently Asked Questions
Is the Standard Ignition S20084 the right throttle body for the 2011-2016 GMC Sierra 2500 HD V8 6.6L?
Yes, Standard Ignition S20084 fits the 2011-2016 GMC Sierra 2500 HD V8 6.6L. For another truck, look up its year and engine in the "Vehicles it fits" section on this page.
Does the S20084 throttle body come with a gasket and the throttle position sensor?
Yes, it includes a gasket and the throttle position sensor. Mounting hardware, fuel injectors, a throttle body spacer and an idle air control motor are not included.
How many terminals does the Standard Ignition S20084 connector have?
Standard Ignition S20084 has one female connector with six female blade terminals.
Does this throttle body need a relearn after installation?
Yes, installation requires a relearn. The unit is assembled and calibrated to match OE output voltages, which is meant to keep that relearn smooth.
What testing does this throttle body go through before it is sold?
Besides on-vehicle testing, validation runs 200+ hours of vibration testing and 1000+ hours of extreme heat and cold operational testing.
