Fuel Injection Throttle Body for 2003-2006 Toyota Camry & More - Standard Ignition S20129

$308.99

Vehicles this part fits

    Part number: S20129
    UPC: 727943243065
    Condition: New
    Weight: 2.30 LBS
    Item Package Quantity: 1
    $308.99
    Adding to cart… The item has been added

    Have questions?

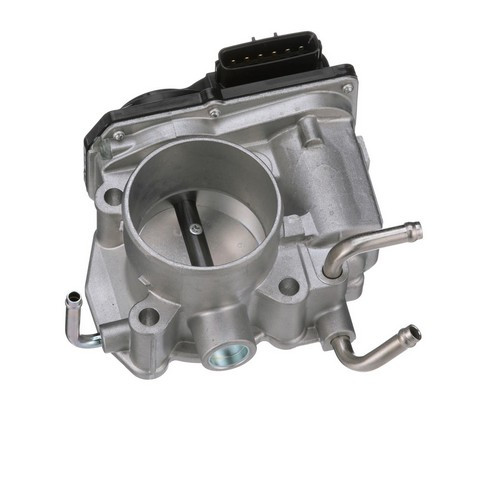

    TechSmart Fuel Injection Throttle Body P/N:S20129
    TechSmart Fuel Injection Throttle Body P/N:S20129
    $308.99
    $308.99

    Standard Ignition S20129 fuel injection throttle body for the 2003-2006 Toyota Camry 4-cylinder 2.4L and other vehicles regulates the air that flows into the engine. This electronic unit includes a throttle position sensor and is designed and tested for import vehicles.

    • Gear train components designed for durability under harsh operating conditions
    • Temperature-resistant silicone seal included
    • Validated with 200+ hours of vibration testing and 1000+ hours of extreme heat and cold operational testing
    • Throttle body components assembled and calibrated to support a smooth relearning process
    • Sealed ball bearings that limit airflow leakage and reduce mass air-flow reading errors

    Quick facts

    • Part: Standard Ignition S20129 fuel injection throttle body
    • Fits: 2003-2006 Toyota Camry 4-cylinder 2.4L and other vehicles
    • Condition: New

    A rough idle, hesitation when you press the pedal or a check engine light can come from a failing throttle body. A vacuum leak or a mass air-flow sensor fault can produce these signs as well, so track down the cause before you buy. This listing is one unit, and each 2.4L engine here takes one throttle body.

    Fits

    The part is listed for a wide range of Toyota and Scion models, including the 2003-2007 Toyota Highlander 4-cylinder 2.4L and the 2004-2005 Toyota RAV4 4-cylinder 2.4L. If your car is not named here, look it up in the "Vehicles it fits" section on this page.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Connector: 1, female, with 6 male blade terminals

    Build and materials

    • Type: electronic throttle body
    • Throttle position sensor: included
    • Seal: temperature-resistant silicone
    • Condition: New
    • Country of origin: China

    In the box

    One electronic throttle body with its throttle position sensor, an electronic throttle body gasket and seals. Mounting hardware, fuel injectors, a throttle body spacer and an idle air control motor are not included, so plan on new mounting bolts.

    Installation notes

    • Relearn required for installation.

    Interchange: TB1113D · ETB518 · 220300H020 · 220300H021 · 2203028060 · 2203028061

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    S20129, TB1113D, ETB518, 220300H020, 220300H021, 2203028060, 2203028061

    Frequently Asked Questions

    Is the Standard Ignition S20129 throttle body right for a 2003-2007 Toyota Highlander 4-cylinder 2.4L?

    Yes. Standard Ignition S20129 is listed for the 2003-2007 Toyota Highlander 4-cylinder 2.4L. Other models are in the "Vehicles it fits" section of this page.

    Does this throttle body come with a gasket?

    Yes. It comes with an electronic throttle body gasket and seals, plus the throttle position sensor. Mounting hardware, fuel injectors, a spacer and an idle air control motor are not included.

    How many terminals does the connector on this throttle body have?

    The single connector is female and holds 6 male blade terminals.

    Does the Standard Ignition S20129 need a relearn after installation?

    Yes. Standard Ignition S20129 requires a relearn after installation, and each component is assembled and calibrated to match OE output voltages for a smooth relearning process.

    Does this throttle body use sealed ball bearings?

    Yes. It uses sealed ball bearings, which limit airflow leakage and reduce mass air-flow reading errors.
