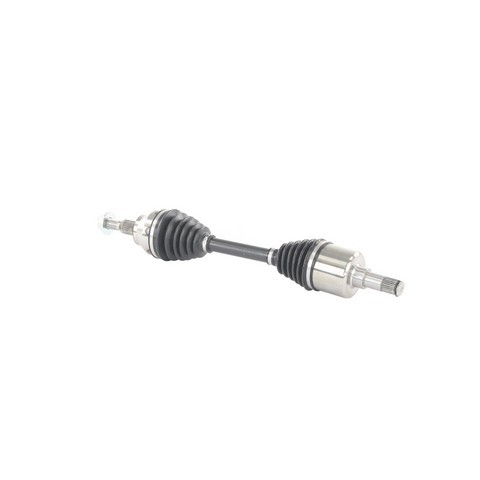

TrakMotive FD-8239 front left CV axle shaft for the 2013-2018 Ford Focus carries drive torque from the transmission to the front left wheel. Its joints let the wheel steer and the suspension move while the shaft keeps turning.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 26 splines
- Conventional outboard joint with 27 splines
- Self-locking axle nut included with the shaft
Quick facts
- Part: TrakMotive FD-8239 CV axle shaft
- Fits: 2013-2018 Ford Focus
- Position: Front left
- Condition: New
A clicking or popping noise on tight turns, vibration while driving or a torn boot can mean a CV joint is wearing. Those signs can have other causes, so with the engine off, look at the inside of the front wheel and the wheel well for flung grease before replacing the axle. A shop can inspect the joints.
Fits
This is a direct-fit CV axle replacement for the 2013-2018 Ford Focus, which takes one on this side. The listing is one shaft for the front left; the front right is a separate part, and both sides of the front axle are normally done at the same time.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1
- Overall compressed length: 636 mm (25.04 in)
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm (1.25 in)
- Inboard joint: male, 26 splines
- Outboard joint: conventional, 27 splines
Build and materials
- Joint boots: neoprene
- ABS tone ring: not included
- Condition: new
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut. The ABS tone ring is not included.
Interchange: 169239 · NCV11186 · BV6Z3B437C · EV6Z3B437C
This part cross-references / interchanges with the following part numbers:
169239, NCV11186, BV6Z3B437C, EV6Z3B437C, FD-8239
Frequently Asked Questions
Is this a CV axle replacement for the 2013-2018 Ford Focus if mine is a 2015?
Yes. TrakMotive FD-8239 fits the 2013-2018 Ford Focus on the front left, so a 2015 is covered. The front right side takes a separate axle.
Is this a 2013 Ford Focus CV axle replacement for both sides, or just the front left?
Just the front left. TrakMotive FD-8239 is one shaft for the 2013-2018 Ford Focus, and the front right is a separate part.
Does the TrakMotive FD-8239 come with its axle nut?
Yes. It includes a self-locking axle nut with an M22x1.5 thread and a 32 mm hex. The ABS tone ring is not included.
How many splines does this CV axle shaft have at each end?
The male inboard joint has 26 splines, and the conventional outboard joint has 27 splines. The overall compressed length is 636 mm (25.04 in).
Does this front left CV axle shaft replace NCV11186?
Yes. NCV11186 is one of the numbers TrakMotive FD-8239 replaces, along with 169239, BV6Z3B437C and EV6Z3B437C.
