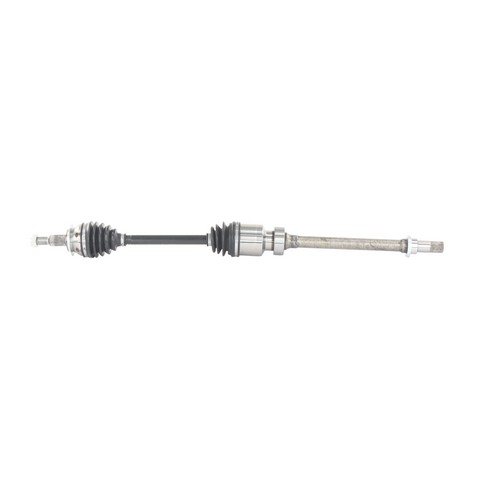

TrakMotive MZ-8239 front right CV axle shaft for the 2014-2018 Mazda 3 sends drive torque from the transmission to the wheel. Joints at both ends let this TrakMotive CV axle keep driving the wheel as the suspension moves and the wheel steers.
A clicking or popping noise when turning, vibration while driving or grease thrown around the wheel area can point to a worn axle. With the engine off, look at the inner and outer boots for tears or grease spray before you replace anything. If this axle is the cause, this one replaces it.
It is a CV axle replacement for the 2014-2018 Mazda 3, front right side. This listing is one axle shaft; the front left side is a separate part.
Fit and size
Build and materials
One CV axle shaft and one self-locking axle nut.
Interchange: 249239 · FTC32550X
This part cross-references / interchanges with the following part numbers:
Is this the right CV shaft for the 2014-2018 Mazda 3 front right side?
Yes. TrakMotive MZ-8239 is the front right CV axle shaft for the 2014-2018 Mazda 3. The front left side is a separate part.
Does the TrakMotive CV axle shaft come with an axle nut?
Yes. TrakMotive MZ-8239 includes one self-locking axle nut. The ABS tone ring is not included.
How many splines does this CV axle shaft have at each end?
The inboard end is a male joint with 28 splines, and the outboard end is a conventional joint with 28 splines.
What material are the boots on this front right CV axle shaft?
The boots on both the inboard and outboard joints of TrakMotive MZ-8239 are neoprene.
What is the overall length of the TrakMotive MZ-8239?
Its compressed length is 1009 mm (39.7 in). The axle nut uses an M22x1.5 thread with a 32 mm hex.
