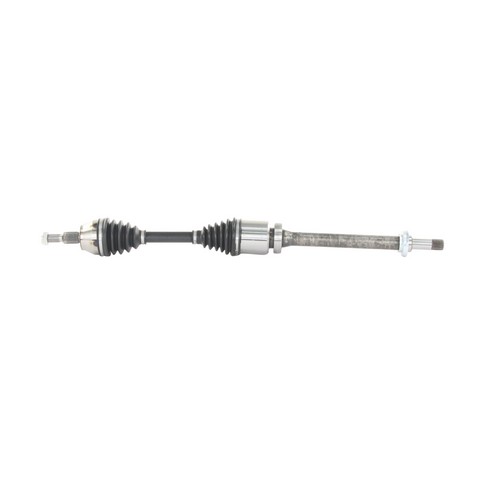

TrakMotive FD-8321 front right CV axle shaft for the 2014-2016 Ford Transit Connect carries drive torque to the front right wheel. This TrakMotive CV axle flexes at both joints as the suspension moves and the wheel steers.
A clicking or popping noise on turns, vibration under acceleration or a torn boot with grease around it can mean this axle is worn. A worn wheel bearing or a tire problem can be behind similar noise or vibration, so find the cause first. This listing is one axle for the front right; the front left is a separate part, and both sides are normally replaced together. Each side of the front axle takes one shaft.
This is a direct-fit replacement for the 2014-2016 Ford Transit Connect.
Fit and size
Build and materials
One CV axle shaft and one self-locking axle nut. The ABS tone ring is not included.
Interchange: DV6Z 3B436-B
NCV11226
This part cross-references / interchanges with the following part numbers:
Is the TrakMotive FD-8321 the correct axle for the front right of a 2014-2016 Ford Transit Connect?
Yes. TrakMotive FD-8321 is the front right CV axle shaft for the 2014-2016 Ford Transit Connect; the front left side is a separate part.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes. TrakMotive FD-8321 includes a self-locking axle nut with an M22x1.5 thread and a 32 mm hex. The ABS tone ring is not included.
How many splines does this front right axle have?
The inboard end has 35 splines and the outboard end has 27. The overall compressed length is 943 mm (37.11 in).
Could a clicking noise on turns come from this front right axle?
Possibly. Clicking on tight turns, vibration under acceleration or a torn boot with grease around it can point to a worn axle, and a shop can confirm the cause.
Is there a warranty on this front right axle?
Yes. TrakMotive backs this axle with a limited lifetime warranty.
