Front Right CV Axle Shaft for 2011-2019 Ford Taurus & More - TrakMotive FD-8331

$141.99

Vehicles this part fits

    Part number: FD-8331
    UPC: 844084033895
    Condition: New
    Weight: 17.00 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $141.99
    Adding to cart… The item has been added

    Have questions?

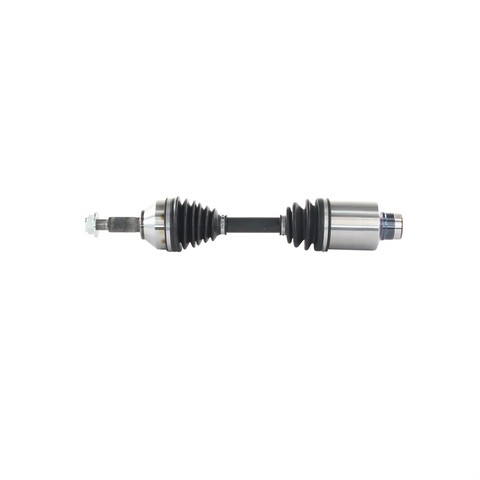

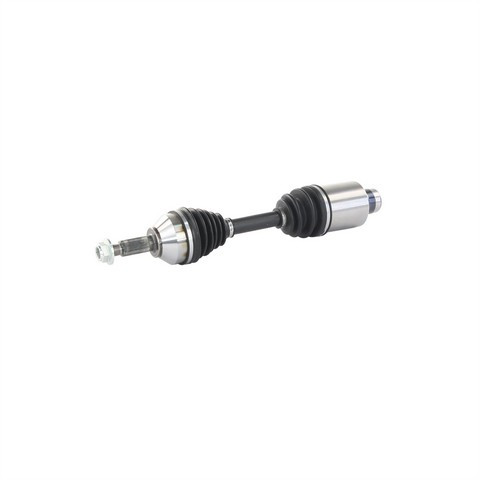

    TrakMotive CV Axle Shaft P/N:FD-8331
    TrakMotive CV Axle Shaft P/N:FD-8331
    $141.99
    $141.99

    TrakMotive FD-8331 front right CV axle shaft for the 2011-2019 Ford Taurus and other vehicles sends drive torque to the wheel. It flexes with suspension travel through an inboard and an outboard joint.

    • Self-locking axle nut included, with M22x1.5 thread and a 32 mm hex
    • Female inboard joint with 27-2T splines
    • Conventional outboard joint with 38 splines
    • Neoprene boots on both the inboard and outboard joints
    • Overall compressed length of 533 mm (20.98 in)

    Quick facts

    • Part: TrakMotive FD-8331 CV axle shaft
    • Fits: 2011-2019 Ford Taurus and other vehicles
    • Position: Front right
    • Material: Neoprene (joint boots)
    • Condition: New

    A clicking noise in tight turns, a vibration under acceleration or grease around a torn boot can point to a worn axle. A tired wheel bearing, ball joint or tire can be behind those signs too, so find the cause before buying.

    Fits

    This listing is one front right CV axle shaft; the front left is a separate part, and the two sides of that axle are normally replaced at the same time. This axle fits the 2011-2019 Ford Taurus, the 2012-2019 Lincoln MKT and the 2010-2019 Ford Flex. ABS axles fit non-ABS applications unless otherwise noted. If your car is not one of those, look up its year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per application: 1
    • Overall compressed length: 533 mm (20.98 in)
    • Inboard splines: 27-2T
    • Outboard splines: 38
    • Axle nut thread size: M22x1.5
    • Axle nut hex size: 32 mm (1.25 in)

    Build and materials

    • Inboard joint type: Female
    • Outboard joint type: Conventional
    • Joint boot material: Neoprene (inboard and outboard)
    • Axle nut locking type: Self-lock
    • ABS tone ring: not included
    • Condition: New
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One front right CV axle shaft with its self-locking axle nut. An ABS tone ring is not included.

    Interchange: 66-2255 · 66-2316
    NCV11227 · DG1Z3B436D · DG1Z3B436E

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    66-2255, 66-2316, NCV11227, DG1Z3B436D, DG1Z3B436E, FD-8331

    Frequently Asked Questions

    Is this the right cv axle for the 2011-2019 Ford Taurus?

    Yes, TrakMotive FD-8331 is the front right CV axle shaft for the 2011-2019 Ford Taurus with any engine; the front left is a separate part.

    Will this work as a 2013 Ford Taurus cv axle replacement?

    Yes. The 2013 model year sits inside the 2011-2019 Ford Taurus years this front right axle covers, and the engine does not change the fit.

    Does the TrakMotive cv axle come with an axle nut?

    Yes, TrakMotive FD-8331 includes its self-locking axle nut (M22x1.5 thread, 32 mm hex); the ABS tone ring is not included.

    How long is this front right CV axle shaft?

    This front right CV axle shaft measures 533 mm (20.98 in) overall compressed, with 27-2T inboard splines and 38 outboard splines.

    What signs can mean a CV axle boot or joint is worn?

    Clicking in tight turns, vibration under acceleration or grease around a torn neoprene boot can mean this CV axle shaft is worn. A shop can confirm the cause.
