Front Right CV Axle Shaft for 2016-2021 Hyundai Tucson - TrakMotive HY-8331

$202.99

TrakMotive CV Axle Shaft HY-8331 - view 2

TrakMotive CV Axle Shaft HY-8331 - view 3

Part number: HY-8331

UPC: 844084044860

Condition: New

Weight: 20.70 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$202.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

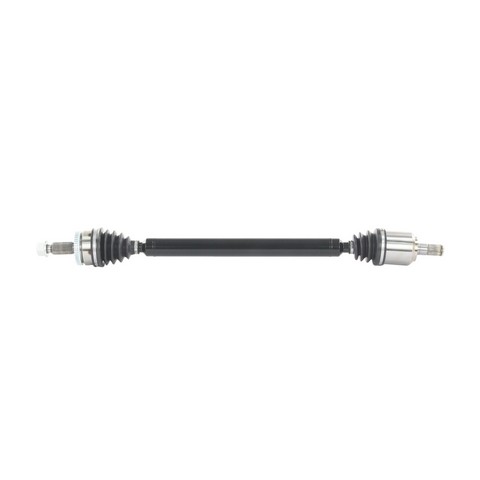

TrakMotive CV Axle Shaft P/N:HY-8331

$202.99

Description

TrakMotive HY-8331 front right CV axle shaft for the 2016-2021 Hyundai Tucson carries drive torque from the transmission to the wheel. This TrakMotive CV axle flexes with suspension travel and steering through its inboard and outboard joints.

Toothed ABS tone ring with 48 teeth is included on the shaft
Neoprene boots cover the inboard and outboard joints
Male inboard joint with 27 splines and conventional outboard joint with 30 splines
Axle nut with M24x1.5 thread and stake locking is included

Quick facts

Part: TrakMotive HY-8331 CV axle shaft
Fits: 2016-2021 Hyundai Tucson
Position: Front right
Condition: New

A clicking noise when turning, grease around a torn boot or vibration when accelerating can mean this axle is worn, though a worn wheel bearing or an out-of-balance tire can be behind the same signs. Front axles are best replaced as a pair; this listing is one axle for the front right, and the front left is ordered separately.

Fits

This CV axle shaft is a direct-fit replacement for the 2016-2021 Hyundai Tucson.

Specifications

Fit and size

Position: front right
Quantity per vehicle: 1 for this side
Overall compressed length: 958 mm (37.7 in)
Inboard splines: 27
Outboard splines: 30
Axle nut thread: M24x1.5
Axle nut hex size: 32 mm (1.26 in)

Build and materials

Inboard joint: male, spline connection
Outboard joint: conventional, spline connection
Boot material: neoprene, inboard and outboard
ABS sensor ring: toothed, 48 teeth, included
Axle nut: included, stake locking
Condition: new
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut. The front right takes one.

Interchange: NCV37112K · HY20072ER

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

NCV37112K, HY20072ER, HY-8331

Buyer's Q&A

Frequently Asked Questions

Does the TrakMotive HY-8331 fit the 2016-2021 Hyundai Tucson?

Yes. TrakMotive HY-8331 is the front right CV axle shaft for the 2016-2021 Hyundai Tucson. The front left side is a separate part.

Does the TrakMotive CV axle shaft come with an axle nut?

Yes. The axle nut is included. It has an M24x1.5 thread and a 32 mm hex, and it locks by staking.

How many splines does this CV axle have at each end?

TrakMotive HY-8331 has 27 splines on the male inboard joint and 30 splines on the conventional outboard joint.

Does HY-8331 replace the NCV37112K axle?

Yes. NCV37112K is one of the numbers this axle replaces, along with HY20072ER.

How can I tell if a CV axle boot is damaged?

With the engine off, look for a split or torn boot and grease around the joint. A clicking noise when turning is another sign; a shop can confirm the cause.
