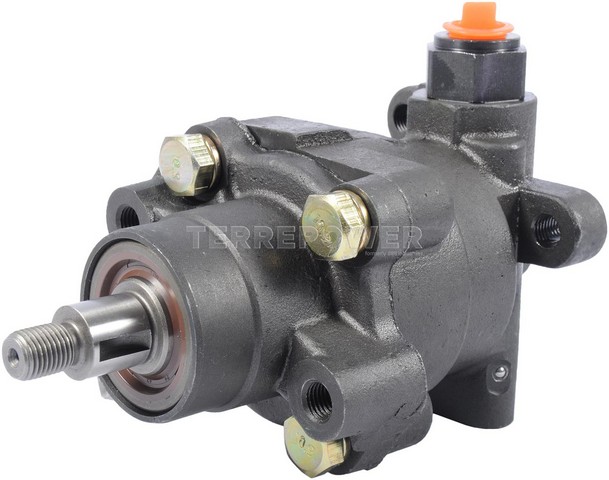

TERREPOWER N990-0309 power steering pump for the 1984-1990 Toyota Pickup is a hydraulic pump that supplies the pressure for power steering assist. It is a new pump with a remote reservoir.
- Cast iron housing
- Remote reservoir design with a pipe-type inlet
- Threaded outlet with an M16X1.50 thread size
- Keyway pulley attachment
- Two mounting holes
Quick facts
- Part: TERREPOWER N990-0309 power steering pump
- Fits: 1984-1990 Toyota Pickup
- Material: Cast iron housing
- Condition: New
A whine or groan when you turn, heavy steering or fluid around the pump can mean the pump is wearing out. Before replacing it, look over the pump, hoses and fittings for seepage and the drive belt for wear, with the engine off. A hose or belt problem can give similar signs.
Fits
It is a direct-fit power steering pump replacement for the 1984-1990 Toyota Pickup.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 2
- Outlet thread size: M16X1.50
- Outlet diameter: 16 mm
- Thread diameter: 8 mm
- Inlet: 1, pipe attachment
Build and materials
- Housing material: cast iron
- Pulley attachment: keyway
- Outlet attachment: threaded
- Reservoir: remote
- Condition: new
- Country of origin: China
In the box
One power steering pump with an installation kit. This listing is one pump, and the vehicle needs one. The reservoir, reservoir cap, pulley, filter and sensor are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this the power steering pump for a 1990 Toyota Pickup?
Yes. TERREPOWER N990-0309 fits the 1984-1990 Toyota Pickup, so a 1990 model is covered.
Does the TERREPOWER N990-0309 pump come with a reservoir or pulley?
No. The reservoir, reservoir cap, pulley and filter are not included. The pump does come with an installation kit.
What thread size is the outlet on this remote reservoir pump?
The outlet is threaded at M16X1.50, with a 16 mm outlet diameter. The inlet is a pipe attachment.
Why does my steering whine when I turn, and could the pump be the cause?
A whine or groan when turning, heavy steering or fluid around the pump can mean the pump is worn. A shop can test the pump with the engine running.
Is the housing on this power steering pump cast iron?
Yes. The N990-0309 housing material is cast iron. The pump has two mounting holes and a keyway pulley attachment.
