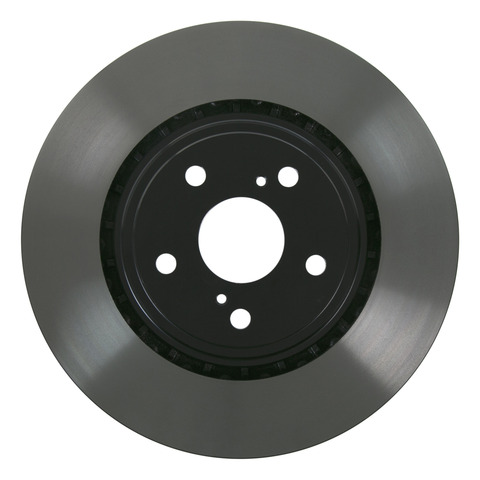

Smooth, controlled stops start with a properly balanced rotor. The Wagner Brake Front Disc Brake Rotor BD126565E is a direct-fit replacement for the listed applications, engineered to match OE requirements for consistent braking, corrosion resistance and easy installation. It drops in on the 2008-2019 Toyota Highlander, 2010-2015 Lexus RX350 and RX450H, 2011-2020 Toyota Sienna, 2015-2017 Lexus NX200T, 2015-2021 Lexus NX300H and 2018-2021 Lexus NX300 (engine: All).
- OE-style design: designed to match OE requirements and restore OE-style braking performance.
- Resists corrosion: painted edges and hats provide corrosion resistance.
- Precision finish: a precision-ground smooth surface requires less pad break-in time and aids proper bedding, helping control noise and heat dissipation.
- Vented, full-cast build: vented, full-cast construction with application-specific vane design and thickness helps control noise, vibration and harshness (NVH), while high-grade metallurgy supports structural integrity and heat dispersion.
- Proper balance: precision machined to limit vibration for improved stability, control and reduced pad wear.
This vented front rotor measures 328.0 mm (12.913 in) outside diameter and 28.0 mm (1.102 in) nominal thickness, and is sold individually. The front axle uses two, so order 2 and replace both sides together as a matched pair for even, balanced braking. If worn, warped or corroded rotors are the cause of pedal pulsation or vibration, this replaces them; diagnose the cause before replacing. Pair with Wagner OEX or QS brake pads for optimal performance. Country of origin: China. Manufacturer part number BD126565E.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Which vehicles does this rotor fit?
It's a direct-fit front rotor for the 2008-2019 Toyota Highlander, 2010-2015 Lexus RX350/RX450H, 2011-2020 Sienna, 2015-2017 NX200T, 2015-2021 NX300H and 2018-2021 NX300 (engine: All). Check the Buyer's Guide for your vehicle.
Is this a front or rear rotor?
It's a front disc brake rotor.
How many do I need?
It's sold individually. The front axle uses two, so order 2 and replace both sides together as a matched pair for even, balanced braking.
Is this a vented rotor, and what size is it?
Yes, it's a vented, full-cast rotor with a smooth, precision-ground surface, measuring 328.0 mm (12.913 in) outside diameter and 28.0 mm (1.102 in) nominal thickness.
Which brake pads should I use with it?
Wagner recommends pairing these rotors with Wagner OEX or QS brake pads for optimal performance.
