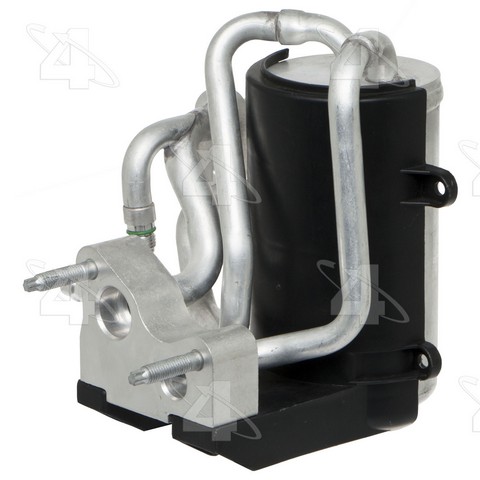

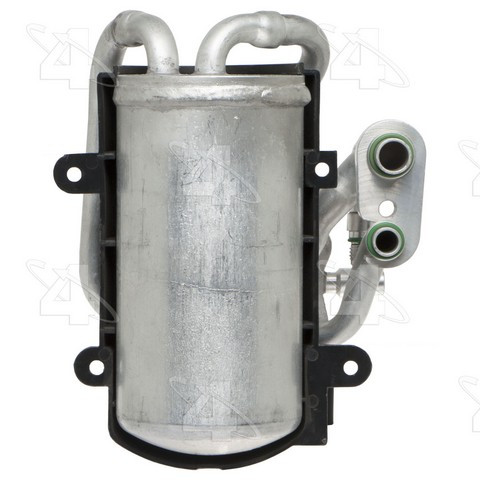

Four Seasons 34002 front A/C receiver drier for the 2012-2022 International Workstar 7600 and other vehicles removes moisture and contaminants from the air conditioning system.
- Quality welds for a durable, leak-free design
- High-quality desiccant bag for moisture absorption
- Traps contaminants that flushing does not remove
- Aluminum body with pad-mount inlet and outlet
Quick facts
- Part: Four Seasons 34002 A/C receiver drier
- Fits: 2012-2022 International Workstar 7600 and other vehicles
- Position: Front
- Material: Aluminum
- Condition: New
Weak cooling can have several sources, so with the engine off, look the drier and its fittings over for oily residue or damage and find the cause before you replace anything. An open or leaking system can saturate the desiccant within a few hours, so the drier gets replaced any time the system is serviced. The 2012-2022 International Workstar 7600 takes one.
Fits
This drier is listed for a wide range of International models, including the 2012-2022 International Workstar 7600, the 2011-2020 International 4300 and the 2011-2020 International 4400. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1
- Diameter: 76.2 mm (3.000 in)
- Length: 152.4 mm

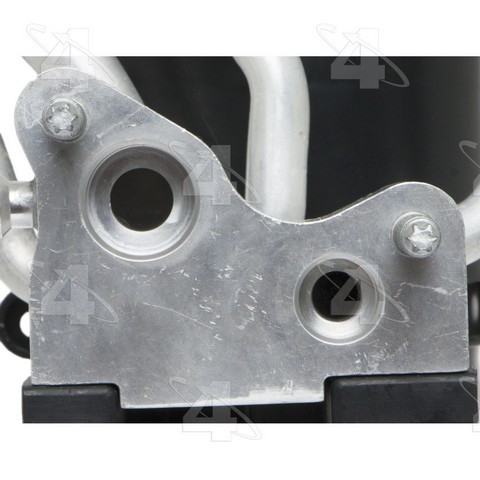

- Inlet: pad mount, 1/2 in (0.500 in)
- Outlet: pad mount, 5/8 in

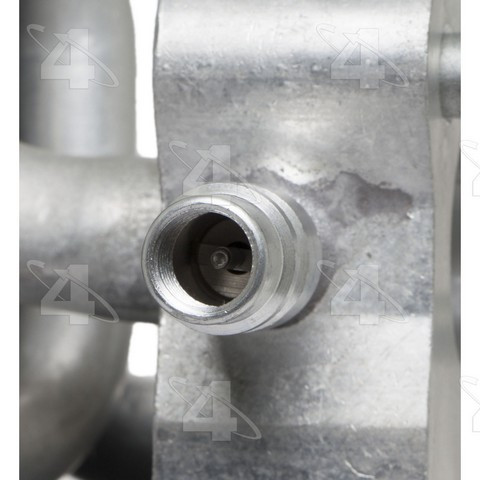

- Switch port diameter: 13 mm
Build and materials
- Type: filter drier, no sight glass
- Material: Aluminum
- Desiccant: not replaceable
- Condition: New
- Country of origin: China
In the box
One A/C receiver drier with its gasket, o-rings and seal, a service port and a switch port. Mounting hardware and a bracket are not included, so plan on new mounting hardware rather than reusing the old.
Frequently Asked Questions
Is the Four Seasons 34002 receiver drier right for the 2012-2022 International Workstar 7600?
Yes. The Four Seasons 34002 front A/C receiver drier is listed for the 2012-2022 International Workstar 7600, which takes one. Open the "Vehicles it fits" section to check other International models.
Does the Four Seasons 34002 drier include gaskets and o-rings?
Yes. The Four Seasons 34002 comes with the gasket, o-rings and seal, plus a service port and a switch port. Mounting hardware and a bracket are not included.
What size are the inlet and outlet on this pad-mount drier?
The inlet is pad mount at 1/2 in (0.500 in) and the outlet is pad mount at 5/8 in. The aluminum body is 76.2 mm across and 152.4 mm long, and the switch port is 13 mm.
Can I swap just the desiccant bag in this A/C drier?
No. The desiccant in this drier is not replaceable, so the whole unit is replaced. An open system can saturate the bag within a few hours.
Can flushing the A/C system clean the old drier instead of replacing it?
No. Contaminants the drier traps cannot be removed by flushing, so the drier is replaced. Replacing it is also required to validate the compressor maker's warranty.
