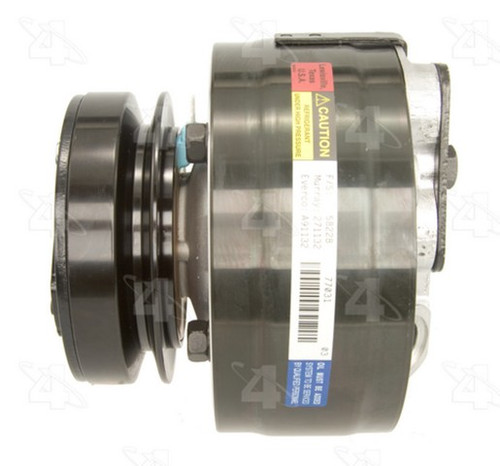

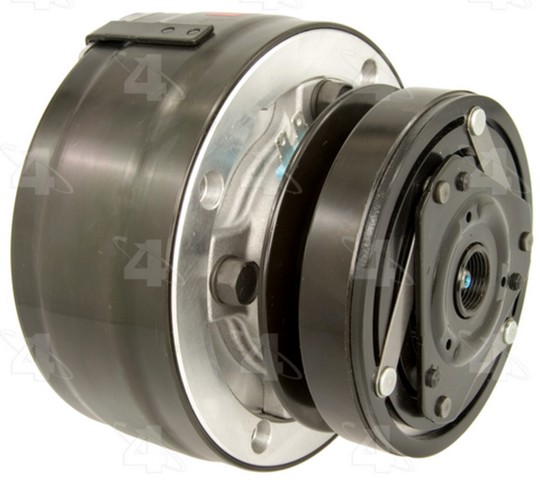

Four Seasons 58228 A/C compressor for the 1987 Chevrolet Camaro and other vehicles circulates and pressurizes refrigerant through the air conditioning system. Specifications for the Four Seasons compressor meet or exceed OE levels.
- Validated for performance equivalent to 100,000 miles of use
- Pre-charged with 3 ounces of PAG oil and compatible with R134a or R1234yf systems
- Individually vacuum, pressure and helium mass spectrometer tested for a leak-free system
- Sealing washers (O-rings) for R12, R134A and R1234yf systems come with the compressor
- Clutch included
Quick facts
- Part: Four Seasons 58228 A/C compressor
- Fits: the 1987 Chevrolet Camaro and other vehicles
- Condition: New
Warm air from the vents, a noisy compressor or a clutch that will not engage can mean the compressor is worn, though the high-pressure switch or the clutch relay can be behind those signs too, so find the cause before you replace it.
Fits
A new GM R4 compressor, it fits the 1987 Chevrolet Camaro, the 1991-1993 Chevrolet P30 and the 1991-1993 GMC P3500. Driving something else? Look up your model and year in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 5.000 in
- Pulley: 1 groove, V-belt, 0.500 in belt width
- Outlet length: 127 mm
- Mounting type: Case mount
- Coil clock position: 9
Build and materials
- Compressor type: GM R4
- Condition: New
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 150

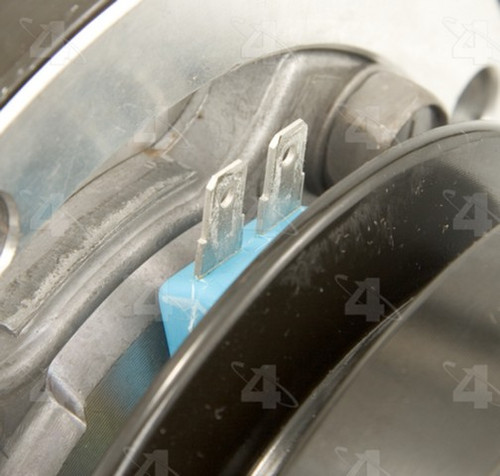

- Coil voltage: 12 V DC, spade connector
- Country of origin: Mexico
In the box
One A/C compressor with clutch, plus one short sealing washer pilot, one long sealing washer pilot, two red sealing washers and one green sealing washer. The high-pressure switch and mounting hardware are not included; plan on new bolts. This listing is one compressor, and each vehicle takes one.
Installation notes
- The oil pre-charge reduces install time and simplifies the job.
- An installation kit is provided with each compressor; refer to it.
- Due to new enhancements, the compressor may differ in appearance from OE.
Frequently Asked Questions
Is this Camaro ac compressor right for a 1987 Chevrolet Camaro?
Yes, Four Seasons 58228 is listed for the 1987 Chevrolet Camaro, which takes one. For another model, use the "Vehicles it fits" section.
What oil is already in this Four Seasons ac compressor?
Four Seasons 58228 comes pre-charged with 3 ounces of PAG oil. The compatible refrigerant oil type is PAG 150.
Is the clutch included with this A/C compressor?
Yes, the clutch is included. The high-pressure switch is not included, and neither is mounting hardware.
What size is the pulley on this compressor?
On Four Seasons 58228 the pulley is 5.000 in across the outside, with one groove for a V-belt 0.500 in wide.
How is this A/C compressor tested for leaks?
Each compressor is individually vacuum, pressure and helium mass spectrometer tested to ensure a leak-free system.
