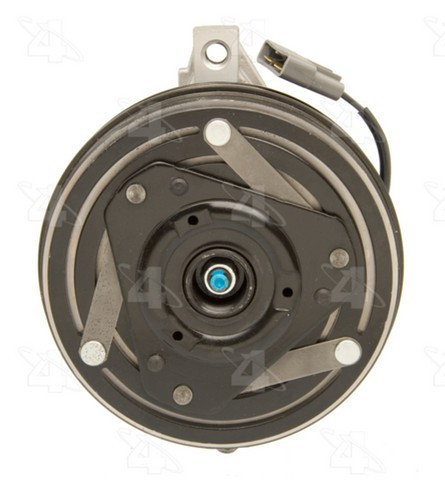

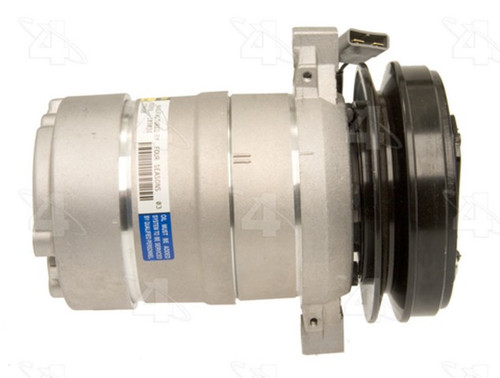

Four Seasons 58269 A/C compressor for the 1985-1986 Chevrolet Cavalier and other vehicles compresses refrigerant and moves it through the air conditioning system. It is a new GM HR6 compressor, built to OE-level specifications.
- Validated for performance equivalent to 100,000 miles
- Individually vacuum, pressure and helium mass spectrometer tested for a leak-free system
- Compatible with R134a or R1234yf refrigerant systems
- Clutch included, with a 12 V DC coil
Quick facts
- Part: Four Seasons 58269 A/C compressor
- Fits: 1985-1986 Chevrolet Cavalier and other vehicles
- Condition: New
Warm air from the vents, a noisy compressor or a clutch that no longer engages can point to a failing compressor. A low refrigerant charge, a blown fuse or relay, or a faulty high-pressure switch can bring on the same symptoms too, so find the cause before buying a new compressor.
Fits
This A/C compressor is a direct-fit replacement for the 1985-1986 Chevrolet Cavalier, the 1984-1986 Cadillac Cimarron and the 1985 Pontiac J2000 Sunbird. A 1985-1986 Chevrolet Cavalier takes one compressor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 5.500 in
- Belt width: 0.500 in
- Pulley: 1 groove, V-belt
- Mounting: Type IV (metric threads), 2 threaded ears, no middle ear
- Outlet C length: 140 mm
Build and materials
- Condition: New
- Compressor type: GM (HR6)
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 150
- Clutch: included, 12 V DC coil
- Connector type: spade
- Country of origin: Mexico
In the box
One A/C compressor with its clutch. The high-pressure switch and mounting hardware are not included, and old mounting hardware may not be reusable, so plan on new pieces.
Installation notes
- Pre-charged with 3 ounces of PAG oil, which reduces install time.
- Two sealing washers (24354) and the O-rings needed for R12, R134A or 1234yf installation come with the compressor.
Interchange: CWK620239 · 275618 · T58269 · 271502 · 620239 · 11158269 · CS0097 · 1131459 · 1136013 · 1136424 · 1136463 · 12322323 · 12323602 · 12332680 · 701639 · AC1701639 · A75618 · 1420239
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
CWK620239, 275618, T58269, 271502, 620239, 11158269, 58269, CS0097, 1131459, 1136013, 1136424, 1136463, 12322323, 12323602, 12332680, 701639, AC1701639, A75618, 1420239
Frequently Asked Questions
Is this the right A/C compressor for the 1985-1986 Chevrolet Cavalier?
Yes. Four Seasons 58269 fits the 1985-1986 Chevrolet Cavalier, and that car takes one compressor.
Does this Four Seasons A/C compressor include the clutch?
Yes, Four Seasons 58269 comes with its clutch, two sealing washers and the O-rings for installation; the high-pressure switch and mounting hardware are not included.
How is each Four Seasons compressor tested for leaks?
Each compressor is individually vacuum tested, pressure tested and helium mass spectrometer tested to confirm a leak-free system.
Does this compressor come with oil already in it?
Yes. This compressor is pre-charged with 3 ounces of PAG oil, and PAG 150 is listed as the compatible refrigerant oil type.
What size pulley and belt does this compressor take?
The pulley has one groove for a V-belt, with a 5.500 in outside diameter and a 0.500 in belt width.
