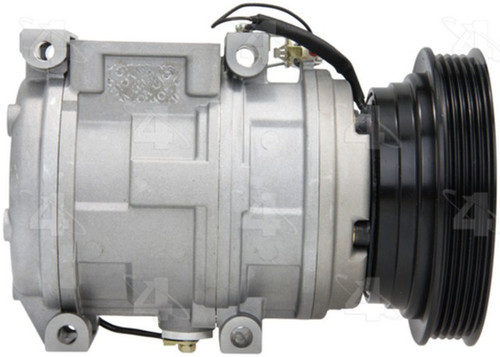

Four Seasons 58398 A/C compressor for the 1986-2001 Toyota Camry and other vehicles circulates refrigerant through the air conditioning system. It is a new Denso 10PA17C compressor built to meet or exceed OE specifications.
- Individually vacuum, pressure and helium mass spectrometer tested for leaks
- Validated to deliver performance equivalent to 100,000 miles
- Works in R134a or R1234yf refrigerant systems
- Clutch and switch included with the compressor
Quick facts
- Part: Four Seasons 58398 A/C compressor
- Fits: 1986-2001 Toyota Camry and other vehicles
- Condition: New
Warm air from the vents, a noisy compressor or a clutch that does not engage can mean the compressor is wearing out. A refrigerant leak, a blocked orifice tube or expansion valve, or a relay fault can be behind them too, so find the cause before buying. If the compressor is the cause, this one replaces it.
Fits
It is a direct-fit replacement ac compressor for the 1986-2001 Toyota Camry, the 1999-2001 Toyota Solara and the 1993-1999 Toyota Celica. These cars take one compressor apiece.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 5.250 in
- Pulley grooves: 5
- Pulley belt type: Serpentine
- Mounting type: Tangent mount
- Outlet length: 133 mm
Build and materials
- Compressor type: Denso 10PA17C
- Coil voltage: 12 V DC
- Connector type: Spade
- Compatible refrigerant oil: PAG 46
- Condition: New
- Country of origin: Mexico
In the box
One compressor with its clutch and switch, plus the O-rings and sealing washers needed to install it, including compressor manifold gasket 24156. Mounting hardware is not included, so plan on new bolts.
Installation notes
- Pre-charged with 3 ounces of PAG oil, which reduces install time.
- May require use of the OE manifold.
Frequently Asked Questions
Is this the right compressor for the 1986-2001 Toyota Camry?
Yes. Four Seasons 58398 is a direct-fit replacement for the 1986-2001 Toyota Camry, and the car takes one compressor.
Is this the right ac compressor for a 2000 Toyota Camry?
Yes. A 2000 model year falls inside the 1986-2001 Toyota Camry years this compressor fits.
Does the Four Seasons compressor come with a clutch and O-rings?
Yes, Four Seasons 58398 includes the clutch, the switch, and the O-rings and sealing washers needed for installation; mounting hardware is not included.
What oil and refrigerant does this Four Seasons ac compressor use?
It comes pre-charged with 3 ounces of PAG oil, and PAG 46 is the compatible oil type. It works with R134a or R1234yf systems.
How many grooves does the pulley on this compressor have?
The pulley has 5 grooves and a 5.250 in outside diameter, and it runs a serpentine belt.
