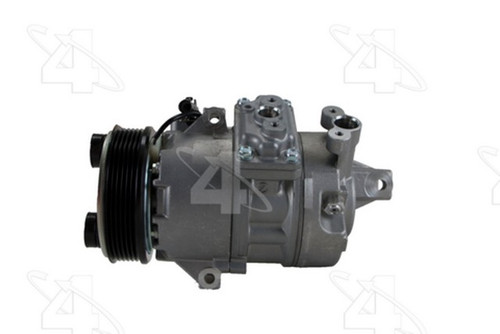

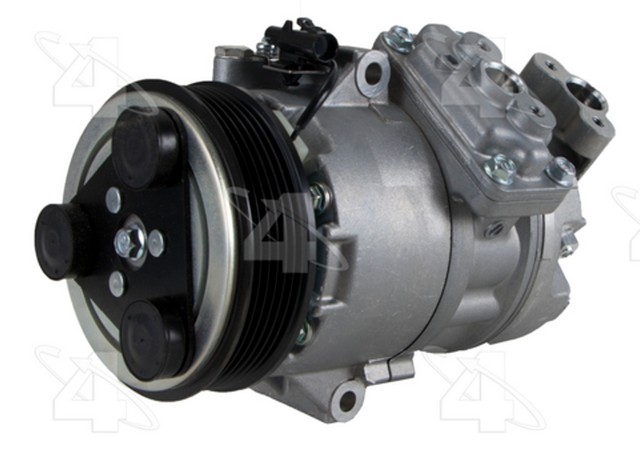

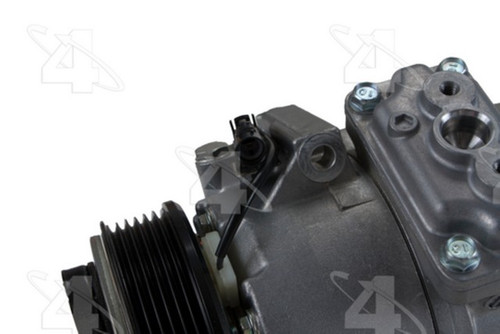

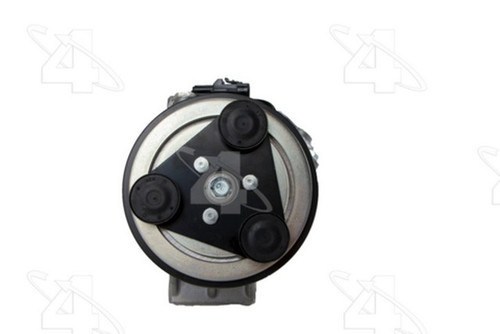

Four Seasons 68469 A/C compressor for the 2009-2013 Suzuki Grand Vitara and other vehicles pumps refrigerant through the air conditioning system. The new compressor includes its clutch and is built to original equipment standards.
- Durability tested to the equivalent of 100,000 miles
- Pre-charged with 3 ounces of PAG oil and compatible with R134a and R1234yf systems
- Pin connector designed to help eliminate splicing during installation
- Sealing washers and O-rings suited to R12, R134a and R1234yf applications
- Six-groove pulley for a serpentine belt
Quick facts
- Part: Four Seasons 68469 A/C compressor
- Fits: 2009-2013 Suzuki Grand Vitara and other vehicles
- Condition: New
Weak cooling, a grinding or rattling noise from the compressor, or a clutch that stays disengaged can all be signs of wear. Other A/C parts can produce the same symptoms, so with the engine off and cool, look over the belt, the clutch and the fittings for damage or oily residue before you replace the compressor. Pressure tests and any work that opens the A/C lines belong in a shop.
Fits
This is an ac compressor for the 2009-2013 Suzuki Grand Vitara and the 2010-2013 Suzuki Kizashi. The 2009-2013 Suzuki Grand Vitara takes one, and so does the 2010-2013 Suzuki Kizashi.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 4.375 in
- Pulley grooves: 6, serpentine belt
- Mounting type: 3 Tangent One on Rear Head
- Outlet C length: 110 mm
- Coil voltage: 12 V DC
Build and materials
- Compressor type: Calsonic/Zexel CSV614
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 46
- Connector type: Pin
- Condition: New
- Country of origin: China
In the box
One A/C compressor with its clutch, one O-ring 24661 and one O-ring 24681. Mounting hardware and a switch are not included, so plan on new bolts.
Interchange: C2450 · C2633 · 275308 · T68469 · 645026 · 204883 · AC1204883 · 6512917 · 7512917 · A75308 · 891588 · 140456NEW · 7422126 · 9520076KA0 · 9520076KA1 · 284806T1NEW · CO29069C · CO29069RO · CO29069Z
This part cross-references / interchanges with the following part numbers:
C2450, C2633, 275308, T68469, 645026, 68469, 204883, AC1204883, 6512917, 7512917, A75308, 891588, 140456NEW, 7422126, 9520076KA0, 9520076KA1, 284806T1NEW, CO29069C, CO29069RO, CO29069Z
Frequently Asked Questions
Does the Four Seasons ac compressor come with the clutch?
Yes. Four Seasons 68469 includes the clutch, plus O-rings 24661 and 24681. Mounting hardware and a switch are not included.
Does the Four Seasons compressor come with oil already in it?
Yes. Four Seasons 68469 comes with 3 ounces of PAG oil already in it and works with R134a and R1234yf systems.
Does Four Seasons 68469 fit the 2010-2013 Suzuki Kizashi?
Yes. Four Seasons 68469 is listed for the 2010-2013 Suzuki Kizashi, and that car takes one compressor.
What kind of pulley does this A/C compressor have?
Four Seasons 68469 has a six-groove pulley with a 4.375 in outside diameter, made for a serpentine belt.
Does this A/C compressor replace number 9520076KA0?
Yes. 9520076KA0 is one of the numbers this compressor replaces, along with 9520076KA1 and the others on the Interchange line.
