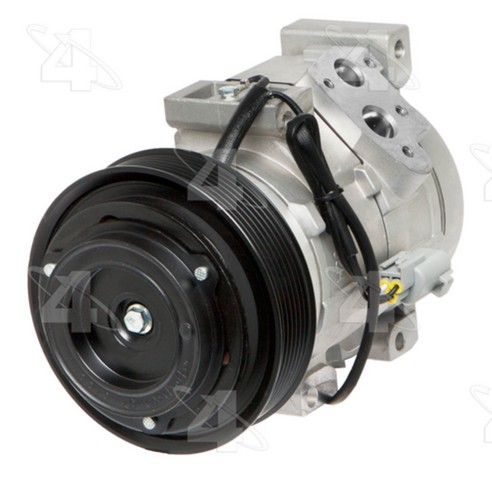

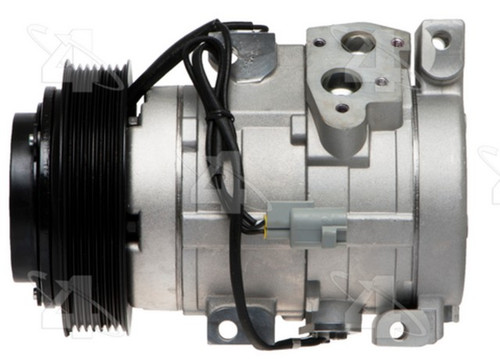

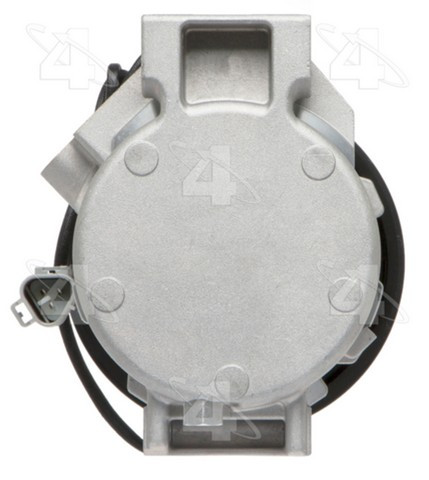

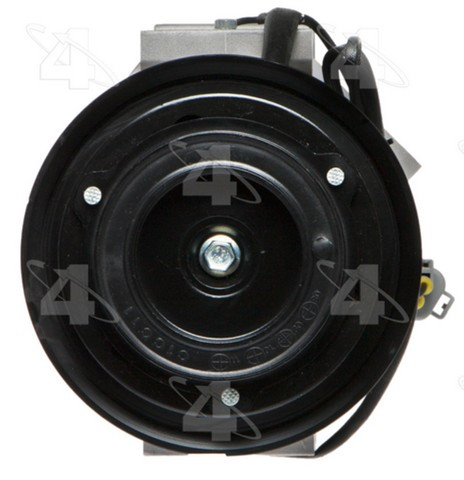

Four Seasons 78388 A/C compressor for the 2002-2006 Toyota Camry and other vehicles compresses refrigerant and moves it through the air conditioning system. The Four Seasons compressor is a new Denso 10S17C type with a 12-volt DC coil.
- Validated for performance equivalent to 100,000 miles of use
- Compatible with R134a or R1234yf systems
- Individually vacuum, pressure and helium mass spectrometer tested for leaks
- Tangent-mount design with a pulley for a serpentine belt
Quick facts
- Part: Four Seasons 78388 A/C compressor
- Fits: 2002-2006 Toyota Camry and other vehicles
- Condition: New
Warm air from the vents, a grinding or squealing noise, or a clutch that won't engage can mean a worn compressor, though a leak or low refrigerant can show up the same way. Before replacing it, look over the compressor, fittings and belt with the engine off and cool for oily residue or a damaged pulley; a shop can test pressures and clutch operation.
Fits
It is an ac compressor for the 2002-2006 Toyota Camry, the 2001-2007 Toyota Highlander and the 2002-2008 Toyota Solara, built to OE-level specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting type: Tangent mount
- Pulley: 7 grooves, serpentine belt
- Outside pulley diameter: 5.125 in
- Outlet C length: 130 mm
Build and materials
- Compressor type: Denso 10S17C
- Compatible refrigerant oil: PAG 46
- Connector type: Pin
- Clutch: included
- Speed sensor: included
- Condition: New
- Country of origin: Mexico
In the box
One compressor with its clutch and speed sensor, plus one O-ring 24681 and one O-ring 24661. Mounting hardware is not included, so plan on new bolts. This listing holds one compressor, which is the quantity each vehicle takes.
Installation notes
- Arrives pre-charged with 3 ounces of PAG oil, which reduces install time and simplifies the job.
- May require use of the OE manifold.
Frequently Asked Questions
Is this Four Seasons ac compressor compatible with R1234yf systems?
Yes. Four Seasons 78388 works with R134a or R1234yf systems and comes pre-charged with 3 ounces of PAG oil.
Is 78388 a 2003 Toyota Camry ac compressor?
Yes. Four Seasons 78388 fits the 2002-2006 Toyota Camry, which includes the 2003 model year.
Does this work as a Toyota Highlander ac compressor for the 2001-2007 model years?
Yes. This compressor fits the 2001-2007 Toyota Highlander.
Which O-rings come with this compressor?
Two O-rings are included, one 24681 and one 24661, along with the clutch and speed sensor. Mounting hardware is not included.
Do I need the OE manifold or a DeSlugger with this compressor?
It may require use of the OE manifold. On vehicles with a low-mount compressor, DeSlugger 36140 is recommended to help prevent compressor damage; it is sold separately.
