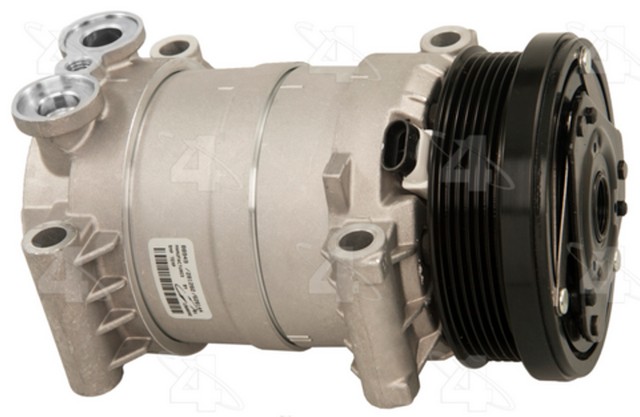

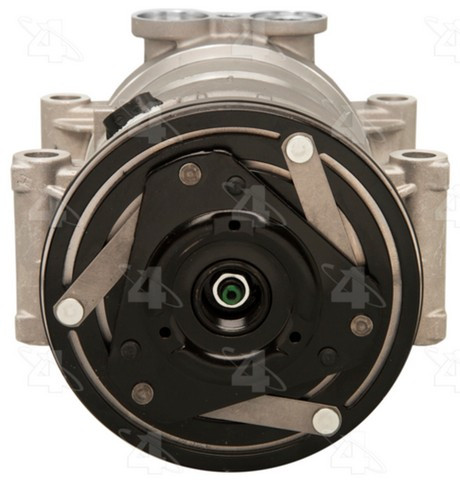

Four Seasons 88949 A/C compressor for the 1996-2005 Chevrolet Astro and other vehicles pumps and pressurizes refrigerant through the air conditioning system. As a ten-cylinder GM HT6 design, it runs quieter and more efficiently than a six-cylinder compressor.
- 210 CC displacement
- Dowel pins in the case to prevent case twisting and leaks
- Validated for performance equivalent to 100,000 miles
- Pre-charged with 3 ounces of PAG oil; compatible with R134a or R1234yf systems
- Individually vacuum, pressure and helium mass spectrometer tested for a leak-free system
Quick facts
- Part: Four Seasons 88949 A/C compressor
- Fits: 1996-2005 Chevrolet Astro and other vehicles
- Condition: New
Weak cooling, a noisy compressor or a clutch that does not engage can mean the compressor is wearing out. A refrigerant leak elsewhere in the system can give you weak cooling too, so these signs alone do not prove the compressor is at fault.
Fits
It fits the 1996-2005 Chevrolet Astro and the 1996-2005 GMC Safari, and each takes one compressor. The compressor meets or exceeds OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 4.625 in
- Pulley grooves: 6
- Outlet C length: 117 mm
- Mounting type: Tangent mount
- Coil clock position: 11
- O-ring A: quantity 2, number 24354 (sealing washer)
Build and materials
- Compressor type: GM HT6, 10 cylinders
- Pulley belt type: Serpentine
- Coil voltage: 12 V DC
- Compatible refrigerant oil: PAG 46
- Clutch: included
- Condition: New
- Country of origin: Mexico
In the box
One A/C compressor with its clutch. Mounting hardware and the high-pressure switch are not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 281282 · 628144 · 11188949 · 967455 · 1136518 · 1136556 · 19188298 · 89018786 · 89018949 · 89019234 · 89019373 · 707052P · AC1707052P · 6511337 · A01282 · 7410468 · WPR5618RM
This part cross-references / interchanges with the following part numbers:
281282, 628144, 11188949, 88949, 967455, 1136518, 1136556, 19188298, 89018786, 89018949, 89019234, 89019373, 707052P, AC1707052P, 6511337, A01282, 7410468, WPR5618RM
Frequently Asked Questions
Is the 88949 an ac compressor for the 1996-2005 Chevrolet Astro?
Yes. Four Seasons 88949 fits the 1996-2005 Chevrolet Astro, and the vehicle takes one compressor.
Is this the right ac compressor for the 1996-2005 GMC Safari?
Yes. Four Seasons 88949 fits the 1996-2005 GMC Safari, and the vehicle takes one compressor.
Does this Four Seasons compressor come with oil?
Yes. This compressor is pre-charged with 3 ounces of PAG oil, and the compatible refrigerant oil type is PAG 46.
Does the 88949 come with the clutch and mounting bolts?
The clutch is included. Mounting hardware and the high-pressure switch are not included.
Can the 88949 be used on an R1234yf system?
Yes. Four Seasons 88949 is compatible with R134a or R1234yf systems.
