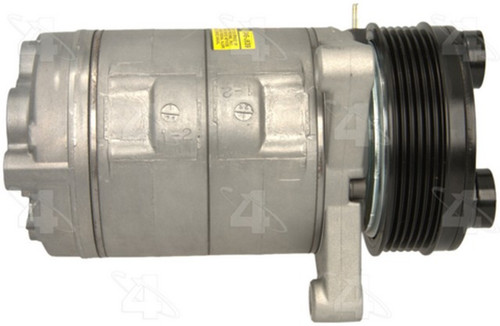

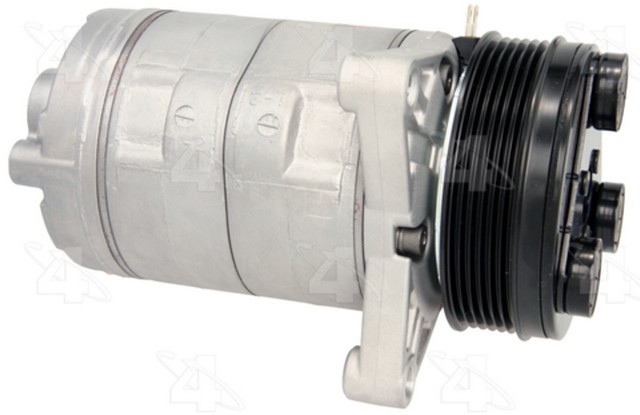

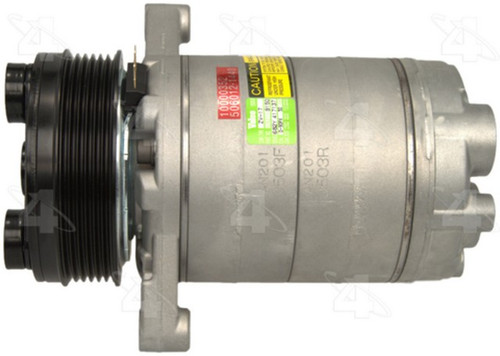

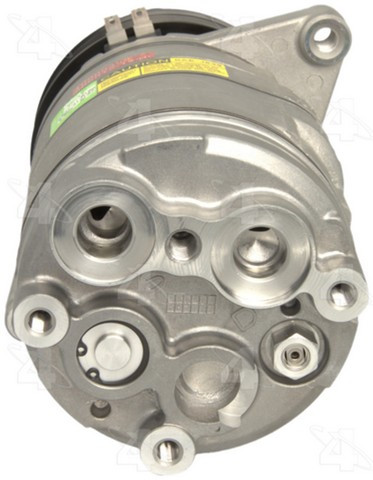

Four Seasons 88969 A/C compressor for the 1992-1994 Chevrolet G10 and other vehicles circulates refrigerant through the A/C system. This new Four Seasons ac compressor is a GM HR6 type and comes with its clutch.
- 10-cylinder design with 210 CC displacement, against 170 CC for a 6-cylinder compressor, for more efficient and quieter running
- Dowel pins in the case to prevent case twisting and leaks
- Validated to deliver performance equivalent to 100,000 miles
- Works in R134a or R1234yf systems
- Individually vacuum, pressure and helium mass spectrometer tested for a leak-free system
Quick facts
- Part: Four Seasons 88969 A/C compressor
- Fits: the 1992-1994 Chevrolet G10 and other vehicles
- Condition: New
Warm air from the vents or a noisy compressor can be signs the unit is wearing out. A low refrigerant charge, a leaking line or a faulty pressure switch can be behind the same signs, so find the cause before buying a new compressor.
Fits
It is listed for a wide range of Chevrolet and GMC models, led by the 1992-1994 Chevrolet G20 and the 1992-1994 Chevrolet G30. Open the "Vehicles it fits" section to check your exact model and engine. OE specifications are met or exceeded.
Specifications
Fit and size
- Quantity per vehicle: 1

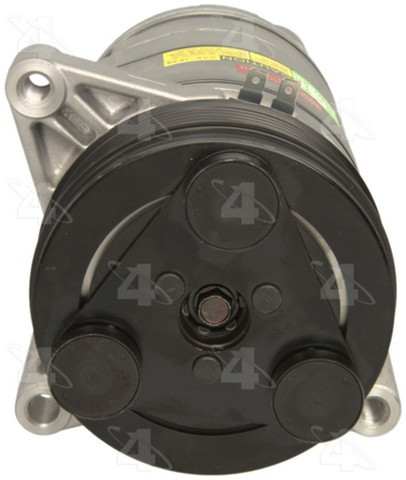

- Outside pulley diameter: 4.250 in
- Pulley grooves: 6
- Mounting type: Type VII (Rear Bracket)
- Outlet C length: 108 mm
- Coil voltage: 12 V DC

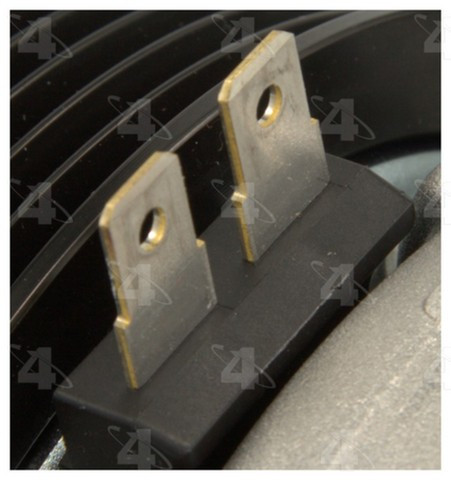

- Connector type: Spade
Build and materials
- Compressor type: GM HR6
- Condition: New
- Clutch: included
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 46
- Pulley belt type: Serpentine
- High-pressure switch: not included
- Country of origin: Mexico
In the box
One compressor with its clutch, plus sealing washers: two 24354, one green 24357 and one yellow 24358. Each vehicle takes one compressor. The switch and mounting hardware are not included, so plan on new bolts, since the old ones may not be reusable.
Installation notes
- Comes pre-charged with 3 ounces of PAG oil, which reduces install time.
Interchange: C364 · C368 · 275466 · 628244 · 11188969 · 963093 · 113186 · 707007 · AC1707007 · 6511329 · 6511381 · A75466 · 2511N · WPR1075RMB
This part cross-references / interchanges with the following part numbers:
C364, C368, 275466, 628244, 11188969, 88969, 963093, 113186, 707007, AC1707007, 6511329, 6511381, A75466, 2511N, WPR1075RMB
Frequently Asked Questions
Is this a Chevy G20 ac compressor that fits the 1992-1994 Chevrolet G20?
Yes. Four Seasons 88969 is listed for the 1992-1994 Chevrolet G20. Open the "Vehicles it fits" section to check your exact model and engine.
Does the Four Seasons compressor come with the clutch and sealing washers?
Yes. Four Seasons 88969 includes its clutch and sealing washers. The high-pressure switch and mounting hardware are not included.
Which refrigerant and oil does the 88969 compressor use?
It is compatible with R134a or R1234yf systems and comes pre-charged with 3 ounces of PAG oil. The listed compatible oil type is PAG 46.
What are signs a GM HR6 A/C compressor is wearing out?
Warm air from the vents or a noisy compressor can be signs of wear. Pressure tests need a shop, since the A/C system holds pressurized refrigerant.
Is the 88969 compressor leak tested?
Yes. Each unit is individually vacuum, pressure and helium mass spectrometer tested to ensure a leak-free system. Dowel pins in the case also help prevent case twisting and leaks.
