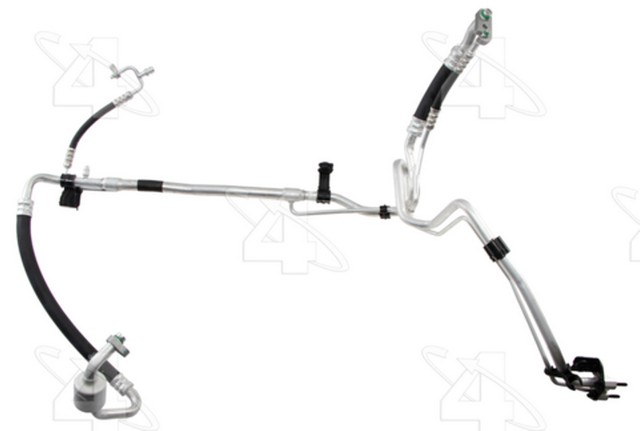

Four Seasons 66516 front A/C suction and liquid line hose assembly for the 2015-2018 Kia Sedona V6 3.3L carries refrigerant between components of the A/C system. This internal heat exchange assembly, also called an A/C suction line, covers both the suction and liquid lines.
- Double wall barrier hose compatible with R1234YF, R134A or R12
- Crimp fitting connection
- Internal heat exchange (IHX) design with a muffler and a bracket
- Application specific design
Quick facts
- Part: Four Seasons 66516 A/C suction and liquid line hose assembly
- Also called: A/C suction line
- Fits: 2015-2018 Kia Sedona V6 3.3L
- Position: Front
- Material: Aluminum / Rubber
- Condition: New
Weak cooling or a refrigerant leak near the hose or its fittings can mean this assembly has worn out. These signs alone do not prove the hose is the problem, since a failing compressor can cause weak cooling too.
Fits
This listing is one hose assembly, and the 2015-2018 Kia Sedona V6 3.3L takes one.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1

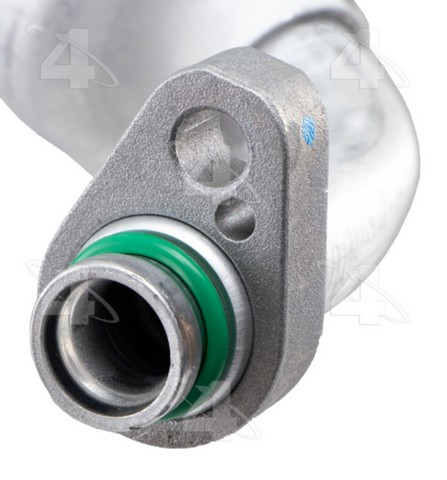

- End fittings: P-Nut fitting on both ends
Build and materials
- Type: suction and liquid line hose assembly with internal heat exchange (IHX)
- Material: Aluminum / Rubber
- Connection: crimp fitting
- Refrigerant type: R134A
- Condition: New
- Country of origin: China
In the box
One hose assembly with fittings, a service port and O-rings: one 24682, two 24629, one 24641 and one 24109.
Interchange: 211427 · 795092 · 97759A9000 · A83034 · HA112752C
This part cross-references / interchanges with the following part numbers:
211427, 795092, 66516, 97759A9000, A83034, HA112752C
Frequently Asked Questions
Does the Four Seasons 66516 hose assembly fit the 2015-2018 Kia Sedona V6 3.3L?
Yes. Four Seasons 66516 is a front A/C suction and liquid line hose assembly for the 2015-2018 Kia Sedona V6 3.3L, and that vehicle takes one.
What seals come with the Four Seasons 66516 hose assembly?
Four Seasons 66516 comes with O-rings: one 24682, two 24629, one 24641 and one 24109. It also includes fittings and a service port.
Is the hose on this assembly compatible with R1234YF refrigerant?
Yes. The double wall barrier hose is compatible with R1234YF, R134A or R12. The assembly's refrigerant type is R134A.
How can I check this A/C hose assembly for leaks?
With the engine off and cool, look for oily residue, cracks or damage along the hose and at the fittings. A shop can leak-test the A/C system.
Are a muffler and bracket part of this IHX hose assembly?
Yes. This internal heat exchange hose assembly comes with a muffler and a bracket.
