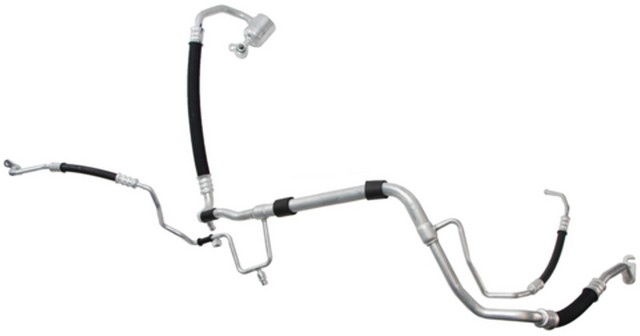

Four Seasons 66970 A/C suction and liquid line hose assembly for the 2017-2019 Kia Sportage 4-cylinder 2.4L carries refrigerant through the A/C system. The suction and liquid lines come as one internal heat exchange (IHX) hose assembly.
- Internal heat exchange (IHX) hose assembly with a muffler
- Double wall barrier hose rated for R1234YF, R134A and R12 refrigerant
- Crimp fitting connection
- Gaskets, o-rings or seals, fittings and a service port included
- Application specific design
Quick facts
- Part: Four Seasons 66970 A/C suction and liquid line hose assembly
- Also called: A/C suction line
- Fits: 2017-2019 Kia Sportage 4-cylinder 2.4L
- Material: Aluminum / Rubber
- Condition: New
Weak cooling or oily residue near a line fitting can mean refrigerant is escaping from a hose. Those signs alone don't prove this assembly is at fault; a leaking condenser, for one, also lets refrigerant out.
Fits
This hose assembly is a direct-fit replacement for the 2017-2019 Kia Sportage 4-cylinder 2.4L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- End 1: P-Nut fitting
- End 2: Flange
- Refrigerant type: R134A, R1234YF
Build and materials
- Type: suction and liquid line hose assembly with internal heat exchanger
- Material: Aluminum / Rubber
- Hose: double wall barrier
- Condition: New
- Country of origin: China
In the box
One hose assembly with fittings, a service port, and gaskets, o-rings or seals. A bracket is not included, and an old one may not be reusable.
Interchange: 97775D9451 · 97775D9452 · 211881 · A83650
This part cross-references / interchanges with the following part numbers:
66970, 97775D9451, 97775D9452, 211881, A83650
Frequently Asked Questions
Does the Four Seasons 66970 fit the 2017-2019 Kia Sportage 4-cylinder 2.4L?
Yes. Four Seasons 66970 is listed for the 2017-2019 Kia Sportage 4-cylinder 2.4L, which takes one.
Do the o-rings and fittings come with this A/C hose assembly?
Yes. This hose assembly comes with fittings, a service port, and gaskets, o-rings or seals. A bracket is not included.
Is this A/C suction line made for R134A or R1234YF refrigerant?
Yes. Four Seasons 66970 is listed for R134A and R1234YF systems, and its double wall barrier hose also works with R12.
How do I spot a damaged A/C hose assembly?
With the engine off and cool, look for cracks, kinks, dents or oily residue on the hose and fittings. A shop can leak-test the system, since the refrigerant needs proper handling.
Does the Four Seasons 66970 have a service port and a muffler?
Yes. Four Seasons 66970 includes a service port, a switch service port and a muffler.
