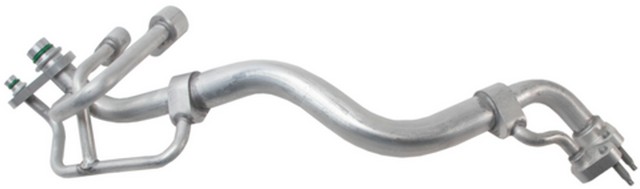

Four Seasons 66114 A/C suction and liquid line hose assembly for the 2014-2016 Land Rover LR4 V6 3.0L carries refrigerant through the A/C system. Also called an A/C suction line, it is an internal heat exchange assembly that covers the suction and liquid lines.
- Internal heat exchange (IHX) hose assembly for the suction and liquid lines
- Double wall barrier hose for R1234YF, R134A or R12 refrigerant
- Crimp fitting connection with a P-Nut fitting on each end
- Application specific design
- Gaskets, O-rings and seals included
Quick facts
- Part: Four Seasons 66114 A/C suction and liquid line hose assembly
- Also called: A/C suction line
- Fits: 2014-2016 Land Rover LR4 V6 3.0L
- Material: Aluminum
- Condition: New
Weak cooling or oily residue at a fitting can mean this hose assembly is worn, though a failing compressor or a faulty condenser can also be behind weak cooling. Rule those parts out before you replace the hose assembly.
Fits
This hose assembly is a direct-fit replacement for the 2014-2016 Land Rover LR4 V6 3.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Both end types: P-Nut Fitting
- Style: hose assembly with IHX
Build and materials
- Material: Aluminum
- Refrigerant type: R134A, R1234YF
- Connection: crimp fitting
- Hose: double wall barrier
- Condition: New
- Country of origin: China
In the box
One hose assembly with its fittings, gaskets or seals and O-rings (two of 24611 and two of 24150). A bracket, muffler and service port are not included. This listing holds one assembly, and the 2014-2016 Land Rover LR4 V6 3.0L takes one.
Interchange: 211012 · LR050912
Frequently Asked Questions
Does the Four Seasons 66114 hose assembly fit the 2014-2016 Land Rover LR4 V6 3.0L?
Yes. Four Seasons 66114 is an application specific design for the 2014-2016 Land Rover LR4 V6 3.0L, which takes one assembly.
Does the Four Seasons 66114 come with O-rings?
Yes. Four Seasons 66114 includes two 24611 O-rings and two 24150 O-rings, plus gaskets or seals and the fittings. A bracket, muffler and service port are not included.
Which refrigerants work with this suction and liquid line hose assembly?
It is listed for R134A and R1234YF. The double wall barrier hose is compatible with R1234YF, R134A or R12.
How can I tell if an internal heat exchange A/C hose assembly is leaking?
Weak cooling or oily residue around the crimped fittings can point to a leak. A shop can pressure-test the system, since checking A/C lines means opening or running the system.
Does Four Seasons 66114 cross-reference to 211012 or LR050912?
Yes. Both 211012 and LR050912 are listed interchange numbers for this hose assembly.
