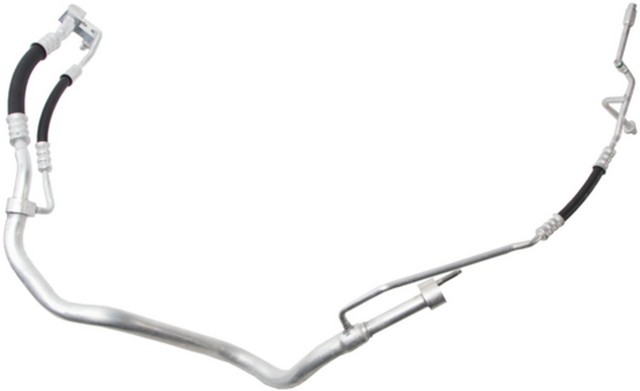

Four Seasons 66883 A/C suction and liquid line hose assembly for the 2015-2017 Chrysler 200 4-cylinder 2.4L carries refrigerant through the A/C system. Also called an A/C suction line, it replaces the hose when the original leaks or is damaged.
- Internal heat exchange (IHX) design in one suction and liquid line assembly
- Gaskets, O-rings and seals come with the hose
- Double wall barrier hose for R1234YF, R134A or R12 refrigerant
- Crimp fitting connection
- Application-specific design
Quick facts
- Part: Four Seasons 66883 A/C suction and liquid line hose assembly
- Also called: A/C suction line
- Fits: 2015-2017 Chrysler 200 4-cylinder 2.4L
- Material: Aluminum / Rubber
- Condition: New
Oily stains or leaks at the hose or its fittings, a damaged hose, or an A/C that blows warm can all involve this assembly. Warm air alone does not prove the hose is at fault, since a worn compressor produces a similar symptom.
Fits
It is a direct-fit replacement for the 2015-2017 Chrysler 200 4-cylinder 2.4L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1

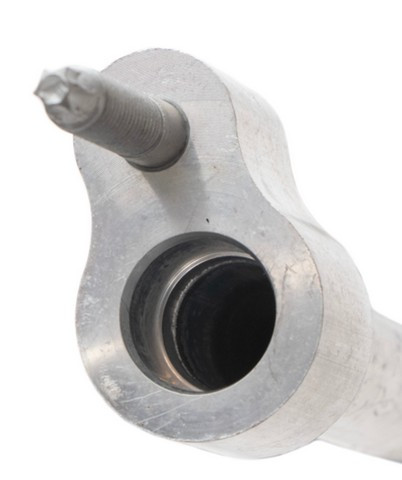

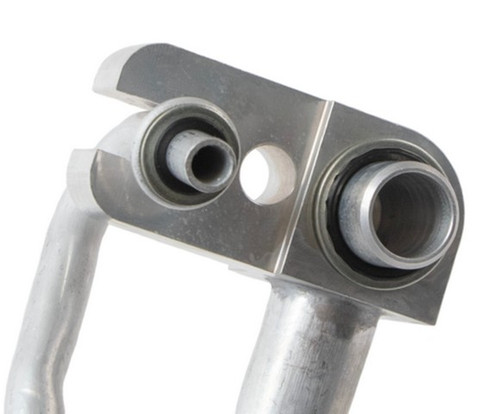

- End 1: flange

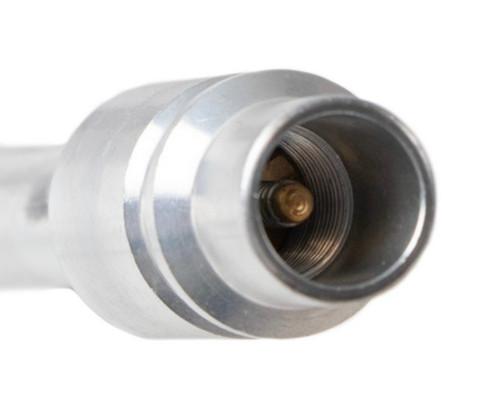

- End 2: P-nut fitting
- Refrigerant type: R1234YF
Build and materials
- Type: suction and liquid line hose assembly with IHX
- Material: Aluminum / Rubber
- Hose: double wall barrier
- Connection: crimp fitting
- Condition: New
- Country of origin: China
In the box

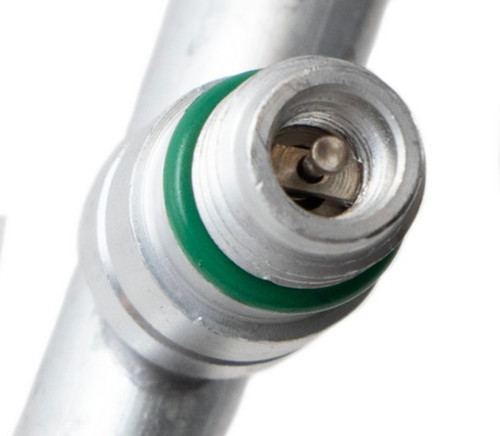

One hose assembly with its service port and fittings, plus one O-ring (24606) and three slim line sealing washers (two of 24401, one of 24404). A bracket and a muffler are not included.
Interchange: 68103137AB · 68103137AC · 68103137AD · 68103137AE · 68103137AF · 211794 · A83563 · HA112108C
This part cross-references / interchanges with the following part numbers:
68103137AB, 68103137AC, 68103137AD, 68103137AE, 68103137AF, 66883, 211794, A83563, HA112108C
Frequently Asked Questions
Is the Four Seasons 66883 hose assembly right for a 2015-2017 Chrysler 200 4-cylinder 2.4L?
Yes. Four Seasons 66883 is a direct-fit replacement for the 2015-2017 Chrysler 200 4-cylinder 2.4L, and the car takes one.
Does this A/C hose assembly come with O-rings and a service port?
Yes. It comes with a service port, fittings, one O-ring and three slim line sealing washers. A bracket and a muffler are not included.
Which refrigerants can this double wall barrier hose be used with?
The double wall barrier hose on Four Seasons 66883 is compatible with R1234YF, R134A or R12. R1234YF is the refrigerant type listed for this assembly.
How can I tell if this A/C hose assembly is leaking?
Look for oily residue or stains around the hose and its fittings with the engine off and cool. A shop can leak-test the system, since A/C lines should not be opened at home.
What kind of end fittings does this hose assembly have?
One end is a flange and the other is a P-nut fitting. The fittings connect to the hose with a crimp connection.
