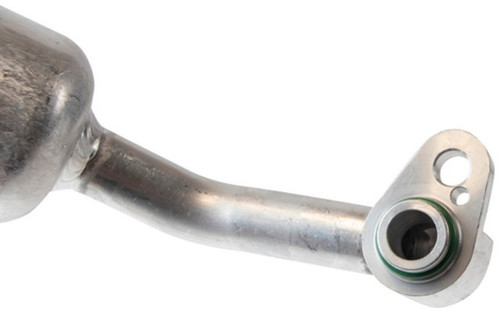

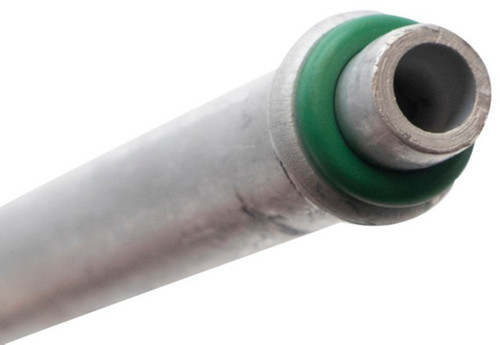

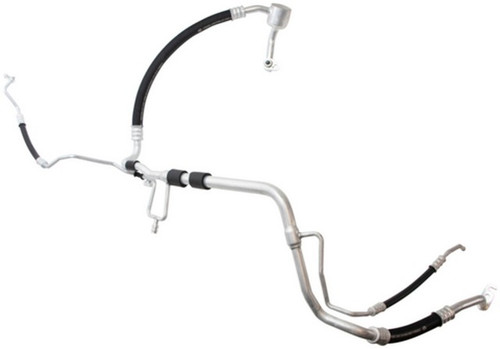

Four Seasons 66884 A/C suction and liquid line hose assembly for the 2017-2018 Hyundai Tucson 4-cylinder 2.0L carries refrigerant between the A/C system's components. This single assembly combines the suction and liquid lines with an internal heat exchanger and a muffler.
- Double wall barrier hose that works with R1234YF, R134A or R12
- Crimp fitting connection
- Internal heat exchange design with a muffler
- Switch service port included
- Gaskets, O-rings and seals included for installation
Quick facts
- Part: Four Seasons 66884 A/C suction and liquid line hose assembly
- Also called: A/C suction line
- Fits: 2017-2018 Hyundai Tucson 4-cylinder 2.0L
- Material: Aluminum and rubber
- Condition: New
Oily residue at a fitting, a cracked hose, a refrigerant leak or weak cooling can mean a worn A/C suction line. A low refrigerant charge, the compressor, the condenser or the expansion valve can produce weak cooling too, so find the cause before you buy.
Fits
This hose assembly is a direct-fit replacement for the 2017-2018 Hyundai Tucson 4-cylinder 2.0L, which needs one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Suction end: flange
- Other end: P-nut fitting
- O-rings: 5 in total (2 of 24109, 1 of 24167, 2 of 24629)
Build and materials
- Type: suction and liquid line hose assembly with internal heat exchanger
- Material: aluminum and rubber
- Refrigerant type: R134A
- Muffler: included
- Switch service port: included
- Condition: New
- Country of origin: China
In the box
One hose assembly with a muffler, a service port, fittings, and the gaskets and O-rings listed above. A bracket is not included; the old one may not be reusable, so plan on a new one if yours needs replacing.
Interchange: 97775D3401 · 211795
This part cross-references / interchanges with the following part numbers:
66884, 97775D3401, 211795
Frequently Asked Questions
Does the Four Seasons 66884 fit the 2017-2018 Hyundai Tucson 4-cylinder 2.0L?
Yes. Four Seasons 66884 fits the 2017-2018 Hyundai Tucson 4-cylinder 2.0L, and that vehicle takes one hose assembly.
Do I need to buy O-rings separately for this A/C hose assembly?
No. The O-rings and seals (two 24109, one 24167 and two 24629), fittings, muffler and service port are included; a bracket is not.
Which refrigerants is this hose assembly compatible with?
The double wall barrier hose is compatible with R1234YF, R134A or R12. The refrigerant type listed for Four Seasons 66884 is R134A.
Is oily residue at the fittings a sign this A/C hose assembly is leaking?
Yes, it can be. Oily residue or a cracked hose can mean a leak, though other A/C parts can leak too, and a shop can pressure-test the system to find the source.
Is this an internal heat exchange hose assembly?
Yes. It is a suction and liquid line assembly with an internal heat exchanger, a muffler and a switch service port, joined with crimp fitting connections.
