Rear Left ABS Wheel Speed Sensor for 2013-2018 Ram 3500 - Standard Ignition ALS2809

Be the first to review this product
$198.99
MPN: ALS2809
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

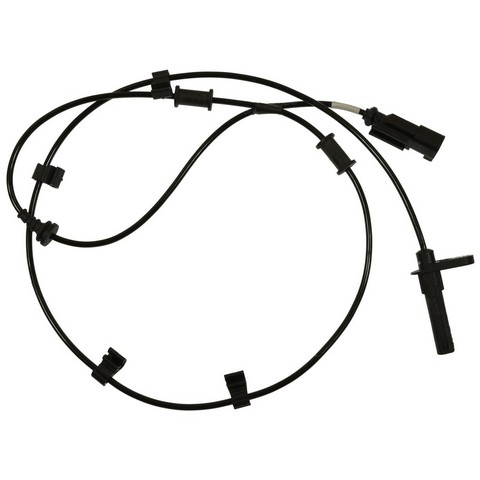

Standard Ignition ABS Wheel Speed Sensor P/N:ALS2809
Standard Ignition ABS Wheel Speed Sensor P/N:ALS2809
$198.99

Standard Ignition ALS2809 rear left ABS wheel speed sensor for the 2013-2018 Ram 3500 reads how fast the wheel turns and sends that signal to the ABS module.

  • Durable synthetic material made to withstand harsh operating conditions
  • Harness with grommets and wire clips for mounting and routing
  • Vehicle-tested for correct integration with electronic safety systems
  • Sealed connector for protection in harsh conditions

Quick facts

  • Part: Standard Ignition ALS2809 ABS wheel speed sensor
  • Fits: 2013-2018 Ram 3500
  • Position: Rear left
  • Material: Synthetic material
  • Condition: New

A failing wheel speed sensor can bring on the ABS or traction control warning light. Before you replace this sensor, rule out a damaged harness or connector and a damaged tone ring at the same wheel, because either can also light the ABS warning. This listing is one sensor for the rear left wheel; the rear right takes its own.

Fits

This sensor is engineered specifically for Ram vehicles and is a direct-fit replacement for the 2013-2018 Ram 3500.

Specifications

Fit and size

  • Position: Rear left
  • Quantity per application: 1
  • Harness length: 55 in (1397 mm)
  • Number of bolt holes: 1
  • Mounting location: Spindle
  • Mounting type: Bolt mount
  • Attachment method: Direct, snap fit

Build and materials

  • Material: Synthetic material
  • Connector: 1 rectangular, female
  • Terminals: 2 male blades
  • Condition: New
  • Country of origin: China

In the box

One ABS wheel speed sensor with its wiring harness. Mounting hardware and a dust shield are not included, so plan on a new bolt rather than reusing the old one.

Frequently Asked Questions

Does the Standard Ignition ALS2809 fit the 2013-2018 Ram 3500?

Yes. Standard Ignition ALS2809 is the rear left ABS wheel speed sensor for the 2013-2018 Ram 3500; the right side takes a separate sensor.

Does this Standard Ignition ABS wheel speed sensor come with its wiring harness?

Yes. It includes the wiring harness with grommets and wire clips. Mounting hardware and a dust shield are not included.

What kind of connector does the ALS2809 have?

Standard Ignition ALS2809 has one rectangular female connector with two male blade terminals. The connector is sealed for protection in harsh conditions.

Which warning lights can a failing rear left wheel speed sensor trigger?

The ABS or traction control warning light can come on when a wheel speed sensor stops sending a signal. A shop can test the circuit to confirm the cause.

Is the ALS2809 a bolt-on sensor?

Yes. It is a bolt mount with one bolt hole, located at the spindle, and it attaches by direct snap fit. The bolt itself is not included.
