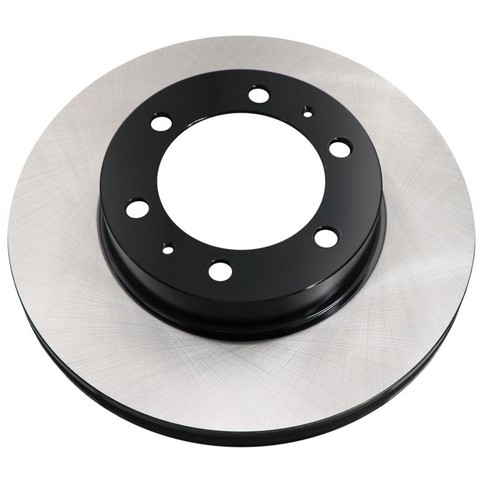

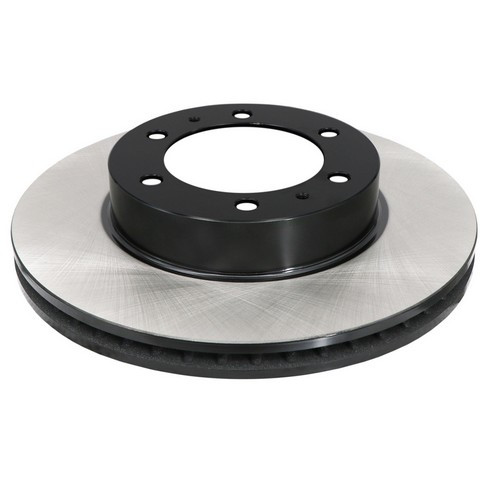

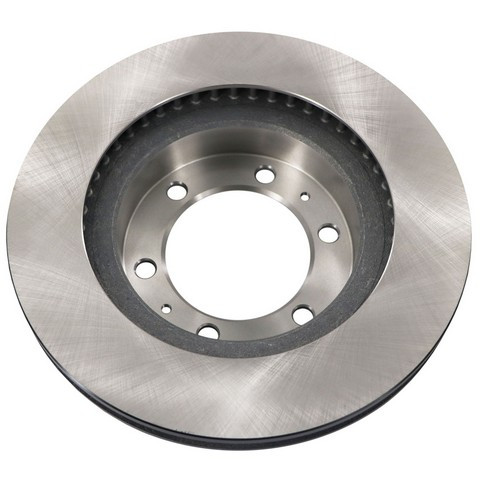

The ADVICS A6F007U front brake rotor for the 2005-2023 Toyota Tacoma and other vehicles is a vented rotor that gives the front brake pads a smooth, non-directional surface to clamp against when you stop.
A pulsing brake pedal, a steering wheel that shakes when you brake, or deep grooves worn into the braking surface can mean a front rotor is worn or warped. A sticking caliper can also bring on those signs, so they don't prove the rotor is at fault.
This OE-replacement disc brake rotor is a direct fit for the front of the 2005-2023 Toyota Tacoma, the 2003-2009 Toyota 4Runner and the 2007-2014 Toyota FJ Cruiser, and each of them takes two. This listing is one rotor, and the rotor on the other side of the front axle is normally replaced at the same time. The Buyer's Guide tab shows the other vehicles this rotor fits.
Fit and size
Build and materials
Is the ADVICS A6F007U the right brake disc for a 2005-2023 Toyota Tacoma?
Yes. The ADVICS A6F007U is a direct-fit front brake rotor for the 2005-2023 Toyota Tacoma, and the truck takes two, one per side.
Is this the front brake rotor for a 2003-2009 Toyota 4Runner or 2007-2014 Toyota FJ Cruiser?
Yes. This front rotor is a direct fit for both the 2003-2009 Toyota 4Runner and the 2007-2014 Toyota FJ Cruiser, and the Buyer's Guide tab shows the other vehicles it fits.
What are the ADVICS A6F007U rotor's diameter and bolt pattern?
The ADVICS A6F007U is 318.8 mm (12.551 in) across, with 6 lug holes on a 139.7 mm (5.5 in) bolt circle and a 108 mm center hole.
At what thickness should this 28 mm vented rotor be replaced?
This front rotor is 28.0 mm (1.102 in) thick when new and reaches its discard thickness at 26.0 mm (1.024 in), so replace it once it measures at or below that.
Does this front rotor come with an ABS tone ring?
No. This front rotor does not include an ABS tone ring.
