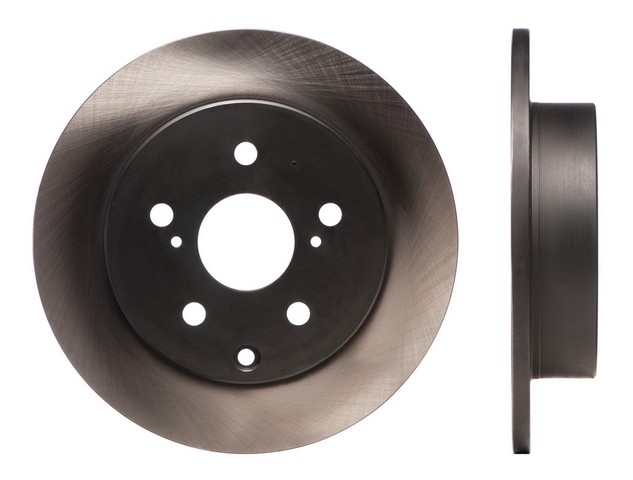

Get a fresh rear braking surface with the ADVICS OE Disc Brake Rotor A6R061 — a direct-fit rear rotor for the 2006-2018 Toyota RAV4 and the 2010-2012 Lexus HS250h. The rotor provides the friction surface the brake pads clamp against to slow the wheel.
The listed applications use two rotors per vehicle at the rear. Sold individually — replacing both sides together as a matched pair is recommended for even, balanced braking. Made in the United States.
Interchange: 120.44145 · 125.44145 · 320.44145F · 604-76134 · 42431-0R010 · 42431-42060
12044145 · 12544145 · 32044145F · 60476134 · 424310R010 · 4243142060 · PRT5922 · YH200504P · BR900360 · 980483 · BD126405
This part cross-references / interchanges with the following part numbers:
Is this the right brake rotor for a 2006-2018 Toyota RAV4?
Yes — it is a direct-fit rear rotor for the 2006-2018 Toyota RAV4 and the 2010-2012 Lexus HS250h. Check the Buyer's Guide tab to confirm your exact vehicle.
How many rotors do I need?
The listed applications use two rear rotors per vehicle. This rotor is sold individually, and replacing both sides of the rear axle together as a matched pair is recommended.
Is this a solid or vented rotor?
It is a full-cast solid rotor with a smooth, non-directional braking surface and a drum-in-hat design for the parking brake.
What are the rotor's key dimensions?
It measures 281 mm outside diameter and 193 mm inside diameter, with a 12 mm nominal thickness, a 10.5 mm discard thickness, 5 lug holes on a 114.3 mm bolt circle, and a 62 mm center hole.
Should I replace the brake pads and rotors together?
Inspecting the pads whenever you service the rotors is good practice, and worn or damaged pads should be replaced. Follow the vehicle service information for the correct procedure.
