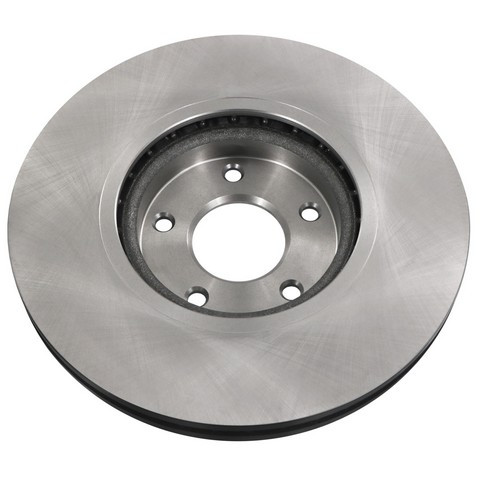

Help keep your front brakes smooth and consistent with the ADVICS Brake Rotor, part number B6F047U, an ultra-premium, high-carbon coated OE-replacement rotor. It fits many vehicles, among them the 2005-2006 Nissan Altima, 2004-2008 Nissan Maxima and 2003-2004 Nissan Murano. See the "Vehicles it fits" section for the full list of applications.
- Vented design: Lets air flow freely and efficiently through the rotor.
- OEM weight, vane count and air gap: Built to these OEM specifications with high-carbon metallurgy to maintain thermal stability. This is designed to reduce the chance of warping and support longer pad and rotor life.
- Corrosion protection: A corrosion protection coating is applied to match OEMs.
- Braking surface: Smooth surface with a non-directional finish.
This front disc brake rotor has these specifications:
- Outside diameter: 319.7 mm (12.587 in)
- Nominal thickness: 28.0 mm (1.102 in)
- Discard thickness: 26.0 mm (1.024 in)
- Overall height: 49.2 mm (1.937 in)
- Center hole: 68 mm
- Lug holes: five, on a 114.3 mm (4.5 in) bolt circle
An ABS tone ring is not included. The rotor is sold individually, and the listed applications use two. Replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Interchange: 120.42075 · 121.42075 · 320.42075F · 604-67051
12042075 · 12142075 · 32042075F · 60467051 · 18A1701 · 31330 · 40011046 · 40206CA000 · 40206ZA500 · D0206ZA500 · BR31330 · BR31341 · BR900718 · BD4208 · 126253 · 900718 · JBR1100 · 980225 · 980225FZN · BD126253
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18A1701, 31330, 40011046, 120.42075, 121.42075, 320.42075F, 40206CA000, 40206ZA500, D0206ZA500, BR31330, BR31341, BR900718, 604-67051, BD4208, B6F047U, 126253, 900718, JBR1100, 980225, 980225FZN, BD126253
Frequently Asked Questions
Are these the right 2005-2006 Nissan Altima rotors?
ADVICS B6F047U is listed as a front brake rotor for the 2005-2006 Nissan Altima. The "Vehicles it fits" section lists the other vehicles it fits.
Is this a 2004-2008 Nissan Maxima brake rotor?
Yes. It is listed as a front brake rotor for the 2004-2008 Nissan Maxima, and it also fits the 2003-2004 Nissan Murano.
What are the rotor's key dimensions?
Outside diameter is 319.7 mm (12.587 in) and nominal thickness is 28.0 mm (1.102 in). Discard thickness is 26.0 mm (1.024 in), and it has a 68 mm center hole and five lug holes on a 114.3 mm (4.5 in) bolt circle.
Do I need to buy two rotors?
It is sold individually, and the listed applications use two. Replacing both front rotors together as a matched pair is recommended for even, balanced braking.
What are signs a brake rotor may need replacing?
Common signs include a pulsating brake pedal, steering-wheel vibration when braking, and deep scoring or grooves. A rotor worn to or below its 26.0 mm (1.024 in) discard thickness also needs replacing.
