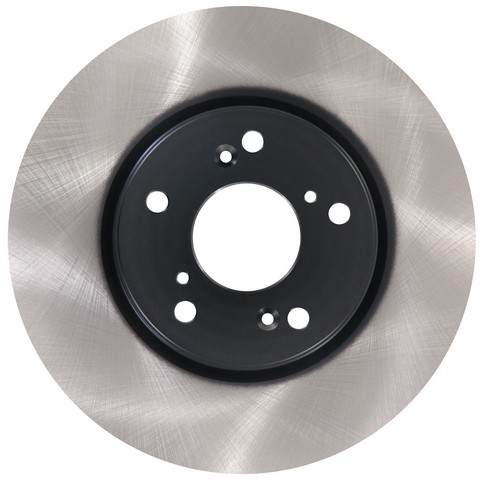

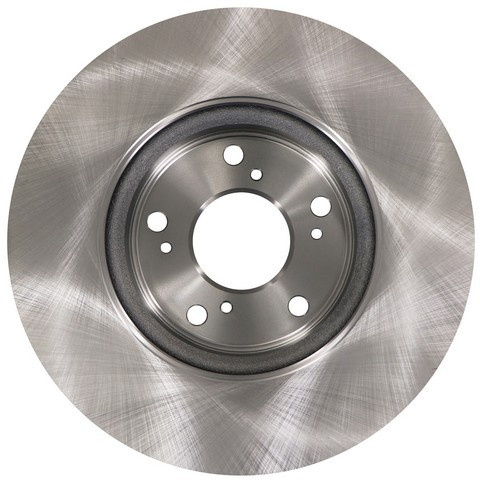

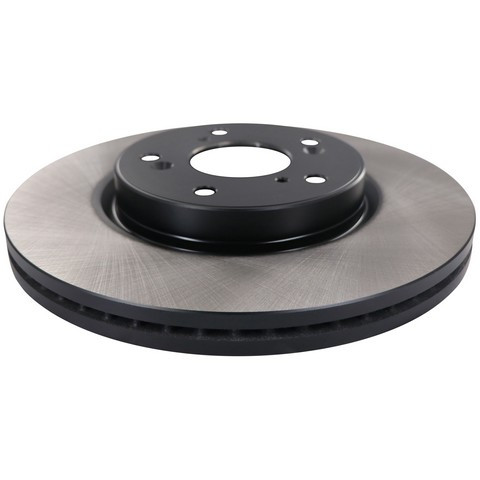

ADVICS C6F098U front brake rotor for the 2016-2017 Honda HR-V is the disc the brake pads clamp against to slow the vehicle. This disc brake rotor belongs to the ADVICS OE Replacement line and is constructed to OEM weight, vane count and air gap.
- High carbon metallurgy for thermal stability and fewer opportunities for warping
- Vented construction that lets air flow freely and efficiently through the rotor
- Corrosion protection coating
- Smooth surface with a non-directional brake surface finish
Quick facts
- Part: ADVICS C6F098U brake rotor
- Also called: disc brake rotor
- Fits: 2016-2017 Honda HR-V
- Position: Front
- Material: High carbon
- Condition: New
A pulsing brake pedal, grooves or a raised lip on the rotor face, or heavy rust can mean a rotor is worn. Worn pads or a sticking caliper can be behind the same vibration, so track down the source before you buy. This listing is one rotor, and the rotor on the other side of the axle is normally replaced at the same time.
Fits
This is a direct-fit OE replacement for the front brakes of the 2016-2017 Honda HR-V.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 293.0 mm (11.535 in)
- Center hole diameter: 64.2 mm
- Bolt circle: 114.3 mm (4.5 in), 5 lug holes
- Overall height: 47.2 mm (1.858 in)
- Nominal thickness: 25.0 mm (0.984 in)
- Discard thickness: 23.0 mm (0.906 in)
Build and materials
- Type: Vented
- Surface: Smooth, non-directional finish
- Material: High carbon
- Coating: Corrosion protection coating
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One front brake rotor. This listing holds one rotor, and the 2016-2017 Honda HR-V takes two. The ABS tone ring is not included.
Interchange: 120.40086 · 320.40086F · 604-59039
31645 · 74032DL · BR901462 · 45251T2JH01 · 45251T7WA02 · 901462 · 981037 · BD180567
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
31645, 74032DL, 120.40086, 320.40086F, BR901462, 604-59039, 45251T2JH01, 45251T7WA02, C6F098U, 901462, 981037, BD180567
Frequently Asked Questions
Does the ADVICS C6F098U front rotor fit the 2016-2017 Honda HR-V?
Yes. ADVICS C6F098U is a front rotor for the 2016-2017 Honda HR-V, with a 293.0 mm outside diameter and 5 lug holes.
Does this front rotor come with the ABS tone ring?
No. The ABS tone ring is not included. This listing is one rotor, and the vehicle takes two.
Are ADVICS brake rotors like this front one vented or solid?
Vented. ADVICS C6F098U has vented construction with a smooth surface, a 25.0 mm nominal thickness and a 47.2 mm overall height.
At what thickness is this rotor due for replacement?
The discard thickness for this front rotor is 23.0 mm (0.906 in), down from a nominal 25.0 mm (0.984 in). A rotor measured at or below 23.0 mm is due for replacement.
Does this rotor have a corrosion protection coating?
Yes. ADVICS C6F098U has a corrosion protection coating, and its high carbon metallurgy is intended to maintain thermal stability and reduce opportunities for warping.
