Front Brake Rotor for 2013-2015 Mazda CX-5 & More - ADVICS E6F118U

$107.99
WARNING:California Proposition 65▾

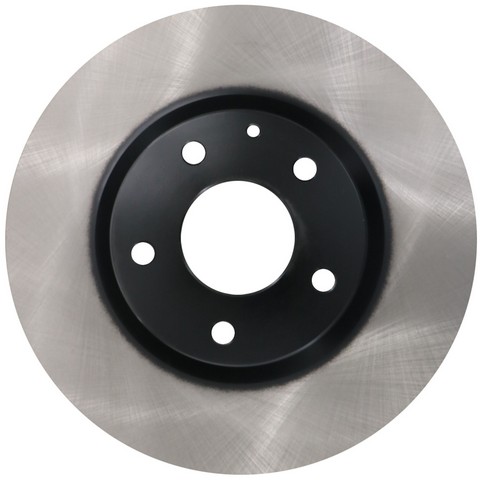

ADVICS Disc Brake Rotor E6F118U

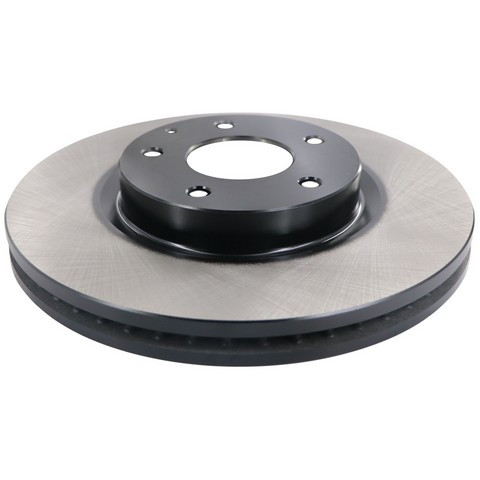

ADVICS Disc Brake Rotor E6F118U - view 2
ADVICS Disc Brake Rotor E6F118U - view 3
ADVICS Disc Brake Rotor E6F118U - view 4
ADVICS Disc Brake Rotor E6F118U
ADVICS Disc Brake Rotor E6F118U - view 2
ADVICS Disc Brake Rotor E6F118U - view 3
ADVICS Disc Brake Rotor E6F118U - view 4

Vehicles this part fits
    Part number: E6F118U
    EAN: 4562372117114
    Condition: New
    Weight: 17.80 LBS
    Item Package Quantity: 1
    $107.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    ADVICS Disc Brake Rotor P/N:E6F118U
    ADVICS Disc Brake Rotor P/N:E6F118U
    $107.99
    $107.99

    ADVICS E6F118U front brake rotor for the 2013-2015 Mazda CX-5 and other vehicles gives the brake pads a smooth, vented surface to grip. ADVICS sells this OE replacement disc brake rotor individually.

    • High carbon material with a vented design that lets air flow freely and efficiently
    • High carbon metallurgy keeps the rotor thermally stable, reducing opportunities for warping
    • Designed for longer pad and rotor life
    • Corrosion protection coating applied

    Quick facts

    • Part: ADVICS E6F118U brake rotor
    • Also called: disc brake rotor
    • Fits: 2013-2015 Mazda CX-5 and other vehicles
    • Position: Front
    • Material: High Carbon
    • Condition: New

    A scored or grooved face, a pulsing brake pedal, or a thickness at or below the discard measurement can mean a rotor is due for replacement. A sticking caliper or worn pads can be behind some of those signs too, so find the cause before buying. This listing is one rotor and the 2013-2015 Mazda CX-5 takes two, so order two and fit them together.

    Fits

    It fits the 2013-2015 Mazda CX-5 and is a brake rotor for the 2014 Mazda 6 as well. The rotor is constructed to OEM weight, vane count and air gap.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Outside diameter: 297.0 mm (11.693 in)
    • Center hole diameter: 68 mm
    • Bolt circle: 114.3 mm (4.5 in), 5 lug holes
    • Overall height: 51.5 mm (2.028 in)
    • Nominal thickness: 28.0 mm (1.102 in)
    • Discard thickness: 26.0 mm (1.024 in)

    Build and materials

    • Type: vented
    • Surface: smooth, non-directional finish
    • Material: high carbon
    • Coating: corrosion protection coating
    • ABS tone ring: not included
    • Condition: new
    • Country of origin: China

    Frequently Asked Questions

    Is this a Mazda 6 brake rotor for the 2014 model year?

    Yes. ADVICS E6F118U is a front brake rotor for the 2014 Mazda 6, and it also fits the 2013-2015 Mazda CX-5.

    Are these Mazda CX-5 brake rotors for 2013-2015 vented or solid?

    Vented. This ADVICS E6F118U front rotor has a smooth surface and measures 297.0 mm (11.693 in) across, with 5 lug holes on a 114.3 mm bolt circle.

    Are ADVICS brake rotors like this one coated?

    Yes. This rotor has a corrosion protection coating, and its high carbon metallurgy is intended to keep it thermally stable and reduce opportunities for warping.

    At what thickness should this front rotor be replaced?

    It measures 28.0 mm (1.102 in) new, and its discard thickness is 26.0 mm (1.024 in). Measure it during a brake service; at or below 26.0 mm it is due for replacement.

    Does this rotor come with an ABS tone ring?

    No. This ADVICS E6F118U rotor does not include an ABS tone ring.
