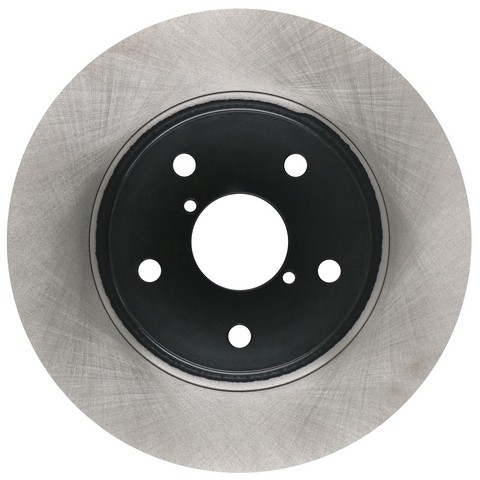

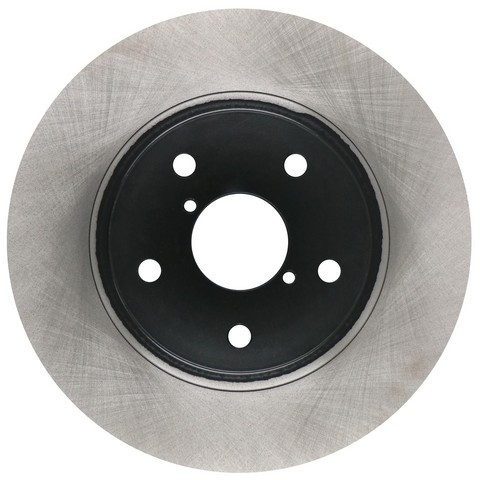

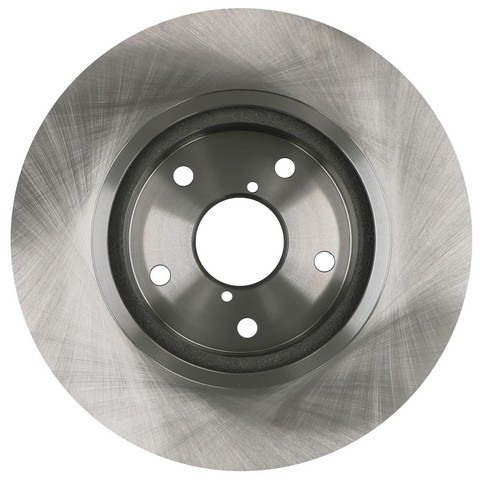

Keep your Subaru Forester brake rotor working smoothly with the ADVICS Disc Brake Rotor F6F504U, a front vented rotor that installs as a direct-fit replacement on the 2019-2024 Subaru Forester [All]. It is built to ADVICS OE specifications so air moves freely and efficiently through the rotor for effective cooling under braking.
- High-carbon metallurgy: Constructed to OEM weight, vane count and air gap using high-carbon metallurgy to help maintain thermal stability, reducing opportunities for warping while supporting longer pad and rotor life.
- Corrosion protection: A corrosion protection coating is applied to match OEMs.
- Vented design: Internal cooling vanes and the air gap help channel heat away from the braking surfaces.
- Key dimensions: 293.5 mm (11.555 in) outside diameter, 24.0 mm (0.945 in) nominal thickness with a 22.0 mm (0.866 in) discard thickness, 58 mm center bore, and a 5-lug 114.3 mm (4.5 in) bolt circle with a smooth, non-directional surface finish.
Sold individually; order 2 to replace both front rotors together as a matched pair for even, balanced braking. An ABS tone ring is not included. Country of origin: China.
Interchange: 26300SJ000
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Does this ADVICS rotor fit my Subaru Forester?
Yes—F6F504U is a front vented rotor cataloged for the 2019-2024 Subaru Forester [All]. Confirm your exact vehicle in the Buyer's Guide tab before ordering.
Is this a front or rear rotor?
It is a front disc brake rotor.
How many rotors should I buy?
The rotors are sold individually. Order 2 to replace both front rotors together as a matched pair for even, balanced braking.
What is the discard thickness?
Nominal thickness is 24.0 mm (0.945 in) and the minimum discard thickness is 22.0 mm (0.866 in). Replace the rotor before it wears below the discard spec.
Does it include an ABS tone ring?
No, an ABS tone ring is not included with this rotor.
