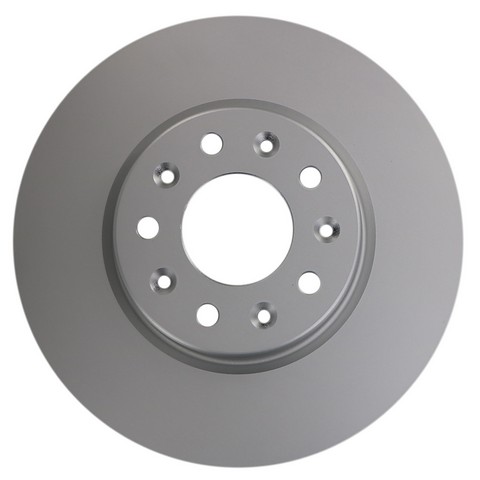

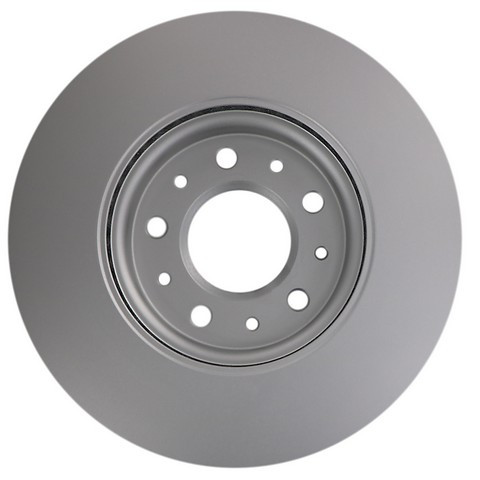

Give your pads a smooth braking surface to clamp against with the ADVICS front brake rotor, part number L6F348U, an OE-replacement vented rotor made with high-carbon metallurgy. It fits many vehicles, among them the 2018-2023 Chevrolet Equinox, 2016-2023 Chevrolet Malibu and 2021-2024 Chevrolet Trailblazer. See the Buyer's Guide tab for the full list.
Specifications: 300.0 mm (11.811 in) outside diameter, 26.0 mm (1.024 in) nominal thickness, 23.0 mm (0.906 in) discard thickness, 45.5 mm (1.791 in) overall height, 70.7 mm center hole, and 5 lug holes on a 115.0 mm (4.528 in) bolt circle. ABS tone ring not included. Country of origin: China.
This rotor is sold individually, and this listing is for one. The listed applications use two front rotors, so replacing both sides together as a matched pair is recommended for even, balanced braking. Signs a rotor may need replacing include a pulsating pedal, shake through the steering wheel under braking, deep grooves, or wear to the discard thickness.
Interchange: 120.62132 · 320.62132F · BR901622-02 · 600-45045 · 604-45045
12062132 · 32062132F · BR90162202 · 60045045 · 60445045 · 18A82000A · YH323929 · 55237 · 72048DL · YH323929P · 13583700 · 13583711 · BR901622 · 13515289 · 13517843 · 13517845 · 13537160 · 13583708 · 901622 · 582000 · 582000FZN · BD180745E
This part cross-references / interchanges with the following part numbers:
Is this the right part for a 2019 Chevy Equinox brake pads and rotors job?
It is a front rotor listed for the 2018-2023 Chevrolet Equinox, including 2019. It is sold individually as a rotor only; brake pads are not included and are sold separately.
What does a disc brake rotor do?
The brake pads clamp against the rotor to slow the wheel. This vented rotor is built to OEM weight, vane count and air gap so air can flow through it as the brakes heat up.
What are the key measurements of ADVICS L6F348U?
300.0 mm (11.811 in) outside diameter, 26.0 mm (1.024 in) nominal thickness, 23.0 mm (0.906 in) discard thickness, 45.5 mm overall height, 70.7 mm center hole and 5 lug holes on a 115.0 mm bolt circle.
Do I need to buy two rotors?
The listed applications use two front rotors, and this listing is for one. Replacing both sides together as a matched pair is recommended for even, balanced braking. The ABS tone ring is not included.
What are signs my rotors may need replacing?
Common signs include a pulsating brake pedal, shake when braking, deep scoring or grooves, or thickness at or below the 23.0 mm (0.906 in) discard spec. Have the brakes inspected to confirm the cause.
