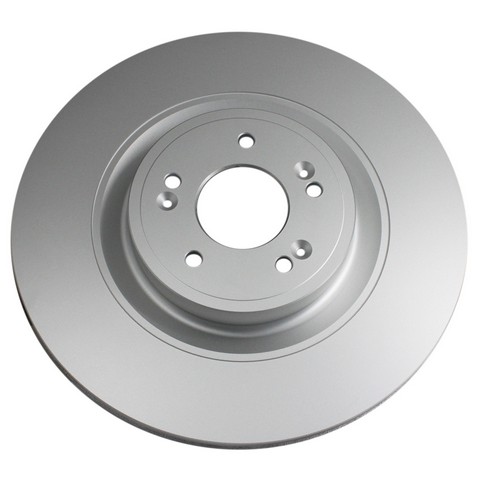

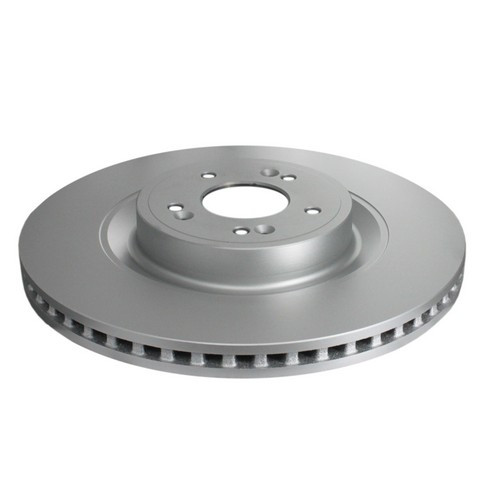

ADVICS R6F332U front brake rotor for the 2018-2020 Genesis G80 V6 3.3L or V8 5.0L gives the brake pads a smooth surface to clamp against and slows the wheel. This vented disc brake rotor is one of the ADVICS brake rotors in the OE Replacement line.
- High carbon metallurgy for thermal stability, which reduces opportunities for warping and supports pad and rotor life
- Vented construction lets air flow freely and efficiently through the rotor
- Corrosion protection coating on the rotor
- Smooth surface with a non-directional finish
Quick facts
- Part: ADVICS R6F332U brake rotor
- Also called: disc brake rotor
- Fits: 2018-2020 Genesis G80 V6 3.3L or V8 5.0L
- Position: Front
- Material: High Carbon
- Condition: New
A pulsing brake pedal, shaking under braking or visible grooves in the rotor face can mean the rotor is worn. A sticking caliper can also make the brakes shudder, so the rotor is not the only possible cause. This listing is one rotor; both front rotors are normally replaced together.
Fits
It fits the 2018-2020 Genesis G80 with the V6 3.3L or the V8 5.0L engine, and the car takes two. Constructed to OEM weight, vane count and air gap, it has a corrosion protection coating applied to match OEMs.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Outside diameter: 360.0 mm (14.173 in)
- Center hole diameter: 69 mm
- Bolt circle: 114.3 mm (4.5 in), 5 lug holes
- Overall height: 56.5 mm (2.224 in)
- Nominal thickness: 30.0 mm (1.181 in)
- Discard thickness: 28.4 mm (1.118 in)
Build and materials
- Type: vented
- Surface: smooth, non-directional finish
- Material: high carbon
- Coating: corrosion protection coating
- ABS tone ring: not included
- Condition: new
- Country of origin: China
Interchange: 120.51062 · 600-03057 · 51712-B1800
70144DL · 982346 · 982346FZN · 6622313
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Does the ADVICS R6F332U front rotor fit the 2018-2020 Genesis G80 V6 3.3L or V8 5.0L?
Yes. ADVICS R6F332U is a front rotor for the 2018-2020 Genesis G80 with either the V6 3.3L or the V8 5.0L engine.
How thick is the ADVICS R6F332U rotor when new, and when should it be discarded?
Nominal thickness is 30.0 mm (1.181 in) and discard thickness is 28.4 mm (1.118 in). Once a measurement reaches the discard figure, the rotor is due for replacement.
Is the 360 mm ADVICS front rotor vented or solid?
It is vented, with a smooth, non-directional surface finish. The material is listed as high carbon, and the outside diameter is 360.0 mm (14.173 in).
Can a pulsing brake pedal mean these front rotors need replacing?
It can. A pulsing pedal, shaking when braking or visible grooves on the rotor face can mean the rotor is worn, and a shop can confirm the cause.
Does the ABS tone ring come with this rotor?
No. The ABS tone ring is not included with ADVICS R6F332U.
