Rear Brake Rotor for 2010-2015 Chevrolet Cruze & More - Advics L6R194U

$76.99

Sold out

ADVICS Disc Brake Rotor L6R194U - view 2

ADVICS Disc Brake Rotor L6R194U - view 3

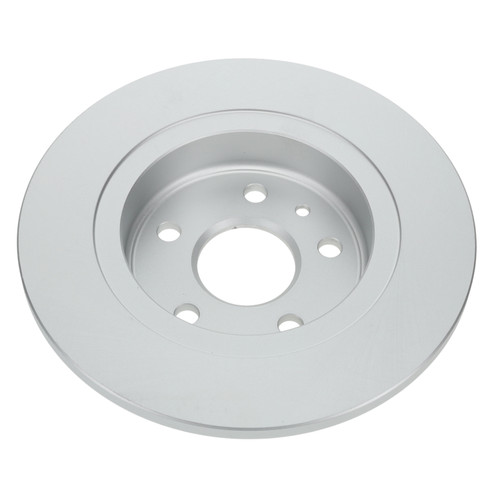

ADVICS Disc Brake Rotor L6R194U - view 4

$76.99

Current Stock:

Out of stock

Have questions?

Ask an Expert

Part number: L6R194U

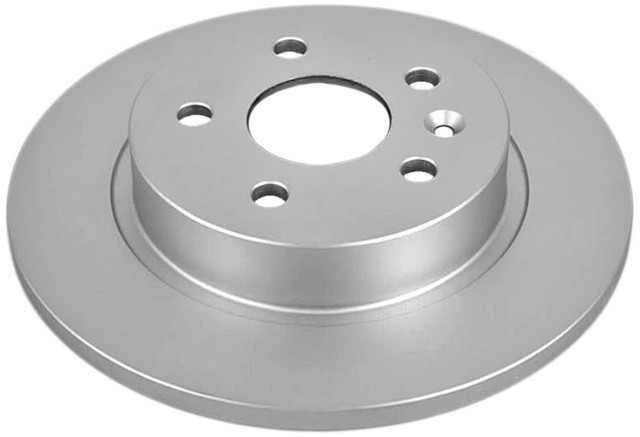

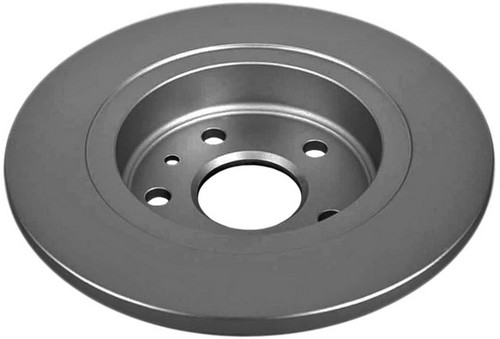

ADVICS Disc Brake Rotor P/N:L6R194U

$76.99

Description

Help keep rear stops smooth and consistent with the ADVICS OE Replacement Brake Rotor, part number L6R194U. This solid rear disc brake rotor is built to OEM weight using high-carbon metallurgy. It fits many vehicles, among them the 2010-2015 Chevrolet Cruze, 2013-2022 Chevrolet Trax and 2013-2017 Chevrolet Sonic. See the "Vehicles it fits" section for the full list.

Built to OEM weight: Uses high-carbon metallurgy designed to maintain thermal stability. This is intended to reduce opportunities for warping and support longer pad and rotor life.
Corrosion-protection coating: Applied to match OEMs.
Smooth, non-directional finish: The braking surface is smooth, with a non-directional finish.
Solid construction: A solid, non-vented rotor for the rear axle of the listed applications.

Specifications: The outside diameter is 267.9 mm (10.547 in). Nominal thickness is 12.0 mm (0.472 in) and discard thickness is 10.0 mm (0.394 in). Overall height is 45.1 mm (1.776 in) and the center hole is 60 mm. It has 5 lug holes on a 105.0 mm (4.134 in) bolt circle. An ABS tone ring is not included.

Sold individually, and this listing is for one rotor. The listed applications use two, so replacing both rear rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is this the right Chevy Cruze brake rotor for a 2010-2015 model?

L6R194U is listed as a rear rotor for the 2010-2015 Chevrolet Cruze. The "Vehicles it fits" section shows every listed application.

Does it also fit the 2013-2022 Chevrolet Trax and 2013-2017 Chevrolet Sonic?

Yes. It is listed as a rear rotor for the 2013-2022 Chevrolet Trax and the 2013-2017 Chevrolet Sonic. The "Vehicles it fits" section shows the other listed vehicles.

What are the rotor's key dimensions?

It measures 267.9 mm (10.547 in) across. Nominal thickness is 12.0 mm and discard thickness is 10.0 mm, with a 60 mm center hole and 5 lug holes on a 105.0 mm bolt circle.

How many rotors come in the package?

One rotor, sold individually. The listed applications use two, so replacing both rear rotors together as a matched pair is recommended. An ABS tone ring is not included.

What are signs a rear rotor may need replacing?

Common signs include a pulsing brake pedal, vibration when braking, deep scoring or grooves, or a rotor worn to or below the 10.0 mm discard thickness.
