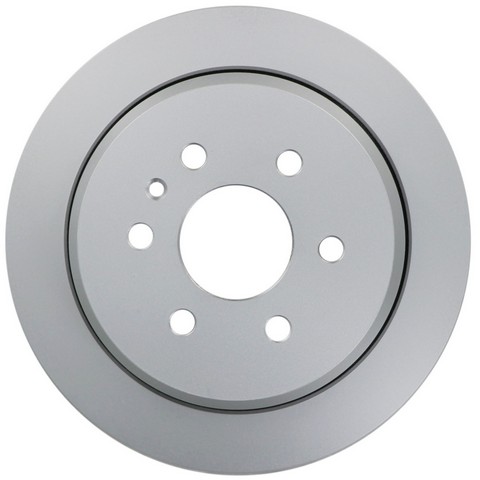

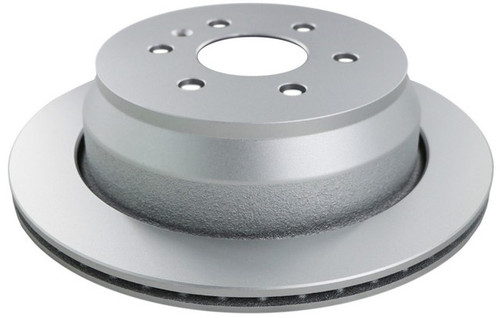

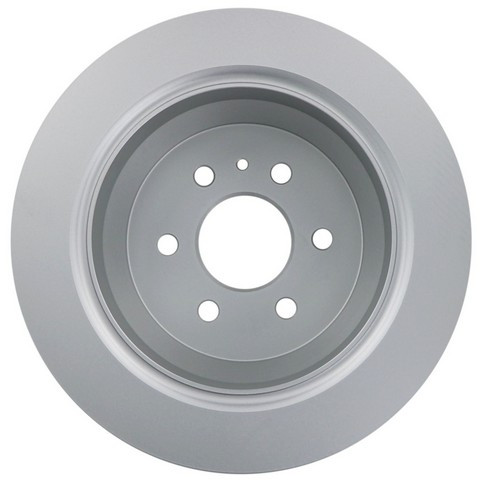

ADVICS L6R359U rear brake rotor for the 2015-2020 Chevrolet Colorado and other vehicles gives the brake pads a surface to clamp against. It is constructed to OEM weight, vane count and air gap.
- High-carbon metallurgy for thermal stability, to reduce opportunities for warping and give longer pad and rotor life
- Vented rotor that lets air flow freely through it
- Corrosion protection coating
- Smooth surface with a non-directional finish
Quick facts
- Part: ADVICS L6R359U brake rotor
- Also called: disc brake rotor
- Fits: 2015-2020 Chevrolet Colorado and other vehicles
- Position: Rear
- Material: High Carbon
- Condition: New
A pulsing pedal, noise or longer stops can point to a worn rotor, though the brake pads or the caliper can be behind them too, so find out which part it is before buying. Rotors are normally replaced as a pair across the axle, but this listing is one rotor; the rear axle takes one on each side.
Fits
This rotor is a direct-fit replacement for the 2015-2020 Chevrolet Colorado and the 2015-2020 GMC Canyon.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 324.0 mm (12.756 in)
- Center hole diameter: 70.9 mm
- Bolt circle diameter: 120.0 mm (4.724 in), 6 lug holes
- Overall height: 80.0 mm (3.15 in)
- Nominal thickness: 18.0 mm (0.709 in)
- Discard thickness: 16.0 mm (0.63 in)
Build and materials
- Type: Vented
- Surface: Smooth, non-directional finish
- Material: High carbon
- Coating: Corrosion protection coating
- ABS tone ring: not included
- Condition: New
- Country of origin: China
Interchange: 1407-528580 · 120.66079 · 121.66079 · 320.66079F · BR901414-02 · 600-48063 · 604-48063
18A82039 · YH528580 · 55244 · 72035DL · PRT6382 · YH528580P · BR901414 · 23387173 · 94778644 · 901414 · AR82189 · AR82189XPR · 582039 · 582039FZN · BD180688 · BD180688E
This part cross-references / interchanges with the following part numbers:
18A82039, YH528580, 55244, 72035DL, 1407-528580, PRT6382, YH528580P, 120.66079, 121.66079, 320.66079F, BR901414, BR901414-02, 600-48063, 604-48063, 23387173, 94778644, L6R359U, 901414, AR82189, AR82189XPR, 582039, 582039FZN, BD180688, BD180688E
Frequently Asked Questions
Is this the right brake rotor for a 2015-2020 Chevy Colorado?
Yes. ADVICS L6R359U is a rear brake rotor listed for the 2015-2020 Chevrolet Colorado, with one rotor on each side of the rear axle.
Is this rear rotor a GMC Canyon brake rotor for the 2015-2020 model years?
Yes. ADVICS L6R359U also fits the 2015-2020 GMC Canyon at the rear axle. The listing is one rotor, and the other side takes its own.
Are ADVICS brake rotors like this one vented or solid?
The ADVICS L6R359U rear rotor is vented, with a smooth surface and a non-directional finish. It is made of high carbon material and has a corrosion protection coating.
Does the ABS tone ring come with this rear rotor?
No. The ABS tone ring is not included with the ADVICS L6R359U rear rotor.
What is the discard thickness of this disc brake rotor?
The rotor is 18.0 mm (0.709 in) thick new, and its discard thickness is 16.0 mm (0.63 in). A rotor measured at or below 16.0 mm is due for replacement.
