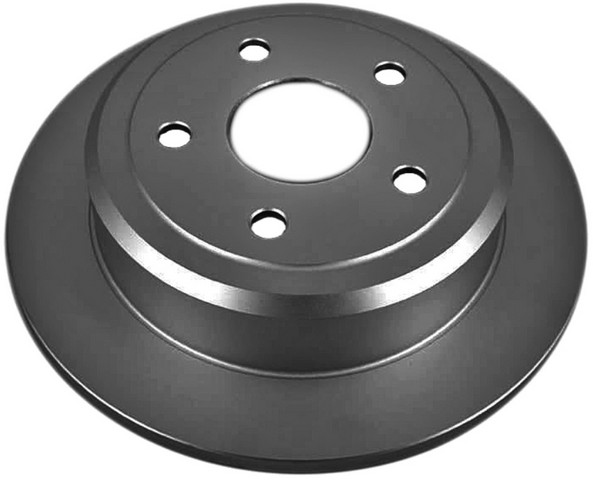

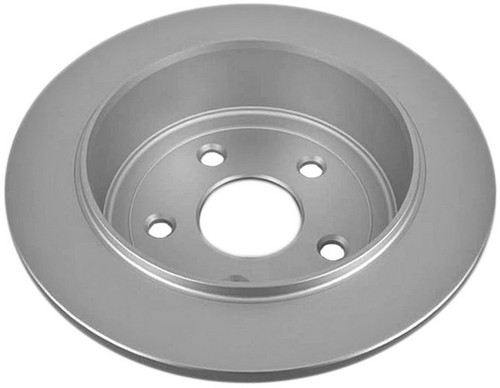

ADVICS P6R217U rear brake rotor for the 2007-2018 Jeep Wrangler and other vehicles gives the brake pads a disc to clamp against when you slow the wheel. Also called a disc brake rotor, it is a solid rotor with a smooth surface, made with high carbon metallurgy.
- High carbon metallurgy to maintain thermal stability and reduce opportunities for warping
- Made for longer pad and rotor life
- Corrosion protection coating on the rotor
- Smooth, non-directional surface finish
- Solid construction with a 316.0 mm outside diameter and 12.0 mm nominal thickness
Quick facts
- Part: ADVICS P6R217U brake rotor
- Also called: disc brake rotor
- Fits: 2007-2018 Jeep Wrangler and other vehicles
- Position: Rear
- Material: High carbon
- Condition: New
Pedal pulsation, grooves, cracks or a rotor worn down to the 10.4 mm discard thickness can mean a rear rotor needs replacing. At a brake service, with the engine off and the wheel removed, measure the thickness and look over the surface first, since worn pads or a sticking caliper can cause similar signs. The rear axle takes two rotors, one on each side. This listing is one rotor, so order two and fit them together.
Fits
This rear rotor fits the 2007-2018 Jeep Wrangler and the 2018 Jeep Wrangler JK. It is constructed to OEM weight, and its corrosion protection coating is applied to match OEMs.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 2
- Outside diameter: 316.0 mm (12.441 in)
- Center hole diameter: 72 mm
- Bolt circle: 127.0 mm (5.0 in), 5 lug holes
- Overall height: 76.8 mm (3.024 in)
- Nominal thickness: 12.0 mm (0.472 in)
- Discard thickness: 10.4 mm (0.409 in)
Build and materials
- Type: solid
- Surface: smooth, non-directional finish
- Material: high carbon
- Coating: corrosion protection coating
- ABS tone ring: not included
- Condition: new
- Country of origin: China
In the box
One rear brake rotor. The ABS tone ring is not included.
Frequently Asked Questions
Will this Jeep Wrangler brake rotor fit the 2018 Jeep Wrangler JK?
Yes. ADVICS P6R217U is a rear rotor that fits the 2018 Jeep Wrangler JK, as well as the 2007-2018 Jeep Wrangler.
Are brake pads and rotors for the 2007-2018 Jeep Wrangler both in this listing?
No. This listing is one rear rotor without brake pads, and the ABS tone ring is not included either.
Are ADVICS brake rotors like this P6R217U solid or vented?
This ADVICS P6R217U is a solid rotor with a smooth, non-directional surface, a 316.0 mm outside diameter and a 12.0 mm nominal thickness.
At what thickness should this rear rotor be replaced?
Replace this rear rotor when it wears to the 10.4 mm (0.409 in) discard thickness. A new one measures 12.0 mm (0.472 in).
What bolt circle and center hole does this rear rotor have?
ADVICS P6R217U has 5 lug holes on a 127.0 mm (5.0 in) bolt circle and a 72 mm center hole.
