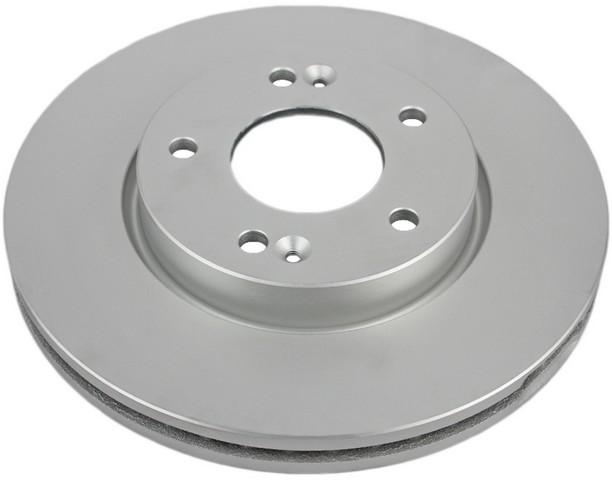

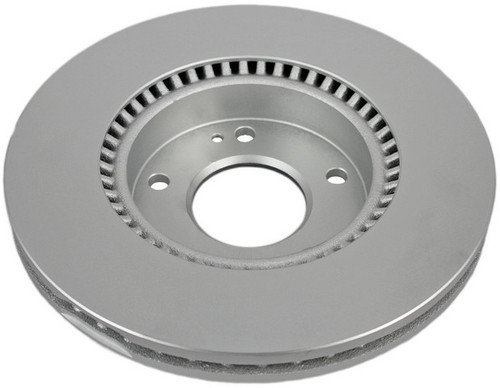

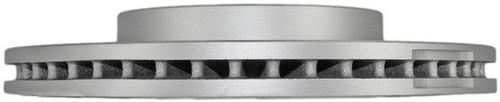

Give your brakes a fresh, smooth braking surface with the ADVICS front brake rotor R6F223U, an OE replacement vented rotor made with high-carbon metallurgy. It fits many vehicles, among them the 2009-2012 Hyundai Elantra, 2006-2010 Hyundai Sonata and 2006-2010 Kia Optima. See the Buyer's Guide tab for the full list.
Specifications: outside diameter 280.0 mm (11.024 in), nominal thickness 26.0 mm (1.024 in), discard thickness 24.4 mm (0.961 in), overall height 47.2 mm (1.858 in), center hole diameter 69 mm, and a 114.3 mm (4.5 in) bolt circle with 5 lug holes. An ABS tone ring is not included.
This disc brake rotor is sold individually, and this listing is for one. The listed applications use two front rotors, so we recommend replacing both sides together as a matched pair for even, balanced braking. Country of origin: China.
Is this one of the right 2009-2012 Hyundai Elantra rotors?
It is listed as a front rotor for the 2009-2012 Hyundai Elantra. Check the Buyer's Guide tab to confirm your exact vehicle before ordering.
Does this also work as a 2006-2010 Kia Optima brake rotor?
Yes. It is listed as a front rotor for the 2006-2010 Kia Optima and for the 2006-2010 Hyundai Sonata.
What are the rotor's key dimensions?
It measures 280.0 mm (11.024 in) across and is 26.0 mm (1.024 in) thick when new, with a 24.4 mm (0.961 in) discard thickness. It has 5 lug holes on a 114.3 mm (4.5 in) bolt circle.
How many rotors come in the box?
One rotor is included, without an ABS tone ring. The listed applications use two front rotors, so replacing both sides together is recommended for even, balanced braking.
What are signs a brake rotor may need replacing?
Signs include a pulsating brake pedal, steering-wheel shake when braking, deep scoring or grooves, and a rotor worn to its 24.4 mm (0.961 in) discard thickness.
