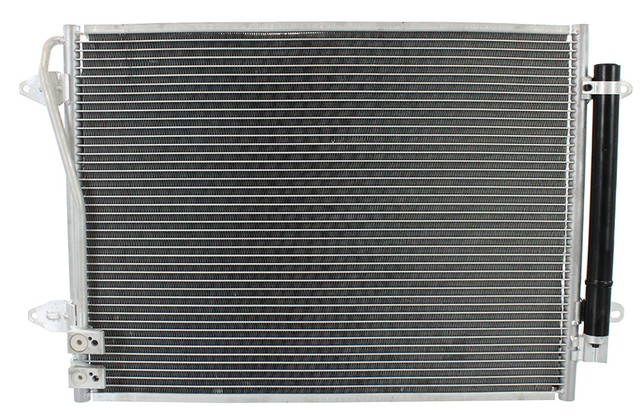

Agility Autoparts 7010037 A/C condenser for the 2016-2022 Volkswagen Passat cools hot refrigerant from the compressor so it turns back into a liquid. This 2016-2022 VW Passat condenser has an aluminum core and includes the receiver/drier.
- Parallel flow core design
- Mini-micro extruded tube technology for increased thermal performance
- Block connection inlet and outlet fittings
- 100% leak tested
Quick facts
- Part: Agility Autoparts 7010037 A/C condenser
- Fits: 2016-2022 Volkswagen Passat
- Material: Aluminum
- Condition: New
Weaker cooling, oily residue on the condenser or bent fins can mean it is leaking or damaged. A low refrigerant charge, a failing compressor or a clogged expansion device can be behind weak cooling too, so find the cause before buying a condenser.
Fits
It is a direct-fit 2016-2022 VW Passat condenser replacement.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core height: 16.375 in
- Core length: 22.375 in
- Core thickness: 0.625 in
- Inlet fitting: block connection
- Outlet fitting: block connection
Build and materials
- Core type: parallel flow
- Core material: aluminum
- Receiver/drier: included
- Condition: new
- Country of origin: China
In the box
One A/C condenser with receiver/drier. This listing is one condenser, and the 2016-2022 Volkswagen Passat takes one.
Installation notes
- Comes ready to install right out of the box.
Interchange: 31-30037
30037 · AUC30037 · 561820411C
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
30037, AUC30037, 31-30037, 561820411C
Frequently Asked Questions
Is this the right VW Passat ac condenser for the 2016-2022 model years?
Yes. Agility Autoparts 7010037 is a direct-fit A/C condenser for the 2016-2022 Volkswagen Passat.
Does the Agility 7010037 condenser come with a receiver/drier?
Yes. Agility Autoparts 7010037 includes the receiver/drier. This listing is one condenser, and the vehicle takes one.
What size is the core on this A/C condenser?
The aluminum parallel flow core measures 22.375 in long, 16.375 in high and 0.625 in thick.
Is the 7010037 condenser leak tested?
Yes. Agility Autoparts condensers, including the 7010037, are 100% leak tested.
What type of fittings does this A/C condenser have?
Both the inlet and the outlet use block connection fittings.
