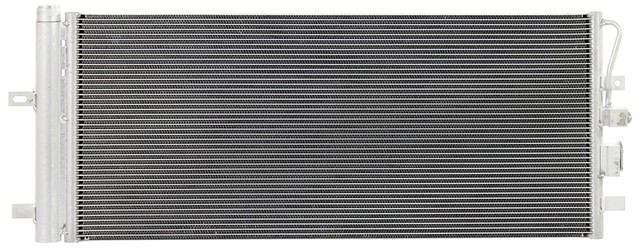

Shed heat from the refrigerant and keep your A/C blowing cold with the Agility Auto Parts A/C Condenser 7010049. It drops in as a direct-fit replacement for the 2017-2020 Lincoln MKZ [All], mounting ahead of the radiator where it condenses high-pressure refrigerant vapor back into a liquid so the system can absorb heat from the cabin. If your original condenser is leaking, restricted, or damaged, this is the mechanical replacement.
- Parallel-flow aluminum core: a parallel-flow design with an aluminum core, measuring 26.500 in long, 12.000 in high, and 0.625 in thick.
- Block connection fittings: block-connection inlet and outlet fittings.
- Includes receiver/drier: ships with the receiver/drier so you can service the moisture-removal component at the same time.
- Built to standard: engineered under ISO TS16949 quality systems, 100% leak tested, and certified to meet or exceed OE specifications for a drop-in fit.
Note: this condenser cannot be properly flushed, so replace it rather than attempting to clean it if the system is contaminated. Part finish and color may vary. Country of origin: China.
Interchange: 31-30049 · 7-30049
30049 · HS7Z19712A · AUC30049 · 3130049 · 730049
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What vehicle does this condenser fit?
It is a direct-fit replacement for the 2017-2020 Lincoln MKZ [All]. Confirm your specific vehicle against the Buyer's Guide before ordering.
Does it include the receiver/drier?
Yes. Per the catalog, this condenser includes the receiver/drier, so the moisture-removal component can be serviced along with the condenser.
What is the core made of and what type is it?
It uses an aluminum core with a parallel-flow design, with block-connection inlet and outlet fittings.
Can this condenser be flushed if the system is contaminated?
No. The manufacturer notes this condenser cannot be properly flushed, so it should be replaced rather than cleaned if contamination is present.
What part numbers does this condenser interchange with?
It cross-references 31-30049, 7-30049, 30049, HS7Z19712A, AUC30049, plus the compact forms 3130049 and 730049.
